Product Model

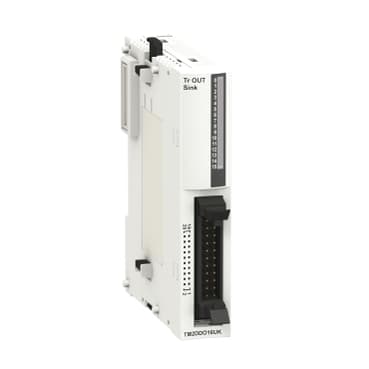

TM2DDO16UK
Key Features
- 1The TM2DDO16UK offers 16 discrete outputs, each capable of handling 24V transistor logic.
- 2Ensures reliable operation with a response time of 300 µs from state 0 to state 1 and 300 µs from state 1 to state 0.
- 3Compact design with a weight of 0.07 kg, making it easy to integrate into DIN rail systems.
- 4Compatible with Twido Advantys OTB and other Modicon M238 logic controllers, enhancing system flexibility.
- 5Part of Schneider Electric's commitment to sustainability, with a focus on recyclability and reduced environmental impact.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete output module |
| Discrete output number | 16 | Discrete output type | Transistor |
| Discrete output voltage | 24 V | Discrete output logic | Sink |
| Discrete output current | 0.1 A | Range Compatibility | Twido<br />Advantys OTB |
| Output voltage limits | 20.4...28.8 V | Current per channel | 0.12 A |
| Maximum current per output common | 1 A | Number of common point | 1 |
| Response time | 300 µs from state 0 to state 1<br />300 µs from state 1 to state 0 | [Ures] residual voltage | 1 V at state 1 |
| Maximum tungsten load | 8 W | Short-circuit protection | Without |
| Overload protection | Without | Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute | Current consumption | 10 mA 5 V DC at state 1 for all output<br />40 mA 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks | Electrical connection | 1 connector HE10 |
| Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.15 lb(US) (0.07 kg) |
| Depth | 3.2 in (81.3 mm) | Height | 3.5 in (90 mm) |
| Width | 0.8 in (21.4 mm) |
Specifications may be subject to change without notice
