Product Model

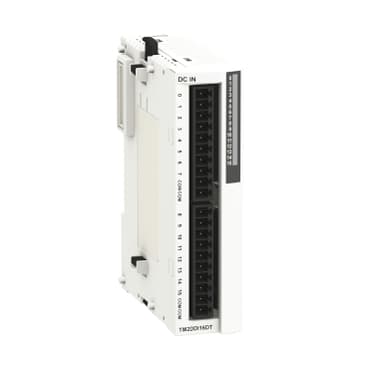

TM2DDI16DT
Key Features
- 116 Discrete Inputs: Supports up to 16 digital inputs for precise control.
- 224V DC Operation: Compatible with 24V DC voltage, ensuring reliable operation.
- 3Fast Response Time: Responds in 4 ms at both state 0 and state 1 for quick signal processing.
- 4Isolation and Safety: Provides 500V isolation between channels and internal logic for enhanced safety.
- 5DIN Rail Mounting: Easy installation on 35 mm symmetrical DIN rail for space-efficient setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | I/O expansion module |
| Discrete input number | 16 | Discrete input voltage | 24 V |
| Discrete input voltage type | DC | Range Compatibility | Twido<br />Advantys OTB |
| input voltage limits | 20.4...28.8 V | Discrete input logic | Sink or source |
| Discrete input current | 7 mA | input impedance | 3.4 kOhm |
| Number of common point | 1 | Response time | 4 ms at state 0<br />4 ms at state 1 |
| Isolation between channels | None | Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 40 mA 5 V DC at state 1 for all input | Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block | Mounting Support | 35 mm symmetrical DIN rail |
| Net Weight | 0.143 lb(US) (0.065 kg) | Depth | 3.3 in (84.6 mm) |
| Height | 3.5 in (90 mm) | Width | 0.9 in (23.5 mm) |
Specifications may be subject to change without notice
