Product Model

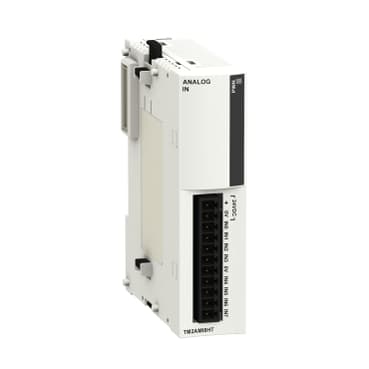

TM2AMI8HT

Manufacturer

schneider

Key Features

110-bit resolution and +/- 0.2% measurement error ensure accurate data acquisition.
2Compatible with both voltage (0-10 V) and current (4-20 mA) sensors for diverse industrial applications.
3Withstands continuous overloads of up to 40 mA for current inputs and 13 V for voltage inputs, ensuring reliable operation.
4Removable screw terminal blocks facilitate quick and easy installation and maintenance.
5Each analog input channel has a sampling duration of 160 ms for rapid data capture in dynamic processes.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon M238 logic controller	Product or Component Type	I/O expansion module
Analogue input number	8	Analogue input type	current 4...20 mA non differential<br /> voltage 0...10 V non differential
Cross talk	<= 1 LSB	Range Compatibility	Twido<br />Advantys OTB
Analogue input resolution	10 bits	LSB value	19.5 µA current<br />9.7 mV voltage
Permissible continuous overload	40 mA current<br />13 V voltage	Input impedance	>= 10 kOhm voltage<br />470 Ohm current
Sampling duration	160 ms	Acquisition period	160 ms per channel + 1 controller cycle time
Measurement error	+/- 0.2 % of full scale 25 °C	Temperature coefficient	+/-0.01 %FS/°C
Repeat accuracy	+/- 0.4 %FS	Non-linearity	+/- 0.002 %FS
Total error	+/-1 %FS	Type of Cable	Shielded cable
Insulation between channel and internal logic	Photocoupler	Supply	External supply
[Us] rated supply voltage	24 V DC	Supply voltage limits	20.4…28.8 V
Electrical connection	1 removable screw terminal block power supply<br />1 removable screw terminal block sensors	Current consumption	45 mA 24 V DC external<br />60 mA 5 V DC internal
Net Weight	0.187 lb(US) (0.085 kg)	Dielectric strength	2500 V between the I/O and internal logic
Width	0.9 in (23.5 mm)	Depth	2.8 in (70 mm)
Height	3.5 in (90 mm)

Specifications may be subject to change without notice
