Product Model

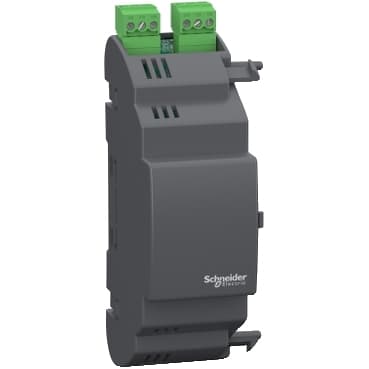

TM171AMB
Key Features
- 1High-quality, durable construction for long-lasting performance.
- 2Compact design for easy integration into various industrial applications.
- 3Advanced thermal management for optimal heat dissipation.
- 4Meets stringent safety standards for secure operation.
- 5Compatible with a wide range of industrial power systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M171 | Product or Component Type | Communication module |
| communication port protocol | Modbus RTU<br />RS485 | Integrated connection type | RS485 wire crimp - twisted pair |
| Adjustment | Pitch 3.81 mm | Electrical connection | removable screw terminal block |
| Physical interface | 90° insertion - 0.004 in² (2.5 mm²) cable | Supply | Via base board EVD/EVC |
| Product Compatibility | Logic controller M172 performance<br />Logic controller M171 performance | Net Weight | 0.170 lb(US) (0.077 kg) |
| Product Certifications | EAC<br />CSA<br />CE<br />cURus | marking | CE |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
| Ambient Air Temperature for Storage | -4…185 °F (-20…85 °C) | Relative Humidity | 10…90 % without condensation |
Specifications may be subject to change without notice
