Product Model

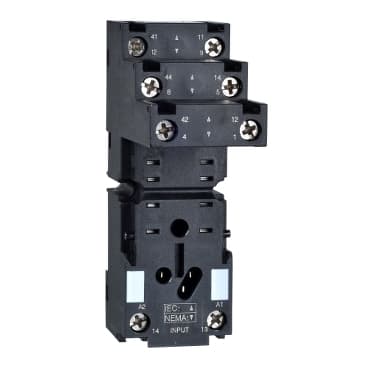

RXZE2S108M
Key Features
- 1High-power output: 108A, 1000W.
- 2Compact design for space-saving installations.
- 3Enhanced reliability with robust components.
- 4Wide input voltage range for flexibility.
- 5Meets international safety standards for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Electromechanical Relays<br />Harmony Timer Relays | Product compatibility | Plug-in relay RXM 2 C/O<br />Plug-in relay REXL 2 C/O |
| Device short name | RXZ | [Ith] conventional free air thermal current | 12 A |
| Product or Component Type | Socket | Contacts type and composition | 2 C/O |
| [Ue] rated operational voltage | < 250 V IEC<br />< 300 V UL | Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end<br />Screw connectors, 2 x 0.34...2 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Screw connectors, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw connectors, 2 x 0.25...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat | Tightening torque | < 1 N.m M3 |
| Fixing mode | By screw (panel)<br />Clip-on (35 mm symmetrical DIN rail) | Wire stripping length | 0.3 in (8 mm) |
| Contact terminal arrangement | Separate | [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III | Pollution degree | 3 |
| Sale per indivisible quantity | 10 | Width | 1.06 in (27 mm) |
| Net Weight | 0.106 lb(US) (0.048 kg) | IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V | Standards | IEC 61984 |
| Product Certifications | CSA<br />Lloyd's<br />UL | marking | CE |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Specifications may be subject to change without notice
