Product Model

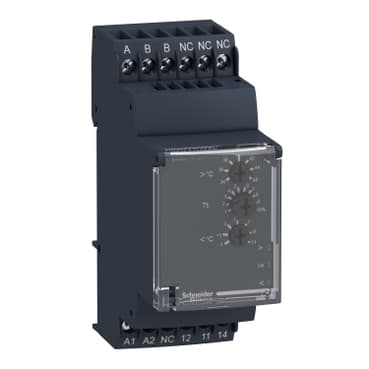

RM35ATL0MW
Key Features
- 1Monitors temperature with +/- 2°C measurement accuracy.
- 2Ideal for elevator machine rooms and 3-phase supplies.
- 3Easy installation on DIN rail with 35mm width.
- 4Self-extinguishing plastic housing for enhanced durability.
- 5Meets IEC 60255-6 and EN 60255-6 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Control Relays | Relay Type | Temperature control relays |
| Product or Component Type | Elevator machine room temperature control relay | Product Specific Application | For elevator machine rooms and 3-phase supplies |
| Relay name | RM35AT | Relay monitored parameters | Undertemperature: -1...11°C<br />Overtemperature: 34...46°C |
| Time delay range | 0.1...10 s adjustable 0...10 % of the full scale value) | Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA 5 V DC | Maximum power consumption in VA | 3.5 VA AC |
| Utilisation category | AC-12 IEC 60947-5-1<br />AC-13 IEC 60947-5-1<br />AC-14 IEC 60947-5-1<br />AC-15 IEC 60947-5-1<br />DC-12 IEC 60947-5-1<br />DC-13 IEC 60947-5-1<br />DC-14 IEC 60947-5-1 | time delay | Adjustable 1...10 s Tt- time delay upon fault |
| Measurement range | +/- 1...46 °C | Reset time | 8 s |
| Maximum switching voltage | 250 V AC/DC | [Us] rated supply voltage | 24...240 V AC/DC |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered | Supply voltage limits | 20.4…264 V AC<br />21.6…264 V DC |
| Maximum power consumption in W | 0.6 W DC | Resistance across terminals | 1.33 kOhm temperature |
| Width | 1.4 in (35 mm) | Output contacts | 1 C/O |
| Contacts material | Cadmium free | Nominal output current | 5 A |
| delay at power up | 0.2 s | Measurement accuracy | +/- 2 °C |
| Response time | <= 3.5 s + Tt (in case of temperature fault)<br /><= 3.5 s (on disappearance of fault) | Temperature probe type | Pt 100 - 3-wire |
| Installed device | Pt 100 probe cable length <= 10 m | marking | CE : EMC 89/336/EEC<br />CE : 73/23/EEC |
| Overvoltage category | III IEC 60664-1 | Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5<br />> 500 MOhm 500 V DC between measurement and relay output IEC 60664-1<br />> 1 MOhm 500 V DC between supply and measurement IEC 60255-5<br />> 500 MOhm 500 V DC between supply and relay output IEC 60664-1<br />> 500 MOhm 500 V DC between measurement and relay output IEC 60255-5<br />> 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V IEC 60664-1 | operating voltage tolerance | - 10 % + 10 % Un DC<br />- 15 % + 10 % Un AC |
| Supply frequency | 50/60 Hz +/- 10 % | Insulation | Galvanic insulation between supply and measurement |
| Operating position | Any position without derating | Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end<br />Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end<br />Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 | Housing material | Self-extinguishing plastic |
| local signalling | 1 LED Green power ON<br />1 LED Yellow correct temperature (high R1)<br />1 LED Yellow correct temperature (low R2) | Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles | Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load | Control Type | Without test button |
| Immunity to microbreaks | 10 ms | Electromagnetic compatibility | Emission standard for industrial environments IEC 61000-6-4<br />Emission standard for residential, commercial and light-industrial environments IEC 61000-6-3<br />Immunity for industrial environments NF EN/IEC 61000-6-2 |
| Standards | IEC 60255-6<br />NF EN 60255-6 | Product Certifications | GOST<br />GL<br />C-tick<br />UL<br />CSA |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -4…122 °F (-20…50 °C) |
| Vibration resistance | 0.35 mm 5…57.6 Hz)IEC 60068-2-6/IEC 60255-21-1<br />1 gn 57.6…150 Hz)IEC 60068-2-6/IEC 60255-21-1 | Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| IP degree of protection | IP20 IEC 60529 terminals)<br />IP30 IEC 60529 casing) | Pollution degree | 3 IEC 60664-1 |
| Dielectric test voltage | 2 kV AC 50 Hz, 1 min | Non-dissipating shock wave | 4 kV |
Specifications may be subject to change without notice
