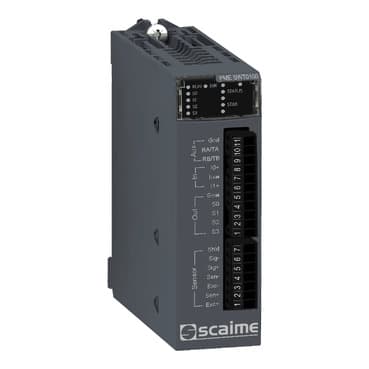

schneider PMESWT0100

Key Features

  • 1High-Resolution Weighing: 1M points resolution for precise weight measurements.
  • 2Ethernet Connectivity: Seamlessly integrates with Modicon X80 systems via Ethernet.
  • 3Durable Design: Compact 6 × 4 × 8 inches dimensions, weighing 2 lbs.
  • 4Versatile Outputs: 2 x dosing outputs and 2 x threshold monitoring outputs.
  • 5Easy Configuration: Compatible with EcoStruxure Control Expert and Unity Pro for straightforward setup.
Product Details
PMESWT0100
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Weighing transmitter module
Product Compatibility
BMEXBP... backplane<br />Head module BMECRA31210<br />BMEP58... processor
Power consumption in W
3.5 W
Number of measurement input
1
Input voltage
5 V DC
Resolution
24 bits internal<br />1000000 points user factory calibrated 500000 at 2 mV/V
Measuring rate
6...400 measurements per second internal<br />100 measurements per second external
Output Type
Reflex digital output
Discrete output number
4 positive logic (source) total<br />2 for dosing<br />2 for threshold monitoring
Discrete output voltage
<= 55 V DC
Nominal output current
400 mA
Response Time
2 ms
Discrete input number
2 positive logic for weighing functions
Voltage state 0 guaranteed
0...3 V DC
Voltage state 1 guaranteed
9...28 V DC
Discrete input current
20 mA 24 V
Status LED
1 LED (Green) module operating (RUN)<br />1 LED (Red) module error (ERR)<br />1 LED (Red) external fault (I/O)<br />1 LED (Green) communication (COM)<br />1 LED (Yellow) test mode (TEST)<br />1 LED (Green) calibration (CAL)<br />1 LED (Red) converter error (FAULT)<br />1 LED (Red) memory corruption (MEM ERR)<br />1 LED (Green) digital output status (S0)<br />1 LED (Green) digital output status (S1)
Net Weight
0.514 lb(US) (0.233 kg)
