Product Model

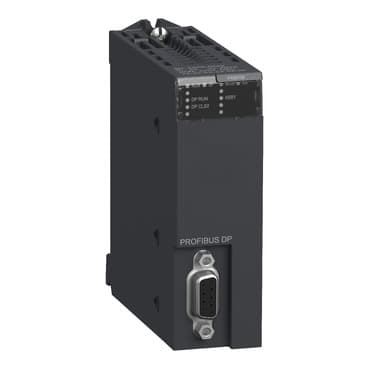

PMEPXM0100
Key Features
- 1Connect multiple PMEPXM0100 modules on the same Profibus network for enhanced scalability and flexibility.
- 2Designed with a robust DB9 connector and 1500V isolation voltage for reliable data transmission and protection.
- 3Part of Schneider Electric's Green Premium products, ensuring compliance with latest regulations and transparency on environmental impacts.
- 4Compatible with Modicon M580 and other Modicon X80 I/Os, making it a versatile solution for various industrial automation needs.
- 5Supports transmission rates up to 12 Mbit/s over 100 meters and 1.5 Mbit/s over 200 meters, ensuring efficient data exchange.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Profibus communication module |
| Range Compatibility | Modicon M580 | Physical interface | DB9 connector |
| Bus type | Profibus DP | Transmission support medium | Profibus DP twisted shielded pairs cable |
| Transmission rate | 9.6 kbit/s, 3937.008 ft (1200 m)<br />19.2 kbit/s, 3937.008 ft (1200 m)<br />93.75 kbit/s, 3937.008 ft (1200 m)<br />187.5 kbit/s, 3280.8 ft (1000 m)<br />500 kbit/s, 1312.3 ft (400 m)<br />1.5 Mbit/s, 656.2 ft (200 m)<br />3 Mbit/s, 328.08 ft (100 m)<br />12 Mbit/s, 328.08 ft (100 m) | Number of server device(s) | 125 |
| Communication service | Implicit exchange of process data | Integrated connection type | Profibus DP - 1 SUB-D 9-pin female |
| [Us] rated supply voltage | 24 V DC internal power supply via rack | Current consumption | 43 mA 24 V typical<br />70 mA 24 V maximum |
| Power consumption in W | 1040 mW 24 V typical<br />1690 mW 24 V maximum | Isolation voltage | 1500 V 1 min 50/60 Hz |
| Module format | Standard | Net Weight | 0.595 lb(US) (0.270 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 10…95 % | Operating altitude | <= 6561.68 ft (2000 m) |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
