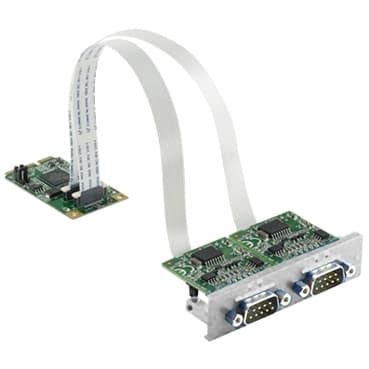

Product Model
HMIYMINSL24851
Key Features
- 1Designed for industrial applications, ensuring consistent performance and minimal downtime.
- 22x RS422/485 isolated interfaces for secure and reliable data transmission.
- 3Mini PCIe form factor, ideal for space-constrained environments.
- 4Supports multiple communication protocols, enhancing system integration capabilities.
- 5Built to withstand harsh industrial conditions, ensuring long-lasting operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Serial line interface |
| accessory / separate part category | Connection accessory | Accessory / separate part destination | Harmony iPC |
| Integrated connection type | Mini PCIe full-size 2 female SUB-D 9 RS422/RS485 50 bit/s...921.6 kbit/s 6.6 ft (2 m) | Input current | 400 mA 3.3 V DC |
| Range Compatibility | Harmony iPC | Width | 3.0 in (76 mm) |
| Height | 3.2 in (81 mm) | Depth | 1.5 in (38.2 mm) |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…95 % non-condensing |
Specifications may be subject to change without notice
