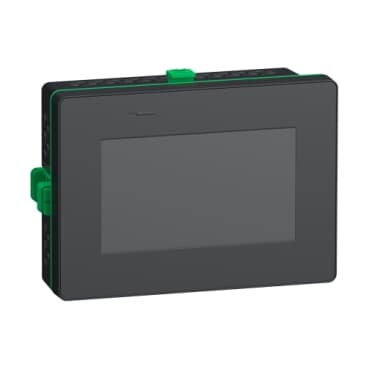

HMISTM6200FW

Manufacturer

schneider

Key Features

1High-resolution 4.3" TFT display with 480x272 pixels and 16M colors for clear visibility.
2Multi-communication ports including RS-232C, RS-485, Ethernet TCP/IP, and USB for seamless connectivity.
3Robust security features with EcoStruxure Secure Connect Advisor for secure remote maintenance.
4User-friendly interface powered by EcoStruxure Operator Terminal Expert software for intuitive operation.
5Durable design with IP65 rating and NEMA 4X protection for harsh environments.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony ST6	Product or Component Type	Touch panel screen
Processor name	ARM Cortex-A8	Processor frequency	800 MHz
Memory description	1 GB device memory<br />128 MB user data memory<br />512 KB backup memory	Display size	4 inch
Display Type	Colour TFT LCD	Display colour	16 million colours
Display Resolution	480 x 272 pixels	Touch panel	Single touch analogue resistive
Backlight lifespan	20000 hours white	Brightness	16 levels
Character font	ASCII<br />ASCII (European characters)<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Katakana<br />Korean<br />Taiwanese (traditional Chinese)	[Us] rated supply voltage	24 V DC +/- 20 %)
Power consumption in W	7.8 W	Inrush current	30 A
Local signalling	Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF)	Number of pages	200 application pages
Integrated connection type	1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)<br />1 USB 2.0 type A<br />1 USB 2.0 type micro B<br />2 Ethernet - female RJ45 - 10/100BASE-T	Realtime clock	Built-in 0...50 °C<br />Built-in 10...90 % RH
Downloadable protocols	Modbus<br />Uni-TE<br />Third party protocols	Product brand	Schneider Electric Modicon<br />Mitsubishi Melsec<br />Omron Sysmac<br />Rockwell Automation Allen-Bradley<br />Siemens Simatic
Fixing mode	Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201<br />Ø 22 mm hole EN 61131-2<br />Ø 22 mm hole IEC 61000-6-2	Enclosure Material	PC
Front material	Plastic	Cut-out dimensions	Ø 22.5 mm
Height	4.3 in (108.2 mm)	Width	5.7 in (145.6 mm)
Depth	2.1 in (53.9 mm)	Net Weight	1.08 lb(US) (0.49 kg)
Immunity to microbreaks	2 ms	Standards	EN 61000-6-4<br />EN 61000-6-2<br />EN 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />CSA C22.2 No 213
Product Certifications	CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />ABS<br />RINA<br />DNV	Directives	2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Operation	32…122 °F (0…50 °C)	Ambient Air Temperature for Storage	-4…140 °F (-20…60 °C)
Relative humidity	10…90 % non-condensing	Operating altitude	6561.68 ft (2000 m)
IP degree of protection	IP20 IEC 61131-2 rear panel)<br />IP65 IEC 61131-2 front panel)	NEMA degree of protection	NEMA 4 front panel (indoor use)<br />NEMA 13 front panel (in enclosure)
Shock resistance	147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))EN/IEC 61131-2	Vibration resistance	+/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2<br />9.8 m/s² 9…150 Hz)
Electromagnetic compatibility	Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge)

Specifications may be subject to change without notice
