Product Model

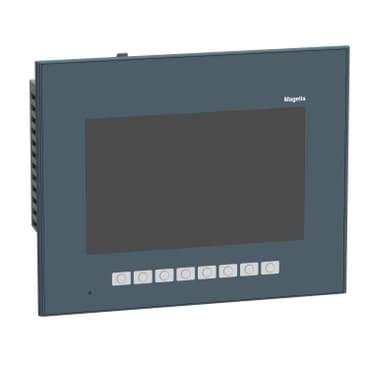

HMIGTO3510FW
Key Features
- 1Features a 7-inch TFT LCD display with 800x480 pixel resolution for clear and detailed visuals.
- 2Equipped with 4 communication ports including 2 COM2, 2 Ethernet (RJ45), and 2 USB 2.0 for seamless data transfer.
- 3Designed for demanding industrial applications with an operating temperature range of 0°C to 50°C.
- 4Offers enhanced human-machine interface functionality with optimized touchscreen performance and customizable settings.
- 5Measuring 54.991 mm in depth, 203.9874 mm in length, and 159.004 mm in width for easy installation in various settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTO | Product or Component Type | Advanced touchscreen panel |
| Display colour | 65536 colours | Display size | 7 inch |
| Supply | External source | Control Button Type | 8 operation defined using Vijeo Designer push-button key F1...F8 |
| Battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) | Terminal type | Touchscreen display |
| Display Type | Backlit colour TFT LCD | Display Resolution | 800 x 480 pixels WVGA |
| Touch sensitive zone | 1024 x 1024 | Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white 77 °F (25 °C) | Brightness | 16 levels by touch panel<br />16 levels by software |
| Character font | Taiwanese (traditional Chinese)<br />Chinese (simplified Chinese)<br />ASCII<br />Japanese (ANK, Kanji)<br />Korean | [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V | Inrush current | 30 A |
| Maximum power consumption in W | 8 W when power is not supplied to external devices<br />5 W when backlight is OFF<br />5.5 W when backlight is dimmed<br />12 W | Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED clear, faded power supply (OFF)<br />COM2 LED yellow, steady data is being transmitted<br />COM2 LED yellow, faded no data transmission<br />SD card LED green, steady card is inserted<br />SD card LED green, faded card is not inserted or is not being accessed |
| Software designation | Vijeo Designer configuration software >= V6.1 | Memory description | Flash EPROM, 96 MB |
| Data backed up | 128 kB internal RAM SRAM) | Data storage equipment | SD card, <= 32 GB<br />SDHC card, <= 32 GB |
| Downloadable protocols | Schneider Electric Modicon Modbus<br />Schneider Electric Modicon Uni-TE<br />Schneider Electric Modicon Modbus Plus<br />Schneider Electric Modicon FIPWAY<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Schneider Electric Modicon Modbus TCP | Integrated connection type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps<br />COM2 serial link RJ45 RS485 2400...115200 bps<br />COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI<br />Ethernet RJ45 10BASE-T/100BASE-TX<br />Ethernet RJ45 IEEE 802.3<br />USB 2.0 type A<br />USB 2.0 type mini B |
| Product mounting | Flush mounting | Fixing mode | by 4 screw clamps |
| Front material | PPT | Enclosure Material | PPT |
| Type of cooling | Natural convection | Width | 8.6 in (218 mm) |
| Height | 6.8 in (173 mm) | Depth | 2.4 in (60 mm) |
| Net Weight | 2.6 lb(US) (1.2 kg) | Standards | IEC 61000-6-2<br />UL 508<br />EN 61131-2 |
| Product Certifications | CE<br />cULus<br />C-tick<br />KCC<br />UKCA<br />UKEX | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % without condensation |
| Operating altitude | < 6561.68 ft (2000 m) | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel (indoor use) | Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
| Vibration resistance | 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2<br />1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 | Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
Specifications may be subject to change without notice
