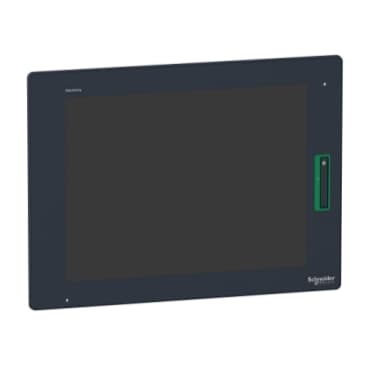

Product Model
HMIDT732
Key Features
- 11024 x 768 pixels XGA resolution for clear visuals.
- 2Analog resistive touch panel for intuitive user interaction.
- 3IP66 and IP67 degree of protection, NEMA 4X enclosure for harsh environments.
- 450,000-hour backlight lifespan for consistent performance.
- 5USB 2.0 type A and mini B integrated connections for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V | Power Consumption in W | 22 W |
| Inrush current | 30 A | Integrated connection type | USB 2.0 type A<br />USB 2.0 type mini B |
| Touchscreen resolution | 1024 x 1024 | Pixel resolution | 1024 x 768 |
| Display size | 15 inch | Aspect ratio | 4:3 |
| Display type | Colour TFT LCD | Display Resolution | 1024 x 768 pixels XGA |
| Display colour | 16 million colours | Backlight lifespan | 50000 hours |
| Touch panel | Multi touch analogue resistive | Function Available | Brightness sensor |
| Type of cooling | Natural convection | Type of Installation | Indoor installation |
| cut-out dimensions | 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm | Width | 15.6 in (397 mm) |
| Height | 11.7 in (296 mm) | Depth | 2.6 in (67 mm) |
| Net Weight | 9.9 lb(US) (4.5 kg) | IP degree of protection | Front panel IP66<br />Front panel IP67 |
| NEMA degree of protection | NEMA 4X front panel | Standards | UL 508<br /> ANSI/ISA 12-12-01<br />Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> IEC 61132-2 |
| Product certifications | CULus<br />RCM<br />KC<br />CE<br />UKCA<br />UKEX | Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 61131-2 |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative Humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 |
| Shock resistance | 147 m/s²IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
