Product Model

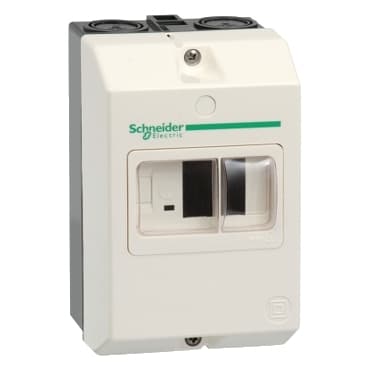

GV2MC03
Key Features
- 1IP55 Protection: Ensures safety against dust and water ingress, perfect for harsh environments.
- 2Surface Mounting: Easy installation with screw fixing, ideal for various mounting locations.
- 3Low Temperature Compatibility: Designed for temperatures below 5°C, suitable for cold environments.
- 4Double Insulation: Includes a protective conductor for enhanced safety and reliability.
- 5Compliance with IEC Standards: Meets IEC 60947-2 and IEC 60947-4-1 standards for electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys | Product or Component Type | Enclosure |
| Device short name | GV2MC | accessory / separate part category | Mounting accessory |
| Product Compatibility | GV2ME | enclosure type | Surface mounting |
| Auxiliary mounting location | Right<br />Left | Height | 5.8 in (147 mm) |
| Width | 3.7 in (93 mm) | Depth | 3.3 in (84 mm) |
| Net Weight | 0.7 lb(US) (0.3 kg) | IP degree of protection | IP55 41 °F (5 °C) |
| Environmental characteristic | Standard environment | Product Certifications | UKCA |
Specifications may be subject to change without notice
