Product Model

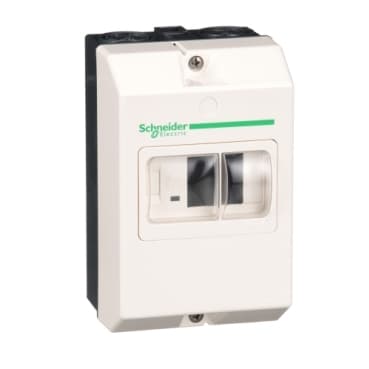

GV2MC02
Key Features
- 1Compact and easy-to-install motor control enclosure.
- 2IP55 protection for reliable operation in harsh environments.
- 3Surface mounting with screw fixing and cable gland knock-outs.
- 4Double-insulated with protective conductor for enhanced safety.
- 5Compatible with TeSys GV2ME motor circuit breakers and start-emergency stop buttons.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys | Product or Component Type | Enclosure |
| Device short name | GV2MC | accessory / separate part category | Mounting accessory |
| Product Compatibility | GV2ME | enclosure type | Surface mounting |
| Auxiliary mounting location | Left<br />Right | Height | 5.8 in (147 mm) |
| Width | 3.7 in (93 mm) | Depth | 3.3 in (84 mm) |
| Net Weight | 0.7 lb(US) (0.3 kg) | IP degree of protection | IP55 |
| Environmental characteristic | Standard environment | Product Certifications | UKCA |
Specifications may be subject to change without notice
