Product Model

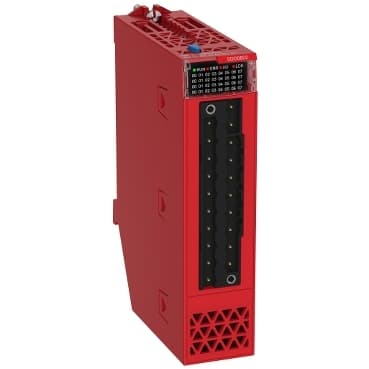

BMXSDO0802
Key Features
- 1The BMXSDO0802 features 8 discrete outputs for versatile control applications.
- 2Operates at 24V DC positive, ensuring reliable and efficient operation.
- 3Equipped with reverse polarity protection, overload protection, overvoltage protection, and short-circuit protection.
- 4Offers a fast step response of 1.2 ms for quick output changes.
- 5Boasts an MTBF reliability of 383,000 hours, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
| Discrete output number | 8 EN/IEC 61131-2 | Discrete output type | Solid state<br />Not isolated |
| Discrete output logic | Positive | Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.5 A | Output compatibility | Not IEC 61131-2 DC input<br />IEC 61131-2 type 3 DC input |
| Current per channel | 0.625 A | Maximum current per module | 10 A |
| Maximum leakage current | 0.5 mA at state 0 | Maximum voltage drop | <1.2 V at state 1 |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 4.4 W |
| Response time on output | 1.2 ms | Paralleling of outputs | Yes : 2 maximum |
| Typical current consumption | 264 mA 3.3 V DC<br />15 mA 24 V | MTBF reliability | 383000 H |
| Protection type | reverse polarity protection<br /> overload protection<br /> overvoltage protection<br /> short-circuit protection | Output overload protection | With current limiter<br />With electronic circuit breaker 1.5 In < Id < 2 In |
| Output overvoltage protection | With transil diode | Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode | Voltage detection threshold | < 14 V DC sensor fault<br />> 18 V DC sensor OK |
| Maximum tungsten load | 6 W | Switching frequency | 0.5/LI² Hz |
| Load impedance ohmic | >= 48 Ohm | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
| Net Weight | 0.26 lb(US) (0.12 kg) | IP Degree of Protection | IP20 |
| Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground<br />1500 V AC 50/60 Hz 1 minute, output/internal logic |
| Vibration resistance | 3 gn | Shock resistance | 15 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Protective treatment | Conformal coating |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
