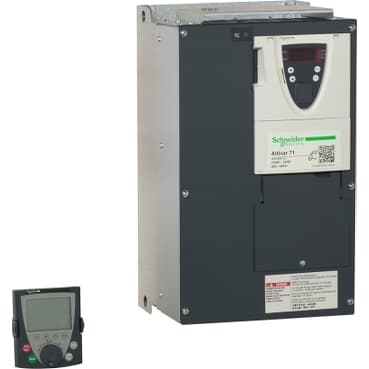

Product Model
ATV71HD22M3XT1
Key Features
- 1High efficiency and reliability for industrial applications.
- 2Compatible with 22kW-30HP motors at 240V.
- 3Robust design with integrated EMC filter class A.
- 4Suitable for applications requiring constant torque and protection.
- 5Easy integration with I/O extension cards and encoder interface cards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Asynchronous motor control profile | Constant torque standard | Device short name | ATV71 |
| Range of Product | Altivar 71 | Line Rated Current | 88 A |
| Cable entry | Type 1 conduit entry outdoor | communication port protocol | CANopen<br />Modbus |
| Input voltage | 208/240 V AC | Keypad Type | LCD keypad |
| Maximum Horse Power Rating | 30 hp | Motor power kW | 22 kW |
| Phase | 3 phase output<br />1 phase input | Output voltage | <= rated supply voltage |
| EMC filter | Without EMC filter | IP Degree of Protection | IP20 |
| NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
