Product Model

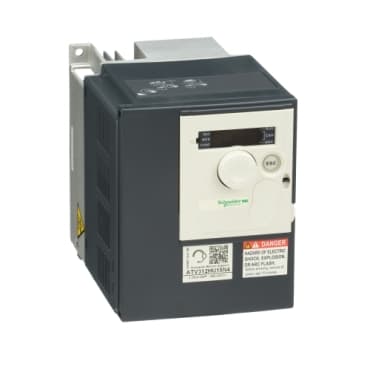

ATV312HU15N4
Key Features
- 1Precise Variable Speed Control: The ATV312HU15N4 provides fine control over motor speed and torque for various industrial applications.
- 2High Overload Capacity: Withstands 150% overload for 60 seconds and 200% overload for 0.5 seconds, ensuring reliable performance in high-demand conditions.
- 3Advanced Communication Protocols: Supports Modbus, CANopen, Profibus, and EtherNet/IP for seamless integration into industrial control systems.
- 4Compact and Durable Design: IP20 enclosure rating protects against solid objects and ensures durability in typical industrial environments.
- 5Efficient Operation: Integrated EMC filter and advanced motor control algorithms like Flux Vector Control (FVC) and Sensor-less Flux Vector Control (SFVC) enhance motor performance and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Altivar 312 | Product or Component Type | Variable speed drive |
| Product destination | Asynchronous motors | Product Specific Application | Simple machine |
| Assembly style | With heat sink | Component name | ATV312 |
| Motor power kW | 1.5 kW | Maximum Horse Power Rating | 2 hp |
| [Us] rated supply voltage | 380...500 V - 15...10 % | Supply frequency | 50...60 Hz - 5...5 % |
| Phase | 3 phase | Line current | 6.4 A 380 V, Isc = 5 kA<br />4.8 A 500 V |
| EMC filter | Integrated | Apparent power | 4.2 kVA |
| Maximum transient current | 6.2 A 60 s | Power dissipation in W | 61 W at nominal load |
| Speed range | 1…50 | Asynchronous motor control profile | Factory set : constant torque<br />Sensorless flux vector control with PWM type motor control signal |
| Electrical connection | Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 0.004 in² (2.5 mm²) AWG 14<br />L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 0.008 in² (5 mm²) AWG 10 | Supply | Internal supply for logic inputs 19...30 V 100 mA overload and short-circuit protection<br />Internal supply for reference potentiometer (2.2 to 10 kOhm) 10...10.8 V 10 mA overload and short-circuit protection |
| communication port protocol | Modbus<br />CANopen | IP degree of protection | IP20 on upper part without cover plate<br />IP21 on connection terminals<br />IP31 on upper part<br />IP41 on upper part |
| Option card | Communication card CANopen daisy chain<br />Communication card DeviceNet<br />Communication card Fipio<br />Communication card Modbus TCP<br />Communication card Profibus DP | Supply voltage limits | 323…550 V |
| Prospective line Isc | 5 kA | Continuous output current | 4.1 A 4 kHz |
| Output frequency | 0…500 Hz | Nominal switching frequency | 4 kHz |
| Switching frequency | 2...16 kHz adjustable | Transient overtorque | 170…200 % of nominal motor torque |
| Braking torque | 150 % 60 s with braking resistor<br />100 % with braking resistor continuously<br />150 % without braking resistor | Regulation loop | Frequency PI regulator |
| Motor slip compensation | Suppressable<br />Adjustable<br />Automatic whatever the load | Output voltage | <= power supply voltage |
| Tightening torque | Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 5.3 lbf.in (0.6 N.m)<br />L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- 10.6 lbf.in (1.2 N.m) | Insulation | Electrical between power and control |
| Analogue input number | 3 | Analogue input type | AI1 configurable voltage 0...10 V 30 V max 30000 Ohm<br />AI2 configurable voltage +/- 10 V 30 V max 30000 Ohm<br />AI3 configurable current 0...20 mA 250 Ohm |
| Sampling duration | AI1, AI2, AI3 8 ms analog<br />LI1...LI6 4 ms discrete | Response time | AOV, AOC 8 ms analog<br />R1A, R1B, R1C, R2A, R2B 8 ms discrete |
| Linearity error | +/- 0.2 % output | Analogue output number | 1 |
| Analogue output type | AOC configurable current 0...20 mA 800 Ohm 8 bits<br />AOV configurable voltage 0...10 V 470 Ohm 8 bits | Discrete input logic | Logic input not wired LI1...LI4), < 13 V<br />Negative logic (source) LI1...LI6), > 19 V<br />Positive logic (source) LI1...LI6), < 5 V, > 11 V |
| Discrete output number | 2 | Discrete output type | Configurable relay logic R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles<br />Configurable relay logic R2A, R2B) NC - 100000 cycles |
| Minimum switching current | R1-R2 10 mA 5 V DC | Maximum switching current | R1-R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms<br />R1-R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms<br />R1-R2 5 A 250 V AC resistive, cos phi = 1 0 ms<br />R1-R2 5 A 30 V DC resistive, cos phi = 1 0 ms |
| Discrete input number | 6 | Discrete input type | LI1...LI6) programmable 24 V, 0…100 mA PLC 3500 Ohm |
| Acceleration and deceleration ramps | S, U or customized<br />Linear adjustable separately from 0.1 to 999.9 s | Braking to standstill | By DC injection |
| Protection type | Input phase breaks drive<br />Line supply overvoltage and undervoltage safety circuits drive<br />Line supply phase loss safety function, for three phases supply drive<br />Motor phase breaks drive<br />Overcurrent between output phases and earth (on power up only) drive<br />Overheating protection drive<br />Short-circuit between motor phases drive<br />Thermal protection motor | Insulation resistance | >= 500 mOhm 500 V DC for 1 minute |
| Local signalling | for drive voltage 1 LED (red)<br /> for CANopen bus status four 7-segment display units | Time constant | 5 ms for reference change |
| Frequency resolution | Analog input 0.1...100 Hz<br />Display unit 0.1 Hz | Connector type | 1 RJ45 Modbus/CANopen |
| Physical interface | RS485 multidrop serial link | Transmission frame | RTU |
| Transmission Rate | 10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen<br />4800, 9600 or 19200 bps Modbus | Number of addresses | 1…127 CANopen<br />1…247 Modbus |
| Number of drive | 127 CANopen<br />31 Modbus | marking | CE |
| Operating position | Vertical +/- 10 degree | Outer dimension | 382 x 239 x 170 mm<br />143 x 105 x 150 mm<br />184 x 149 x 157 mm |
| Height | 5.6 in (143 mm) | Width | 4.2 in (107 mm) |
| Depth | 6.0 in (152 mm) | Net Weight | 4.0 lb(US) (1.8 kg) |
| Dielectric strength | 2410 V DC between earth and power terminals<br />3400 V AC between control and power terminals | Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5<br />Electrical fast transient/burst immunity test level 4 IEC 61000-4-4<br />Electrostatic discharge immunity test level 3 IEC 61000-4-2<br />Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 |
| Standards | IEC 61800-3<br />IEC 61800-5-1 | Product Certifications | UL<br />DNV<br />CSA<br />C-tick<br />NOM<br />GOST |
| Pollution degree | 2 | Protective treatment | TC |
| Vibration resistance | 1 gn 13…150 Hz)EN/IEC 60068-2-6<br />1.5 mm 3…13 Hz)EN/IEC 60068-2-6 | Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation IEC 60068-2-3<br />5…95 % without dripping water IEC 60068-2-3 | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating with protective cover on top of the drive)<br />14…140 °F (-10…60 °C) with derating factor without protective cover on top of the drive) | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
Specifications may be subject to change without notice
