Product Model

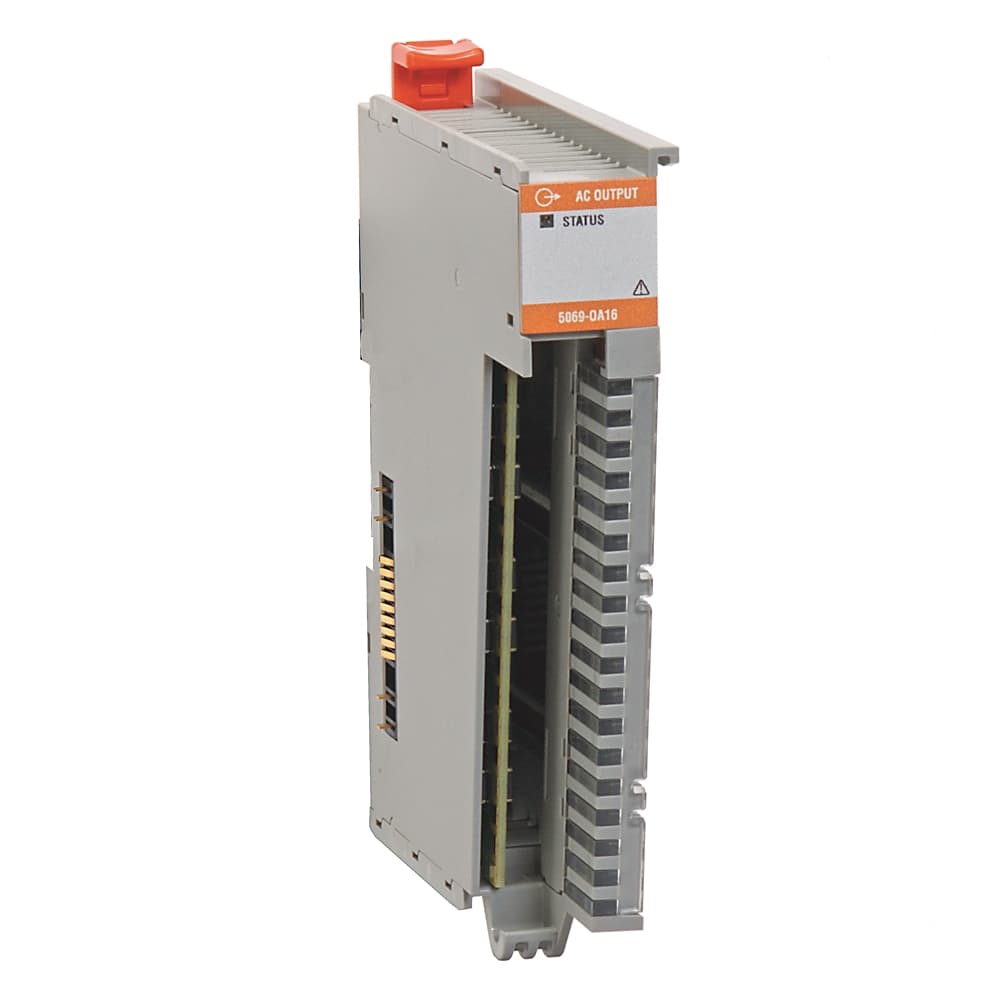

5069-OA16
Key Features
- 11. High-Performance Control: The 5069-OA16 module provides high-performance control in a compact design, making it ideal for applications requiring efficient and reliable operation.;
- 22. Versatile Voltage Support: This module supports both 120 and 240V AC, offering flexibility in various industrial settings where different voltage requirements are common.;
- 33. Compact Design: With dimensions of 5.4 x 0.87 x 4.2 inches, the module is designed to fit seamlessly into tight spaces, making it perfect for distributed I/O solutions.;
- 44. Advanced Communication Model: The module uses the Producer/Consumer communication model, enabling intelligent data exchange between the module and other system devices without the need for polling.;
- 55. ATEX/IECEx Compliance: The 5069-OA16 complies with ATEX/IECEx standards for use in areas with explosive atmospheres, ensuring safety in hazardous locations when used at or below 125V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Weight | 0.249 | Stock Status | STOCKED |
| Dimension Length | 18.542 | Dimension Width | 13.716 |
| Lead Time | 5 | Dimension Height | 5.334 |
| Quick Turnaround | false | Preferred Availability | true |
| Repairable | NOT_REPAIRABLE | Memory | 4MB |
| Isolation | 300V (continuous), Basic Basic Insulation Type; No isolation between SA Power and I/O ports; No isolation between individual I/O ports; Type tested at 1500V AC @ 60s | Height | 138mm, 5.43" |
| Depth | 105mm, 4.15" |
Specifications may be subject to change without notice
