Product Model

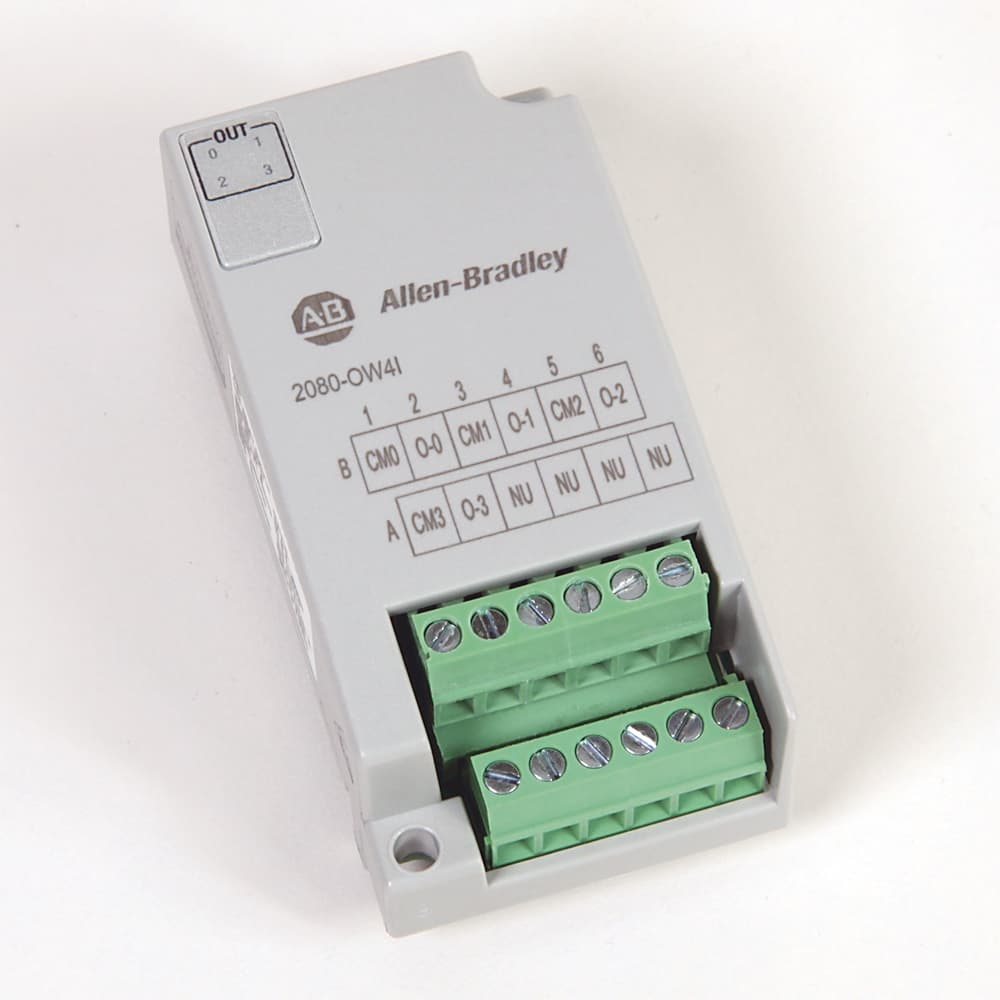

2080-OW4I
Key Features
- 11. Reliable Operation: The Allen Bradley 2080-OW4I ensures reliable operation with its individually isolated digital outputs, minimizing the risk of electrical interference.;
- 22. Compact Design: The module's compact size makes it easy to integrate into existing systems, saving space and improving overall system efficiency.;
- 33. Robust Performance: Designed for industrial applications, this module delivers robust performance under various operating conditions, including extreme temperatures and vibrations.;
- 44. Easy Integration: Compatible with all Micro800 CPUs, the 2080-OW4I is easy to integrate into your existing control systems, reducing setup time and complexity.;
- 55. High-Quality Relays: Equipped with high-quality relays, this module provides consistent and precise control, ensuring that your operations run smoothly and efficiently.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Weight | 0.034 | Stock Status | STOCKED |
| Dimension Length | 9.27 | Dimension Width | 6.86 |
| Lead Time | 5 | Dimension Height | 3.56 |
| Quick Turnaround | false | Preferred Availability | true |
| Repairable | NOT_REPAIRABLE | Explosion safety category for dust | None |
| Explosion safety category for gas | None | Mounting torque | 0.2 nm |
| Vibration | 2.0 G @ 10â¦500 Hz | Shock | Operating: 10 g |
| Terminal base screw torque, max | 0.19 Nm (1.7 in-lb.), using a 2.5 mm | Enclosure type rating | None (open-style) |
| Nonoperating temperature | 40 to 85 °C | Operating temperature | -20 to 65 °C |
| Relative humidity | 5...95% noncondensing | North American temperature code | T4 |
| Surrounding air temperature, max | 65 °C | Output current, inductive | 1.0 A steady state @ 5...28V DC @ 0.93A steady state @ 30V DC @ 0.5A steady state @ 48V DC @ 0.22A steady state @ 125V DC @ 2.0A steady state, 15 A make @ 125V AC, PF - cos θ = 0.4, 2.0 A steady state, 7.5 A make @ 240V AC, PF - cos θ = 0.4 |
| Output power, resistive, max | 250VA for 125V AC resistive loads, 480VA for 240V AC resistive loads, 60VA for 30V DC resistive loads, 24VA for 48V DC resistive loads, 27.5VA for 125V DC resistive loads | Output current, resistive | 2A @ 5...30V DC, 0.5A @ 48V DC, 0.22A @ 125V DC, 2A @ 125V AC, 2A @ 240V AC |
| Inrush current | <120mA @ 3.3V, <120mA @ 24V | Backplane power | 3.3V DC @ 38mA |
| Wire type | Copper | Initial contact resistance of relay, max | 30 mohm |
| Minimum load per point | 10 mA | SIL according to IEC 61508 | None |
| Redundancy | No | Isolation voltage | 240V (continuous), reinforce insulation type, between output channels and output channels to backplane type tested for 60 s @ 1480V AC Outputs to Outputs, Outputs to Backplane |
| Wire size | 0.05...1.31 mm2 (30...16 AWG) solid copper wire rated @ 90 °C (194 °F ) insulation maximum | Insulation stripping length | 5 mm |
| Pilot duty rating | C300, R150 | Relay contact, break | 28VA @ 24V DC maximum volts, 0.35 power factor |
| Relay contact, make | 7.5A @ 240V AC maximum volts, 0.35 power factor | Relay contact, continuous | 2.0A @ 120V AC maximum volts, 0.35 power factor |
| Number of I/O | 4-channel relay output | Wiring category | 2 - on signal ports, 2 - on power ports |
| Output delay time, max | OFF to ON: 10 ms, ON to OFF: 10 ms | Status indicator | 4 yellow |
| Type of electric connection | Screw connection | Type of digital output | Relay |
| Type of output voltage | DC | Type of voltage (input voltage) | DC |
| Digital outputs configurable | No | Digital inputs configurable | No |
| I/O Status Indication | LED | I/O Isolation | Isolated |
Specifications may be subject to change without notice
