Product Model

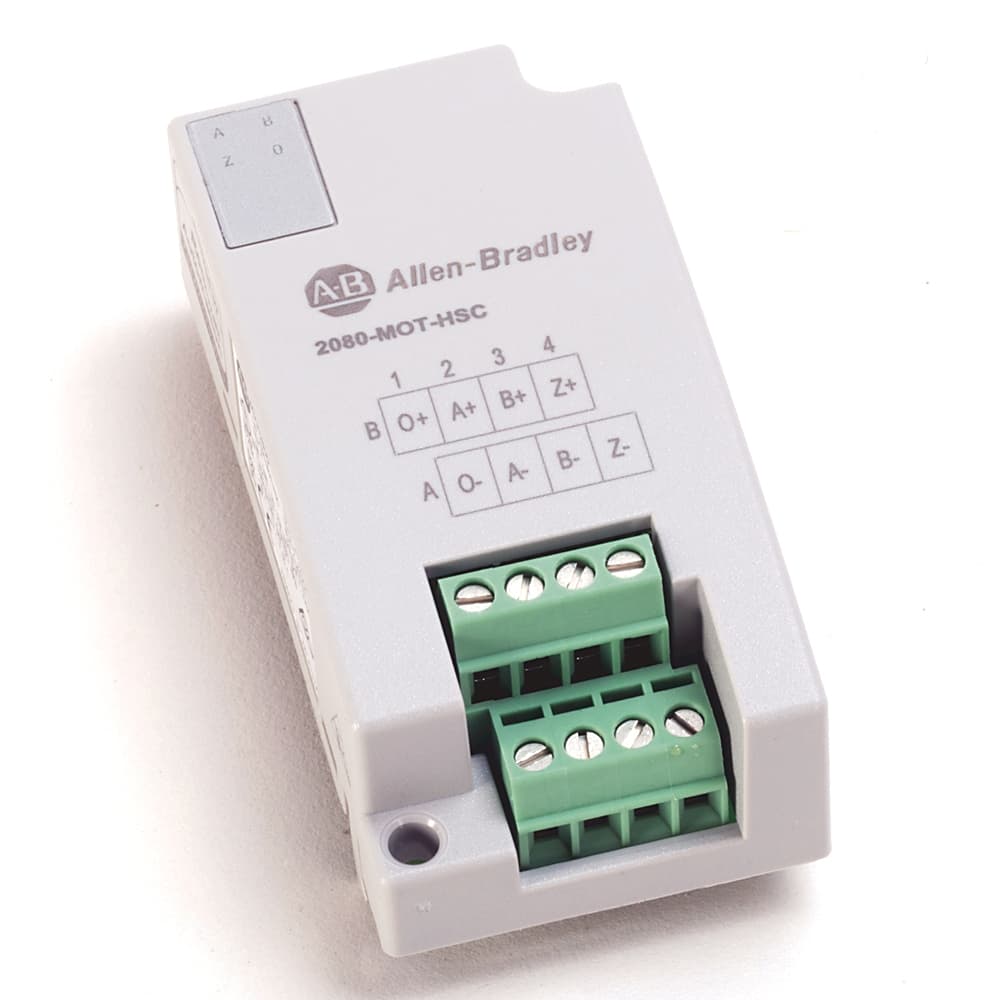

2080-MOT-HSC
Key Features
- 11. Advanced Counter Capabilities: The 2080-MOT-HSC supports high-speed counter operations, making it ideal for applications requiring precise and rapid counting.;
- 22. Robust Industrial Specifications: Designed to withstand harsh industrial environments, this module meets IEC 60068-2-1, IEC 60068-2-2, and IEC 60068-2-14 standards for operating and non-operating temperatures.;
- 33. Differential Input Support: Equipped with differential inputs, the module supports two input terminals for each input point, ensuring reliable and accurate data collection.;
- 44. High ESD Immunity: The module boasts high ESD immunity, with 6 kV contact discharges and 8 kV air discharges, ensuring reliable operation in environments with high electromagnetic interference.;
- 55. Compact Design: With dimensions of 31.5 mm in width, 62 mm in height, and 20 mm in depth, the 2080-MOT-HSC is compact and easy to integrate into your existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | G |
| Weight | 52.163 | Stock Status | STOCKED |
| Dimension Length | 10.389 | Dimension Width | 6.502 |
| Lead Time | 5 | Dimension Height | 5.207 |
| Quick Turnaround | false | Preferred Availability | false |
| Repairable | NOT_REPAIRABLE | ON-state voltage range | 2.6...30V DC |
| Off-state leakage current | 0.5 mA | Input voltage range | 0...30V DC |
| Input current range | 2 mA | Phase separation, min | 500 ns |
| Maximum count | 48 bit | Input frequency, max | 250 kHz (50% duty) |
| Input impedance, nom | 3580 ? | Pulse width, min | 2 μs |
| Number of inputs | 1 Quadrature (ABZ) differential input | On-state current, min | 2 mA |
| Off-state voltage, max | 1.0V DC | Output voltage range | 5...30V DC |
| Enclosure type rating | Meets IP20 | Number of outputs | 16 (1 physical output, 15 virtual) |
| Output on-state current | 0.5 A | Reverse polarity protection | None |
| On-state voltage drop, max | 0.5V DC | Radiated RF immunity | IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz, |
| Nonoperating temperature | -40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock) | Surge transient immunity | IEC 61000-4-5: ±2 kV line-earth(CM) on shielded ports |
| Operating temperature | -20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) | EFT/B immunity | IEC 61000-4-4: ±2kV @ 5kHz on signal ports |
| Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz | Relative humidity | IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing |
| ESD immunity | IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges | Emissions | CISPR 11 (IEC 61000-6-4): Class A |
| North American temperature code | T4 | Surrounding air temperature, max | 65 °C |
| Terminal screw torque | 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) | Vibration | IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz |
| Shock | IEC 60068-2-27 (Test Ea, unpackaged shock): 25 g, nonoperating, 35 g (Panel Mount) nonoperating | Depth | 20 mm |
| Height | 62 mm | Width | 31.5 mm |
| Bus current draw | 60mA @ 3.3V DC | Short-circuit protection, outputs available | No |
| Redundancy | No | Isolation voltage | Input module: 50V (continuous), Basic Insulation Type, Inputs/Outputs to Backplane. Type tested for 60s @ 720V DC, Inputs/Outputs to Backplane |
| Wire size | Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum | Wiring category | 2 - on signal ports |
| Type of electric connection | Screw connection | Type of digital output | Other |
| Type of output voltage | DC | Type of voltage (input voltage) | DC |
| Digital outputs configurable | Yes | Digital inputs configurable | Yes |
| Suitable for safety functions | Yes | Time delay at signal exchange | 2 ms |
| I/O Status Indication | LED | I/O Isolation | None |
Specifications may be subject to change without notice
