Product Model

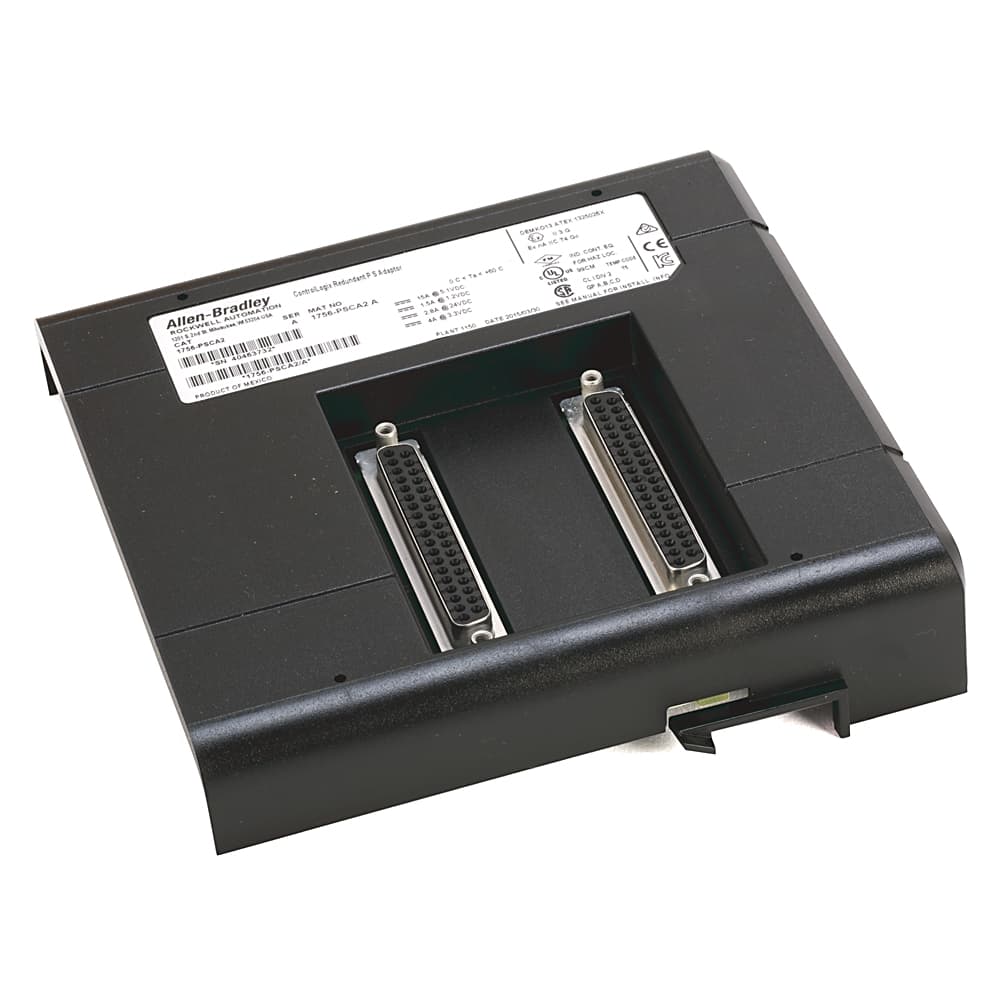

1756-PSCA2
Key Features
- 11. Redundant Power Supply Connection: The 1756-PSCA2 connects two power supplies to a single power connector, ensuring continuous operation in case of a power supply failure.;
- 22. Temperature Rating: Operates within a temperature range of 0 to 60 °C (32 to 140 °F), making it suitable for a variety of industrial environments.;
- 33. Vibration and Shock Resistance: Withstands vibrations up to 2 G @ 10...500 Hz and operating shocks of up to 30 G, ensuring durability in harsh conditions.;
- 44. High Current Capacity: Supports a current capacity of 4A @ 3.3V DC, providing ample power for demanding industrial applications.;
- 55. Certifications and Compliance: Certified with various international certifications including China CCC, CE, ATEX, Australian RCM, and IECEx Scheme, ensuring compliance with global standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Weight | 0.385 | Stock Status | STOCKED |
| Dimension Length | 18.415 | Dimension Width | 20.701 |
| Lead Time | 5 | Dimension Height | 9.017 |
| Quick Turnaround | false | Preferred Availability | false |
| Repairable | NOT_REPAIRABLE | Wire category | 3 - on 1756-CPR2 connections |
| Current capacity | 4A @ 3.3V DC | Operating temperature | 0 to 60 °C |
| Shock | Operating: 30 G | Relative humidity | 5...95% noncondensing |
| Vibration | 2 G @ 10...500 Hz | Rockwell tire and rubber rated | No |
| ISAGX | No | Enclosure type rating | None (open-style) |
| Temperature Rating | 0â¦60 °C (32â¦140 °F) | Functions | Connects Two Power Supplies to to Single Power Connector |
| Frequency Rating | None (open-style) |
Specifications may be subject to change without notice
