Product Model

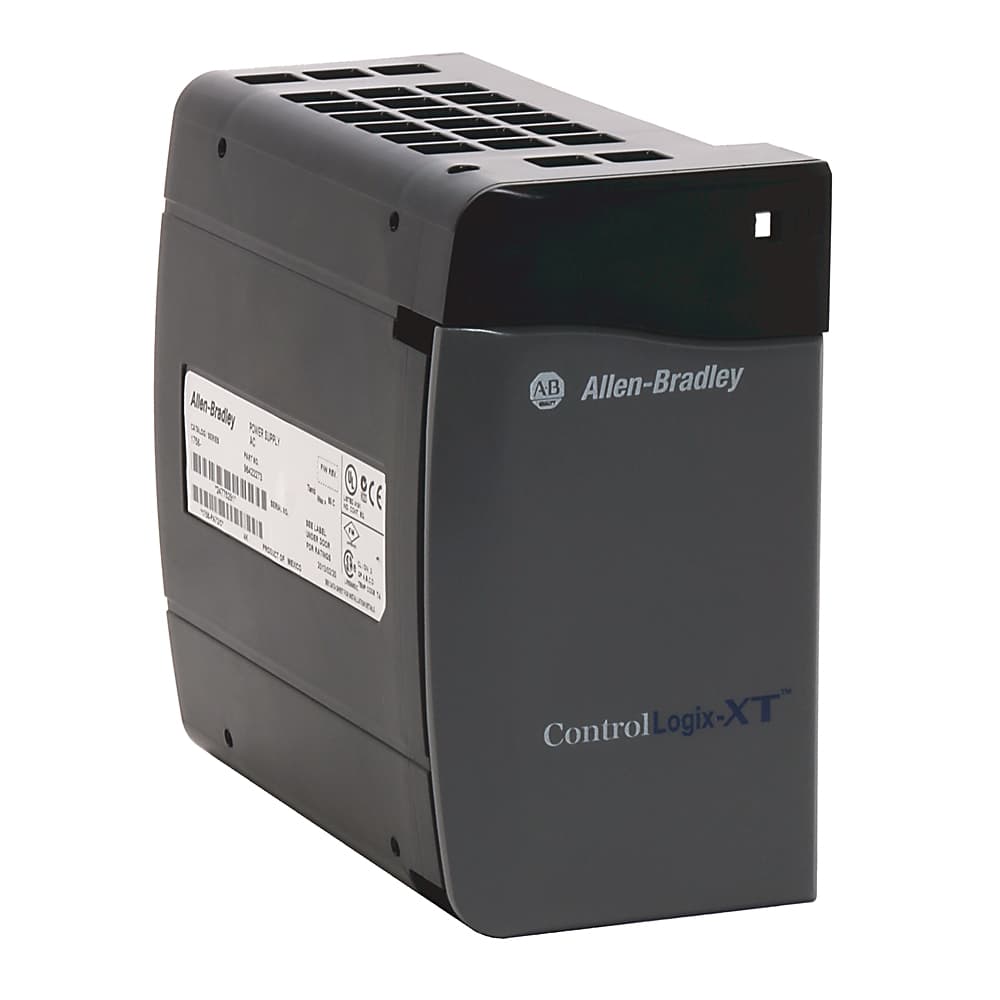

1756-PB30XT
Key Features
- 11. Extreme Temperature Range: The Allen Bradley 1756-PB30XT operates within a temperature range of -25 to 70°C, making it suitable for harsh industrial environments.;
- 22. High Isolation Voltage: With a high isolation voltage of 250V, this power supply ensures reliable performance and safety in demanding applications.;
- 33. Robust Design: Designed for durability, the 1756-PB30XT withstands a 30g operating shock and maintains functionality in 5-95% noncondensing humidity.;
- 44. Versatile Input Voltage: The power supply features an input voltage range of 18 to 32V DC, making it compatible with various industrial systems.;
- 55. Compact and Efficient: With dimensions of 5.51 x 3.07 x 5.71 inches, this power supply fits seamlessly into the left slot of ControlLogix chassis models, ensuring efficient use of space in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | NON_STOCKED | Dimension Length | 14.5 |
| Dimension Width | 7.8 | Lead Time | 20 |
| Dimension Height | 14.0 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | REPAIRABLE |
| Voltage variation | IEC 61000-4-29: 10 ms interruption on DC supply ports, 60% dips for 100 ms on DC supply ports, 100% dips for 50 ms on DC supply ports, ±20% fluctuations for 15 min on DC supply ports, 5 s interruptions on DC supply ports | Operating temperature | -25 °C < Ta < +70 °C (-13 °F < Ta < +158 °F) |
| Shock | Operating: 30 G | Relative humidity | 5...95% noncondensing |
| Vibration | 2 G @ 10...500 Hz | Conductor screw torque | 0.565 nm |
| Rockwell tire and rubber rated | No | ISAGX | No |
| Weight | 0.771 | Enclosure type rating | None (open-style) |
| Depth | 145 mm | Height | 140 mm |
| Width | 78 mm | Redundancy capable | No |
| Suitable for safety functions | No | Wire size | 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation max |
| Wire category | 1 - on power ports | Power output, max | 30 W @ -25...+70 °C (-13...+158 °F) |
| Current capacity | 6A @ 5.1V DC | Input power, max | 50 W |
| Inrush current, max | 30 A | Input voltage, nom | 24V DC |
| Input voltage at DC | 18 V | Output voltage at DC | 5.1 V |
| Power output | 30 W | Type of voltage (input voltage) | DC |
| Redundant Configuration | No | Connection Cables | None required |
Specifications may be subject to change without notice
