Product Model

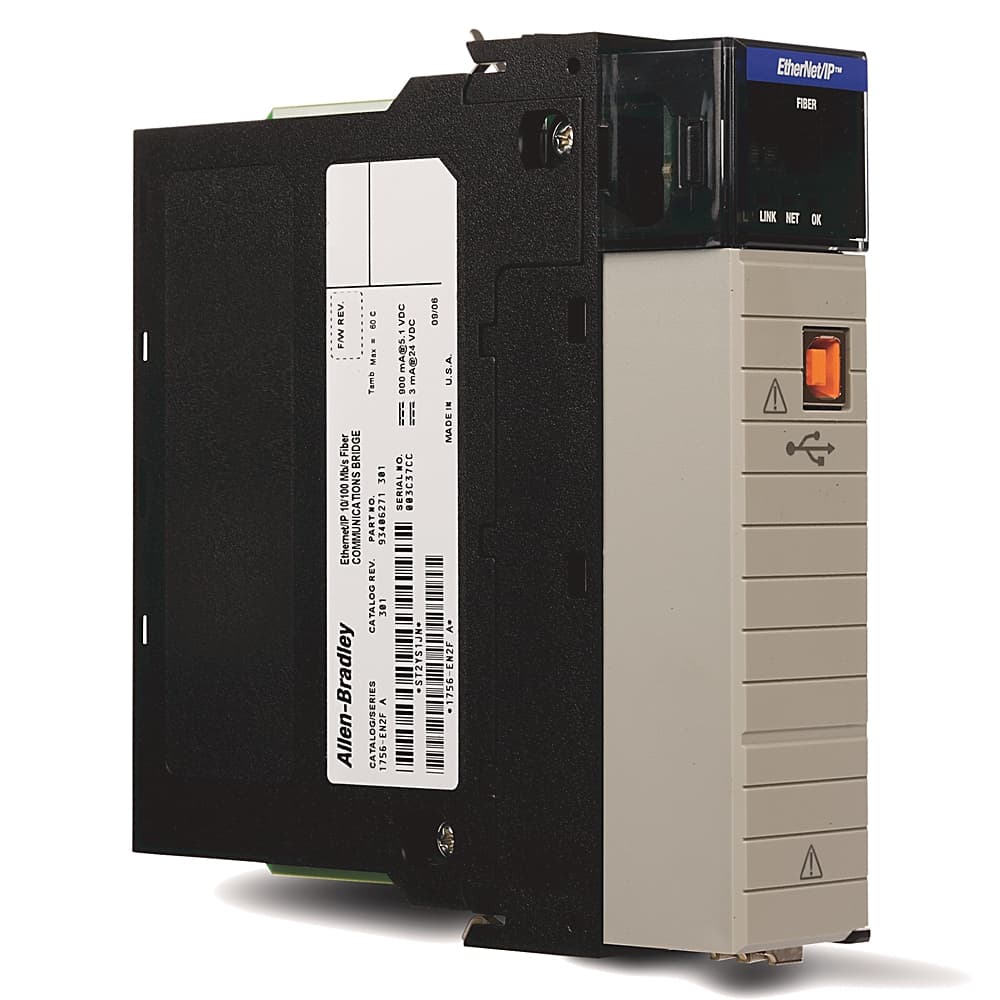

1756-EN2F
Key Features
- 11. High-Speed Data Transfer: The 1756-EN2F supports 10/100 Mbps Ethernet communication, ensuring fast and reliable data transfer in industrial environments.;
- 22. Multi-Axis Support: This module supports up to 8 motion axes, making it versatile for various industrial automation applications.;
- 33. Robust Connectivity: With a maximum of 256 CIP connections and 128 TCP/IP connections, the 1756-EN2F offers robust connectivity options for seamless communication.;
- 44. Fiber Optic Interface: Equipped with a multimode fiber LC connector, this module provides a reliable and long-distance communication solution.;
- 55. Durable Design: Built with a durable open-style enclosure, the 1756-EN2F is designed to withstand harsh industrial environments, including temperatures up to 60°C (140°F) and relative humidity of 5-95% noncondensing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Weight | 0.5 | Stock Status | STOCKED |
| Dimension Length | 21.488 | Dimension Width | 17.501 |
| Lead Time | 5 | Dimension Height | 5.004 |
| Quick Turnaround | false | Preferred Availability | false |
| Repairable | REPAIRABLE | Module location | Chassis based, any slot |
| IECEx temperature code | T4 | North American temperature code | T4A |
| Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz | Operating temperature | 0 °C <Ta <60 °C (32 °F <Ta <140 °F) |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz | Shock | Operating: 30 G, Nonoperating: 30 G |
| Relative humidity | 5...95% noncondensing | ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Vibration | 2 G @ 10...500 Hz | Emissions | CISPR 11: Class A |
| Storage temperature | -40 °C <Ta <85 °C (-40 °F <Ta <185 °F) | Surrounding air temperature, max | 60 °C |
| ATEX temp code | T4 | Slot width | 1 |
| Radio standard UMTS | No | Radio standard GSM | No |
| Radio standard GPRS | No | Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFIsafe | No | Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFINET CBA | No | Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for AS-Interface Safety at Work | No | Radio standard Wi-Fi 802.11 | No |
| Radio standard Bluetooth | No | Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for SERCOS | No | With potential separation | No |
| Supporting protocol for SUCONET | No | Supporting protocol for Data-Highway | No |
| Supporting protocol for Modbus | No | Supporting protocol for KNX | No |
| Supporting protocol for INTERBUS | No | Supporting protocol for CAN | No |
| Supporting protocol for PROFIBUS | No | Supporting protocol for ASI | No |
| Supporting protocol for LON | No | Connections supported, max | TCP: 128, CIP: 256 (CIP connections can be used for all explicit or all implicit applications. for exAle, a 1756-ENBT module has a total of 128 CIP connections that can be used for any combination of connections.) |
| Communication rate | 10/100 Mbps | CIP unconnected messages | 128 + 128 (backplane + Ethernet) |
| Enclosure type rating | None (open-style) | Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for DeviceNet Safety | No | IO link master | No |
| Redundancy | No | Supporting protocol for other bus systems | No |
| Supporting protocol for DeviceNet | No | Supporting protocol for TCP/IP | Yes |
| With optical interface | Yes | Interface | 1 Fiber MM LC (100 Mbps) |
| Communication | Ethernet/IP |
Specifications may be subject to change without notice
