Product Model

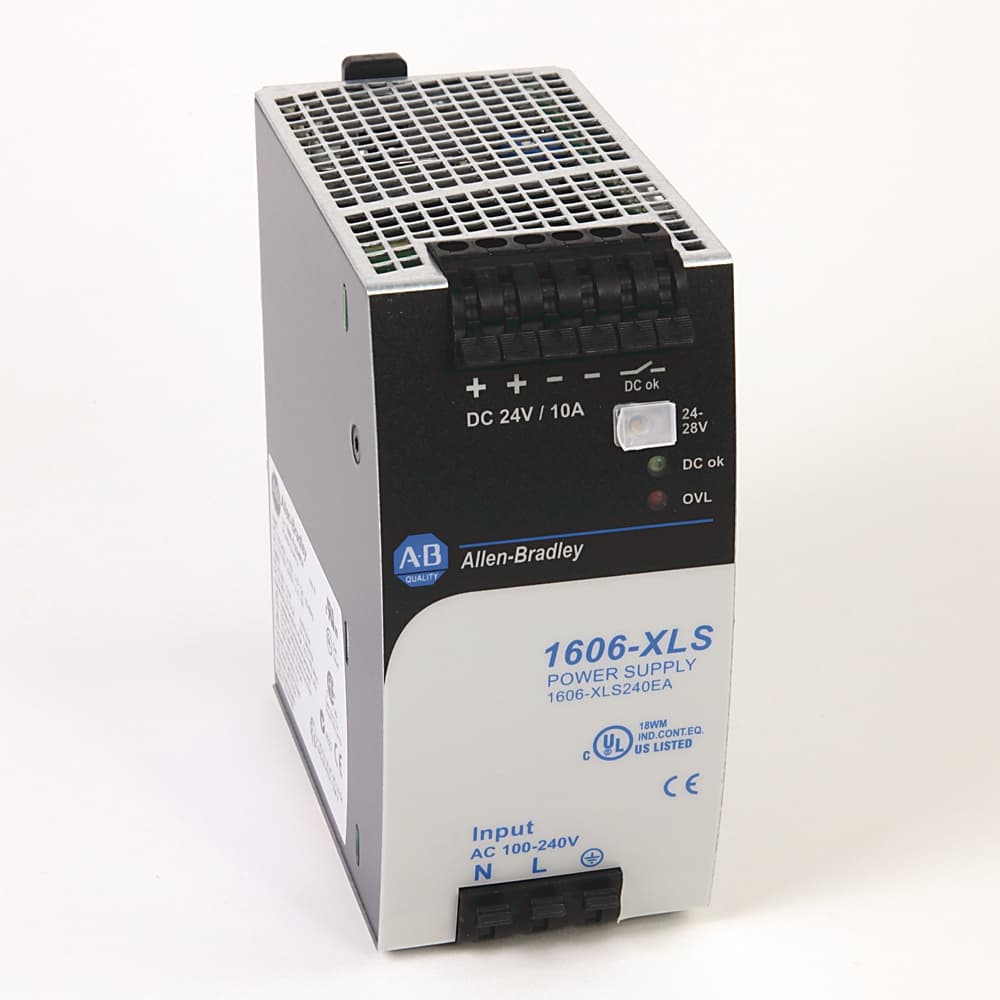

1606-XLS240EA
Key Features
- 11. High Efficiency and Power Output: The 1606-XLS240EA boasts an impressive 92% efficiency, ensuring reliable and efficient operation. With a power output of 240W, it can handle demanding industrial applications with ease.;
- 22. Wide Input Voltage Range: This power supply accepts a wide range of input voltages from 100 to 240V AC and 110 to 150V DC, making it versatile for various industrial settings.;
- 33. Active PFC and Safety Certifications: Equipped with active PFC (Power Factor Correction), the 1606-XLS240EA ensures reduced harmonic distortion and improved power factor. It also meets Class 1 Division 2 safety standards, making it suitable for hazardous locations.;
- 44. Stable Output Voltage: The power supply provides a stable output voltage range of 24 to 28V DC, ensuring consistent performance in critical applications. The nominal output voltage is 24V DC, with secondary voltage adjustment available.;
- 55. Durable Construction and Mounting Options: Built to withstand harsh industrial environments, the 1606-XLS240EA features a robust design with a height of 124 mm, depth of 117 mm, and width of 60 mm. It is rail-mountable and can be wall-mounted, offering flexibility in installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | STOCKED | Dimension Length | 15.088 |
| Dimension Width | 14.199 | Lead Time | 5 |
| Dimension Height | 9.296 | Quick Turnaround | false |
| Preferred Availability | true | Repairable | NOT_REPAIRABLE |
| Weight | 1.025 | Non-operating temperature range | -40 to 85 °C |
| Lifetime, min | 71 kh (+40 °C) | Operating temperature | -25 °C |
| Ripple and noise, max | 50 mV | Degree of protection (NEMA) | Other |
| Wall mounting possible | Yes | MTBF | 581 kh (40 °C, SN29500) |
| Special functions | Atex | Type of electric connection | Spring clA connection |
| Degree of protection (IP) | IP20 | Width | 60 mm |
| Direct mounting possible | No | Depth | 117 mm |
| Height | 124 mm | Stabilized | Yes |
| Rail mounting possible | Yes | Output voltage stabilized | Yes |
| Special feature | Active PFC, Class 1 division 2, semi F47, 9) ABS/GL/RINA (marine) | Rated input current | 2.8A @ 100V AC |
| Input voltage | 100...240V @ AC, 47...63 Hz | Input inrush current | 4 A/7 A |
| Hold-up time | 27 ms | Sub group | Performance family |
| Power losses | 16.7 W typical | External input fuse, min | B-6 A or C-4 A |
| Rated output current | 9A @ 28V DC | Reserve power (typ. 4 s) | 15A @ 24V DC |
| Operational range | 88...188V DC | Power factor | 0.92 typical |
| Output voltage | 24...28V DC | Input inrush current limiter | Active |
| DC OK relay contact | Yes | Derating | 6 w/°c |
| Rated supply voltage at DC | 110 V | Voltage type of supply voltage | AC/DC |
| Power output | 240 W | Secondary voltage adjustable | Yes |
| Nominal value output voltage 1 | 24 V | Output Voltage Range | 24 -28V DC |
| Input Voltage Range | 100-240V AC/110-150V DC | Input Circuit Protection | 6 A Slow Blow Fuse or?Cat. No. 1489-A1C060 |
| Efficiency | 93.5% typical |
Specifications may be subject to change without notice
