Product Model

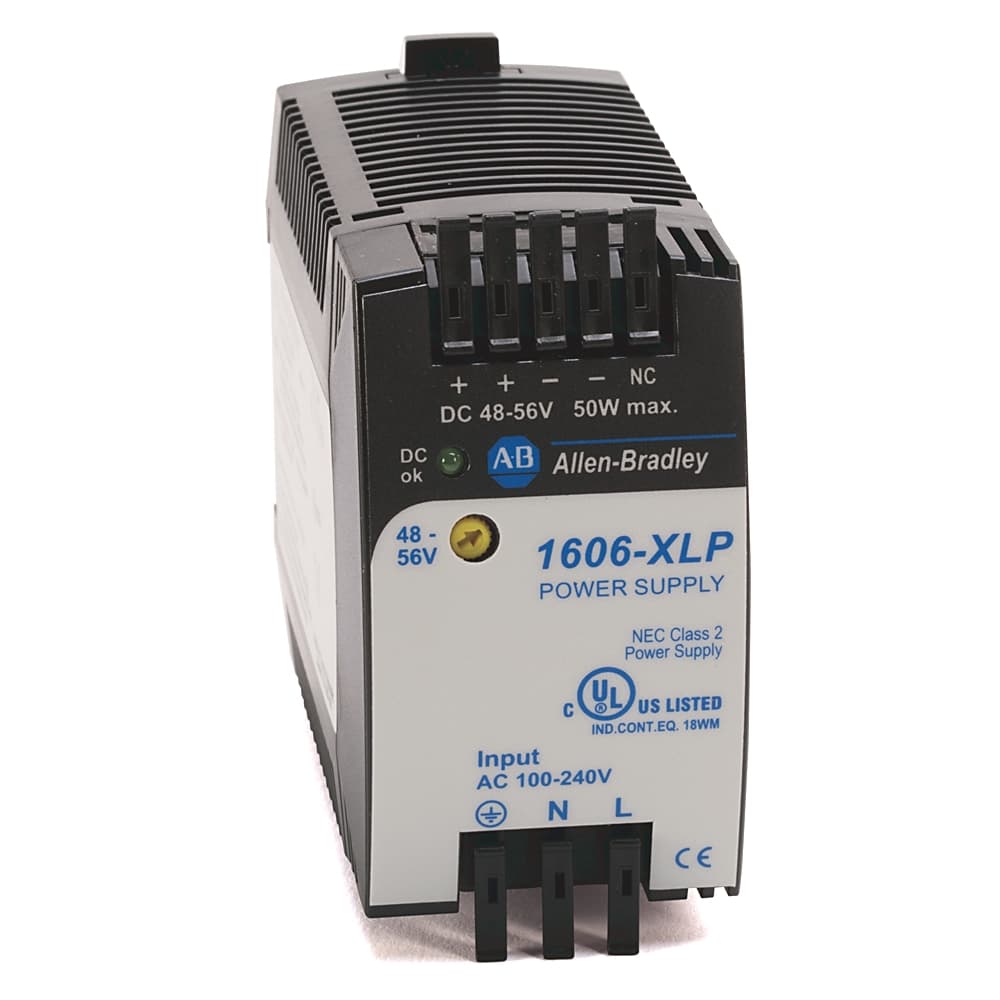

1606-XLP72E
Key Features
- 11. Compact Design: The Allen Bradley 1606-XLP72E boasts a compact design, measuring 45 x 75 x 91 mm, making it perfect for space-saving installations in industrial settings.;
- 22. Efficient Performance: Designed for efficient performance, this power supply achieves up to 89% efficiency, resulting in less heat waste and improved reliability.;
- 33. Adjustable Output Voltage: The unit offers adjustable output voltage up to DC 28V, providing flexibility in meeting various application requirements.;
- 44. Exceptional Overload Design: Featuring an exceptional overload design, the power supply can handle up to 1.5 times the nominal current without switching off, ensuring continuous operation during transient conditions.;
- 55. Worldwide Approvals: With worldwide approvals, including VDE 0160/W2 transient immunity, this power supply is suitable for use in diverse industrial environments, meeting local and international standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | STOCKED | Dimension Length | 15.291 |
| Dimension Width | 14.3 | Lead Time | 5 |
| Dimension Height | 6.299 | Quick Turnaround | false |
| Preferred Availability | true | Repairable | NOT_REPAIRABLE |
| Weight | 0.345 | Relative humidity | 5 to 95 % |
| Storage temperature | -40 °C | Operating temperature | -10 °C |
| Ripple and noise, max | 50 mV | Stabilized | Yes |
| Rail mounting possible | Yes | Output voltage stabilized | Yes |
| Special feature | - | Special family function | No power boost |
| Hold-up time | >40 ms @ 230V AC | Sub group | Compact family |
| Phases | 1-phase | Operational range | 85...132V AC |
| Adjustment range | 24 V | Efficiency, typ | 89 % |
| Rated supply voltage at DC | 220 V | Voltage type of supply voltage | AC/DC |
| Secondary voltage adjustable | Yes | Vibration | 2 g |
| Degree of protection (NEMA) | Other | Wall mounting possible | Yes |
| MTBF | 600000 hr @ 40 °C, SN 29500 | Special functions | No special function |
| Shock | 30 G, 6 ms 20G, 11 ms | Type of electric connection | Spring ClA connection |
| Degree of protection (IP) | IP20 | Width | 45 mm |
| Direct mounting possible | No | Depth | 91 mm |
| Height | 75 mm | Product Family | Power Supply XLP |
Specifications may be subject to change without notice
