Product Model

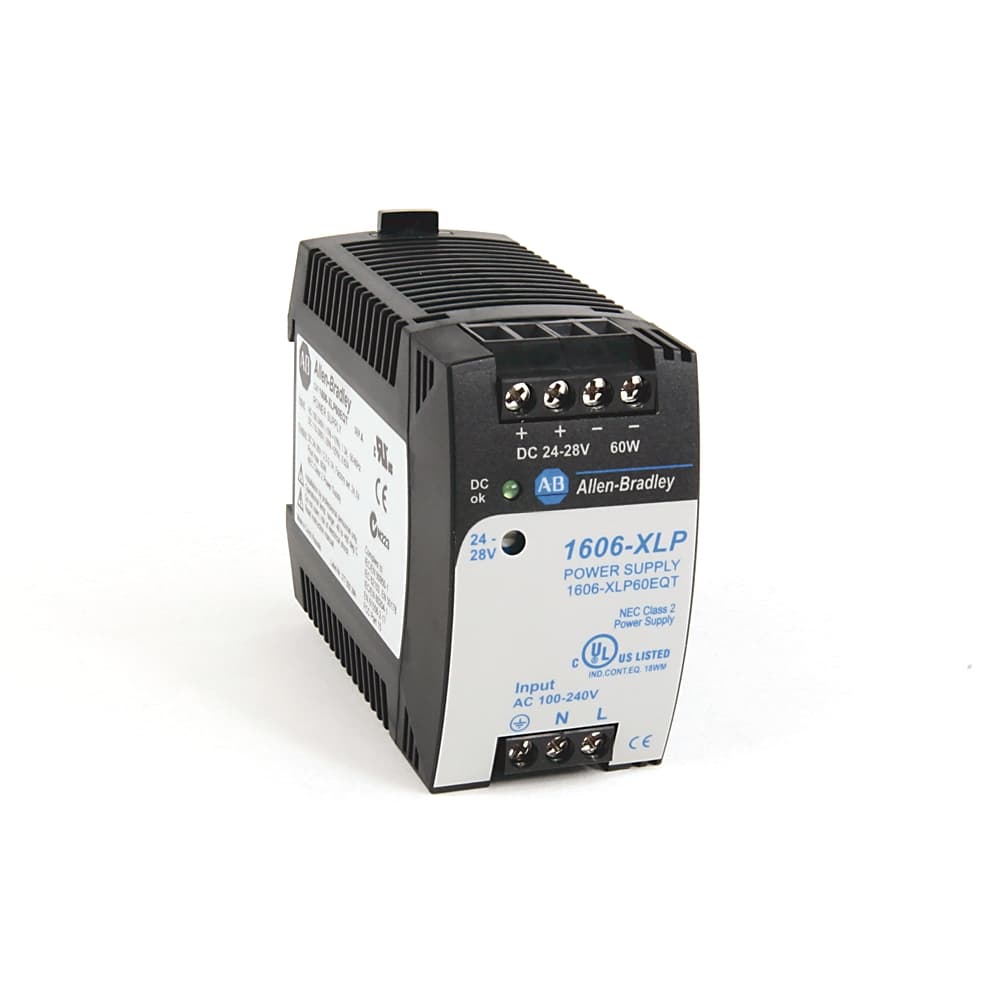

1606-XLP60EQ
Key Features
- 11. Compact Design: The 1606-XLP60EQ is designed to be the smallest in its class, making it perfect for space-constrained industrial applications.;
- 22. High Efficiency: With an efficiency of up to 90.4%, this power supply minimizes energy loss and maximizes performance.;
- 33. Wide Input Voltage Range: The power supply operates within a wide input voltage range of 110-300VDC, ensuring flexibility in various industrial settings.;
- 44. Low Inrush Current Limiting: Designed with low inrush current limiting, this power supply protects against voltage spikes and ensures smooth startup.;
- 55. Parallel Operation Capability: The 1606-XLP60EQ supports parallel operation, allowing for increased power output by connecting multiple units together.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | MM | Weight Unit | G |
| Stock Status | STOCKED | Dimension Length | 75.0 |
| Dimension Width | 91.0 | Lead Time | 5 |
| Dimension Height | 45.0 | Quick Turnaround | false |
| Preferred Availability | true | Repairable | NOT_REPAIRABLE |
| Weight | 250.0 | Relative humidity | 5 to 95 % |
| Storage temperature | -40 | Operating temperature | -10 |
| Ripple and noise, max | 50 | Stabilized | True |
| Rail mounting possible | True | Output voltage stabilized | True |
| Special feature | - | Rated input current | <1.0A @ 100V AC |
| Special family function | No power boost | Input voltage | 100â¦240V AC |
| Hold-up time | >24 ms @ 120V AC | Sub group | Compact family |
| Phases | 1-phase | Rated output current | 2.5A @ 24V |
| Operational range | 85...264V AC | Adjustment range | 24 |
| Efficiency, typ | 89.7 | Rated supply voltage at DC | 85 |
| Voltage type of supply voltage | AC/DC | Power output | 60 |
| Secondary voltage adjustable | True | Vibration | 2 |
| Degree of protection (NEMA) | Other | Wall mounting possible | True |
| MTBF | 1916000 hr @ 40 °C, SN 29500 | Special functions | No special function |
| Shock | 30 G, 6 ms 20G, 11 ms | Type of electric connection | Screw connection |
| Degree of protection (IP) | IP20 | Width | 45 |
| Direct mounting possible | False | Depth | 91 |
| Height | 75 | Input Voltage Range | 100-240V AC/110-300V DC |
| Input Circuit Protection | 10 A Slow Blow Fuse or?Cat. No. 1489-A1C100/15A | Efficiency | 0.88 |
Specifications may be subject to change without notice
