Product Model

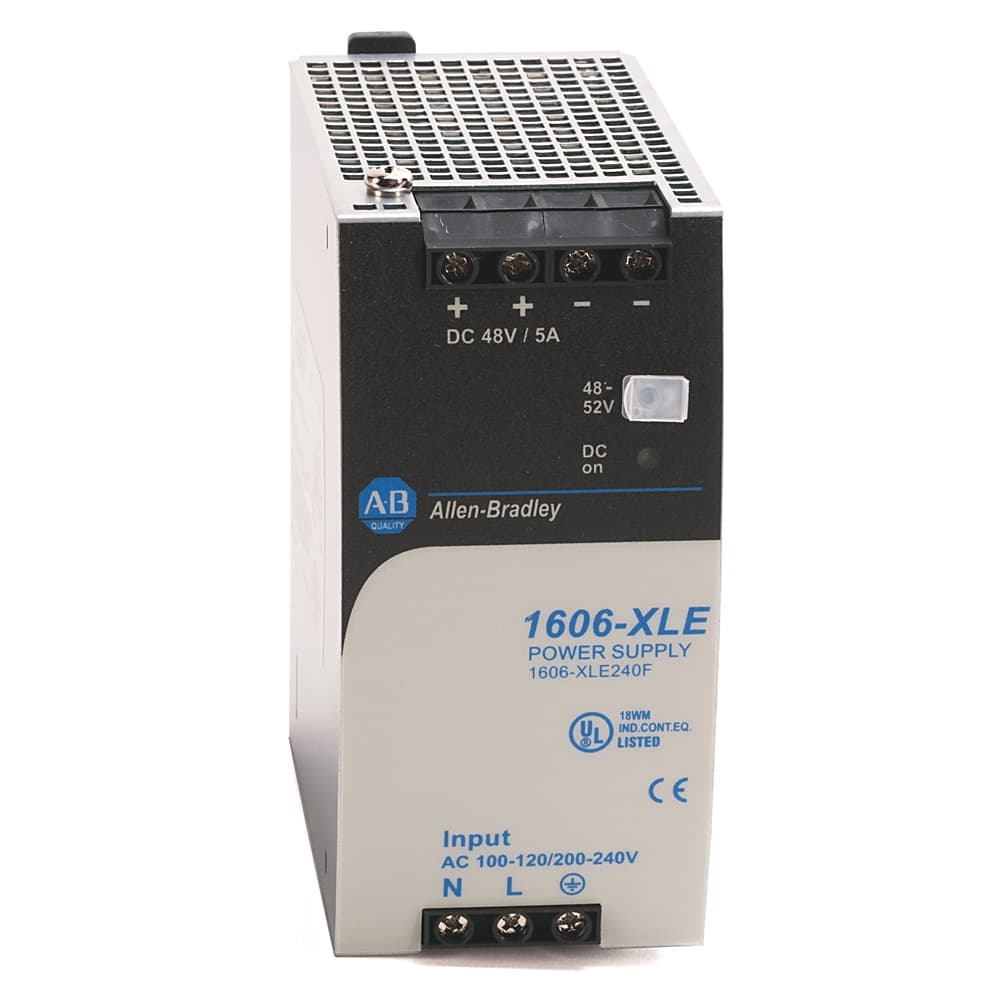

1606-XLE240F
Key Features
- 11. Ultra-Small Size: The 1606-XLE240F is designed to be ultra-small, making it ideal for installations where space is limited. Its compact design ensures efficient use of panel space, enhancing overall system integration.;
- 22. Extra-Low Inrush Current: This power supply features an extra-low inrush current, which reduces the initial surge in current when the power supply is turned on. This feature helps in preventing damage to the system and ensures smooth startup.;
- 33. Superior Efficiency and Temperature Rating: The 1606-XLE240F boasts superior efficiency with a typical efficiency of 91.0% at 120V AC and 91.6% at 230V AC. It also operates within a wide temperature range of -25°C to +70°C, ensuring reliable performance under various environmental conditions.;
- 44. Auto-Select Input: The power supply features an auto-select input, which simplifies worldwide installation and usage. This auto-select input ensures that the power supply can handle different input voltages without the need for manual adjustments, reducing the risk of defects or system failures.;
- 55. Built-in Redundancy Modules: The 1606-XLE240F is designed with built-in redundancy modules, ensuring continuous power supply to the load. This feature is crucial in critical applications where downtime is not acceptable, providing a reliable backup power source.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | STOCKED | Dimension Length | 15.189 |
| Dimension Width | 14.3 | Lead Time | 5 |
| Dimension Height | 9.296 | Quick Turnaround | false |
| Preferred Availability | true | Repairable | NOT_REPAIRABLE |
| Weight | 0.785 | Relative humidity | 5 to 95 % |
| Lifetime, min | 96 kh (+40 °C) | Storage temperature | -25 °C |
| Operating temperature | -25 °C | Ripple and noise, max | 100 mV |
| Vibration | 2 g | Wall mounting possible | Yes |
| MTBF | 830 kh (40 °C, SN29500) | Shock | 30 G, 6ms 20 G, 11ms |
| Type of electric connection | Screw connection | Degree of protection (IP) | IP20 |
| Width | 60 mm | Direct mounting possible | No |
| Depth | 117 mm | Height | 124 mm |
| Stabilized | Yes | Rail mounting possible | Yes |
| Output voltage stabilized | Yes | Rated input current | <1.3A @ 115V |
| Special family function | Dynamic 120% power boost under 45C Degree | Input inrush current | 3 A/3 A |
| Efficiency | 91.6% typical | Hold-up time | >46 ms @ 120V |
| Sub group | Essential line | Power losses | 22.0 W typical |
| External input fuse, min | B-10 A or C-6 A | Rated output current | 5A @ 48V AC |
| Operational range | 90â¦132V AC | Power factor | 0.51 typical |
| Adjustment range | 48 V | Derating | 6 w/°c |
| Power reserves | 20 % | Rated supply voltage at AC 60 Hz | 200 V |
| Rated supply voltage at AC 50 Hz | 200 V | 1st secondary output voltage | 48 V |
| Voltage type of supply voltage | AC | Power output | 240 W |
| Nominal value output current 1 | 5 A | Max. output current 1 | 5 A |
| Secondary voltage adjustable | Yes | Nominal value output voltage 1 | 48 V |
| Product Family | Power Supply XLE |
Specifications may be subject to change without notice
