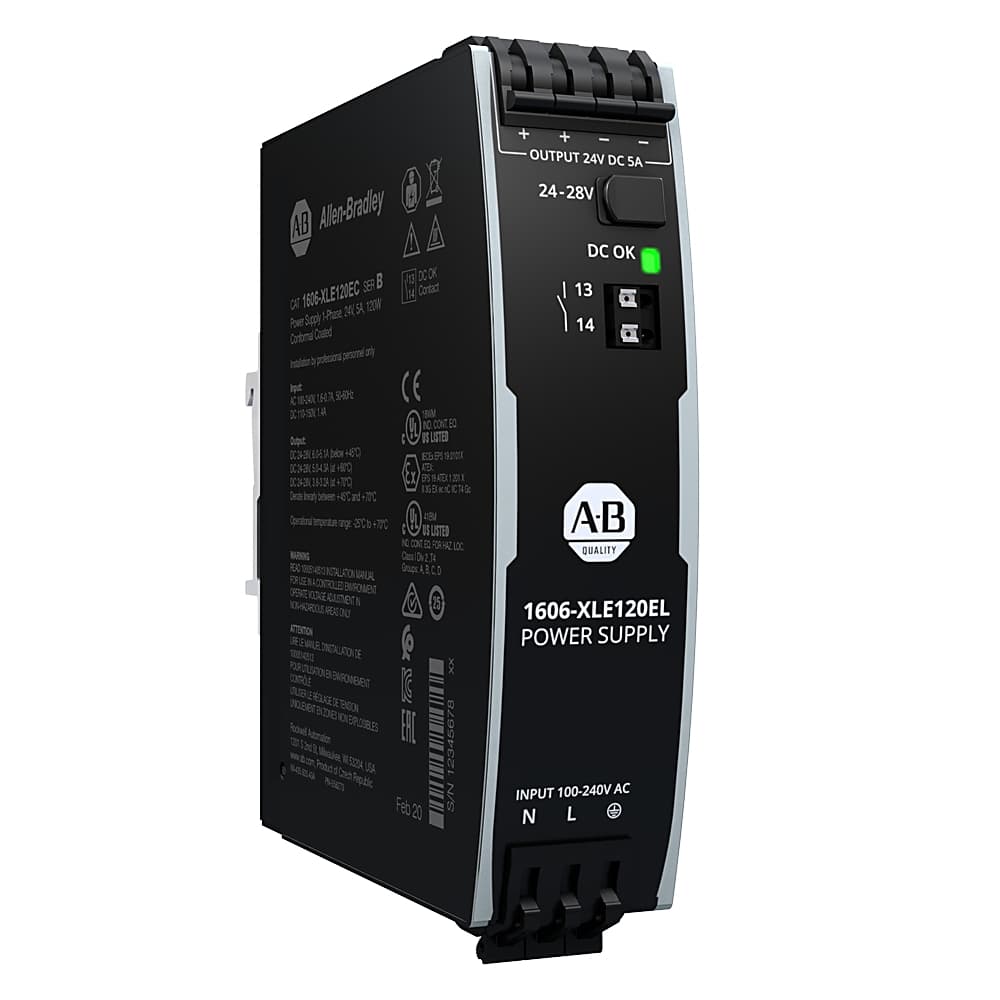

Product Model
1606-XLE120EL
Key Features
- 11. Compact Design: The Allen Bradley 1606-XLE120EL features a compact design, making it perfect for space-saving installations. Its compact size allows for easy integration into smaller panels, reducing installation space requirements.;
- 22. Wide Input Voltage Range: This power supply can handle single and multi-phase AC and DC input voltages, providing flexibility in various industrial environments. It supports a wide range of input voltages, ensuring compatibility with different systems.;
- 33. Efficient Performance: Designed for efficient performance, the 1606-XLE120EL achieves up to 96% higher input conversion efficiency, resulting in less heat waste and improved overall system reliability.;
- 44. Power Boost Option: The power supply includes a power boost option for specific durations, accommodating high inrush currents. This feature ensures that the power supply can handle sudden spikes in current without compromising performance.;
- 55. Built-in Redundancy: Equipped with built-in redundancy modules, the 1606-XLE120EL ensures continuous power supply to the load. This feature is crucial for critical applications where downtime is not acceptable, providing a reliable backup in case of primary power failure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | NON_STOCKED | Dimension Length | 15.24 |
| Dimension Width | 13.97 | Lead Time | 5 |
| Dimension Height | 6.35 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | NOT_REPAIRABLE |
| Weight | 0.696 | Lifetime, min | 166 kh (+40 °C) |
| Operating temperature | -25 °C | Ripple and noise, max | 50 mV |
| Wall mounting possible | Yes | MTBF | 867 kh (+40 °C, SN29500) |
| Type of electric connection | Spring clA connection | Degree of protection (IP) | IP20 |
| Width | 32 mm | Direct mounting possible | No |
| Depth | 102 mm | Height | 124 mm |
| Stabilized | Yes | Rail mounting possible | Yes |
| Output voltage stabilized | Yes | Input inrush current | 4 A/3 A |
| Efficiency | 94.3 % typical | Derating | 3 W/°C |
| Power losses | 7.3 W typical | External input fuse, min | B-6A or C-6 A |
| Output current range | 5 to 4.3 A | Power factor | 0.91 typical |
| Input inrush current limiter | Active | DC OK relay contact | Yes |
| Power reserves | 20 % | Rated supply voltage at DC | 110 V |
| Rated supply voltage at AC 60 Hz | 100 V | Rated supply voltage at AC 50 Hz | 100 V |
| 1st secondary output voltage | 24 V | Voltage type of supply voltage | AC/DC |
| Power output | 120 W | Nominal value output current 1 | 5 A |
| Max. output current 1 | 5 A | Secondary voltage adjustable | Yes |
| Nominal value output voltage 1 | 24 V |
Specifications may be subject to change without notice
