Product Model

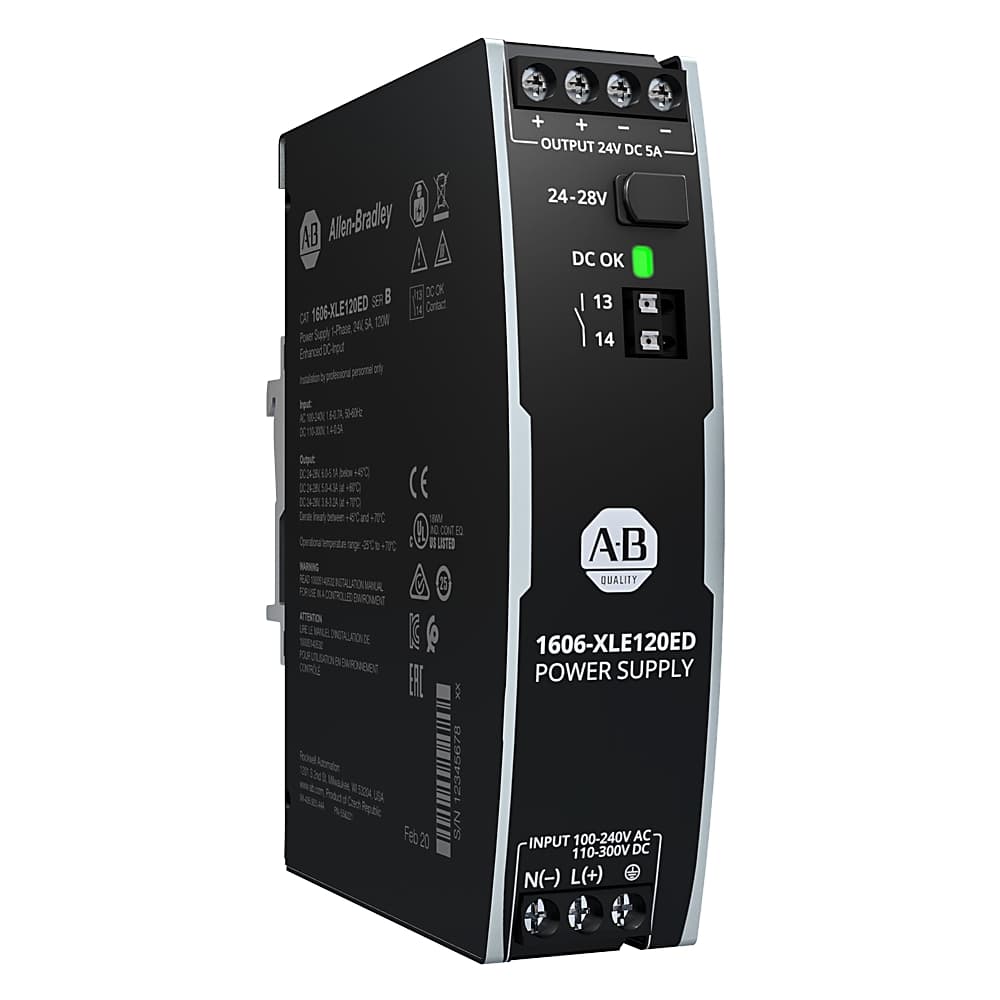

1606-XLE120ED
Key Features
- 11. Compact Design: The Allen Bradley 1606-XLE120ED features a compact design that enables space savings in the panel, making it perfect for installations where space is limited.;
- 22. Efficient Performance: Designed for efficient performance, this power supply achieves up to 96% higher input conversion, resulting in less heat waste and improved overall efficiency.;
- 33. Wide Input/Output Voltage Range: Capable of handling single and multi-phase AC and DC input voltages, the 1606-XLE120ED offers output voltages ranging from 5V DC to 48V DC, catering to a variety of industrial applications.;
- 44. Built-in Redundancy: Equipped with built-in redundancy modules, this power supply ensures continuous power supply to the load, minimizing downtime and ensuring reliable operation.;
- 55. Power Boost Option: The power boost option in select models accommodates high inrush currents, providing a reliable power supply even during peak demand periods.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | NON_STOCKED | Dimension Length | 15.24 |
| Dimension Width | 14.288 | Lead Time | 65 |
| Dimension Height | 6.033 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | NOT_REPAIRABLE |
| Weight | 0.884 | Lifetime, min | 166 kh (+40 °C) |
| Operating temperature | -25 °C | Ripple and noise, max | 50 mV |
| Wall mounting possible | Yes | MTBF | 867 kh (+40 °C, SN29500) |
| Type of electric connection | Screw connection | Degree of protection (IP) | IP20 |
| Width | 32 mm | Direct mounting possible | No |
| Depth | 102 mm | Height | 124 mm |
| Stabilized | Yes | Rail mounting possible | Yes |
| Output voltage stabilized | Yes | Input inrush current | 4 A/3 A |
| Efficiency | 94.3 % typical | Derating | 3 W/°C |
| Power losses | 7.3 W typical | External input fuse, min | B-6A or C-6 A |
| Output current range | 5 to 4.3 A | Power factor | 0.91 typical |
| Input inrush current limiter | Active | DC OK relay contact | Yes |
| Power reserves | 20 % | Rated supply voltage at DC | 110 V |
| Rated supply voltage at AC 60 Hz | 100 V | Rated supply voltage at AC 50 Hz | 100 V |
| 1st secondary output voltage | 24 V | Voltage type of supply voltage | AC/DC |
| Power output | 120 W | Nominal value output current 1 | 5 A |
| Max. output current 1 | 5 A | Secondary voltage adjustable | Yes |
| Nominal value output voltage 1 | 24 V |
