Product Model

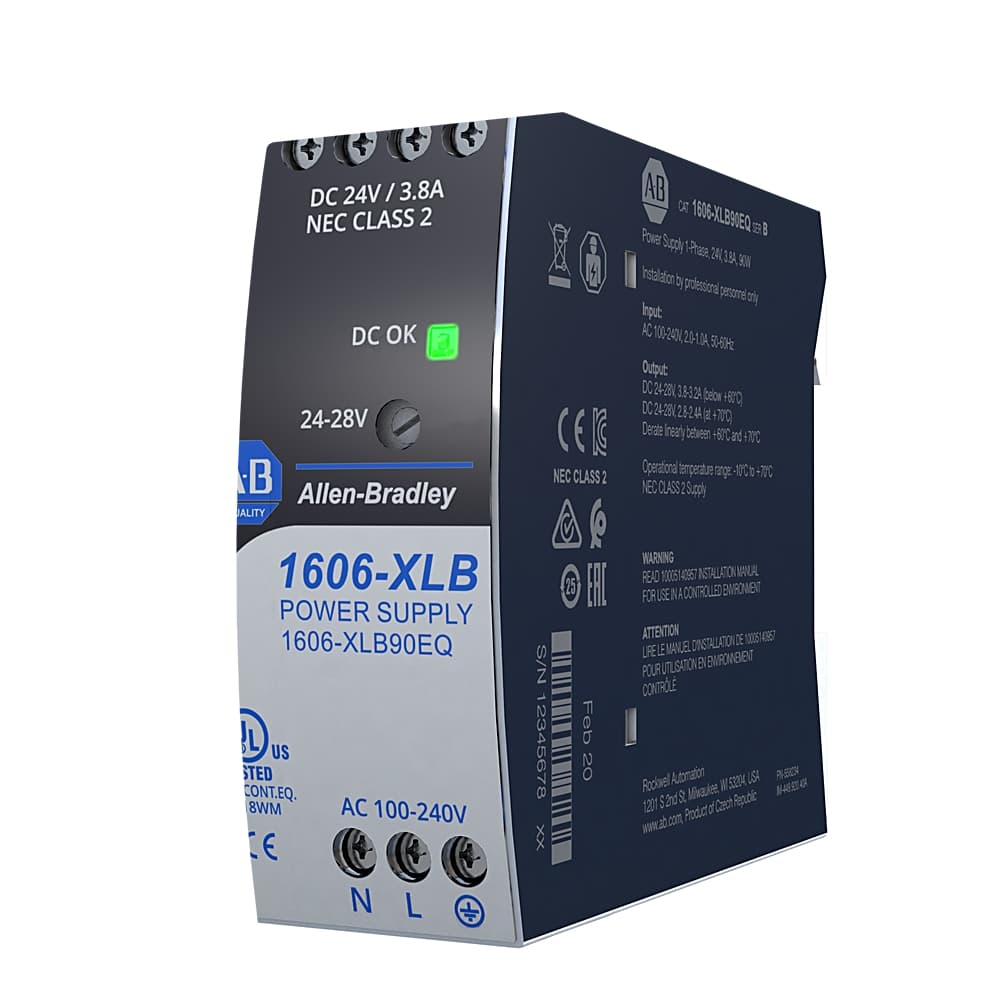

1606-XLB90EQ
Key Features
- 11. High Efficiency: The 1606-XLB90EQ boasts an efficiency of 93.8%, ensuring minimal power loss and optimal performance.;
- 22. Stable Output Voltage: With an output voltage stabilized at 24VDC, this power supply provides consistent power to your devices, ensuring reliable operation.;
- 33. Wide Operating Temperature Range: The unit can operate from -10°C to 70°C, making it suitable for a variety of industrial environments.;
- 44. Easy DIN Rail Mounting: Designed for easy installation on any standard DIN rail, this power supply simplifies your setup process and saves space.;
- 55. NEC Class 2 Certification: Certified as NEC Class 2, this power supply meets safety standards for industrial applications, providing peace of mind for your equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | STOCKED | Dimension Length | 11.684 |
| Dimension Width | 9.398 | Lead Time | 5 |
| Dimension Height | 4.318 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | NOT_REPAIRABLE |
| Wire diameter, max | 2.8 mm | Wire stripping length | 7 mm |
| Weight | 0.302 | Lifetime, min | 102 kh (+40 °C) |
| Operating temperature | -10 °C | Ripple and noise, max | 100 mV |
| Tightening torque | 1 nm | Wall mounting possible | Yes |
| MTBF | 1507 khr (+40 °C, SN29500) | Width | 36 mm |
| Direct mounting possible | Yes | Depth | 91 mm |
| Height | 90 mm | Wire size, max | 4 mm2 (litz wire) |
| Output current range | 3.8 A | Auto select input | Yes |
| Wide range | Yes | Stabilized | Yes |
| Rail mounting possible | Yes | Output voltage stabilized | Yes |
| Special feature | NEC Class 2 | Input voltage | Single-phase |
| Input inrush current | 8 A/40 A (output transient current) | Efficiency | 93.8% typical |
| Derating | 2.3 W/°C (From 60 to 70 °C) | Hold-up time | 25 / 119 ms @ 120/230V AC |
| Power losses | 7.9/6.0 W typical | External input fuse, min | B-6 A or C-6 A |
| Power factor | 0.45 typical | Connection terminals | Screw |
| Input inrush current limiter | NTC | DC OK relay contact | No |
| Rated supply voltage at AC 60 Hz | 100 V | Rated supply voltage at AC 50 Hz | 100 V |
| 1st secondary output voltage | 24 V | Voltage type of supply voltage | AC |
| Power output | 90 W | Nominal value output current 1 | 3.8 A |
| Secondary voltage adjustable | Yes | Nominal value output voltage 1 | 24 V |
Specifications may be subject to change without notice
