Product Model

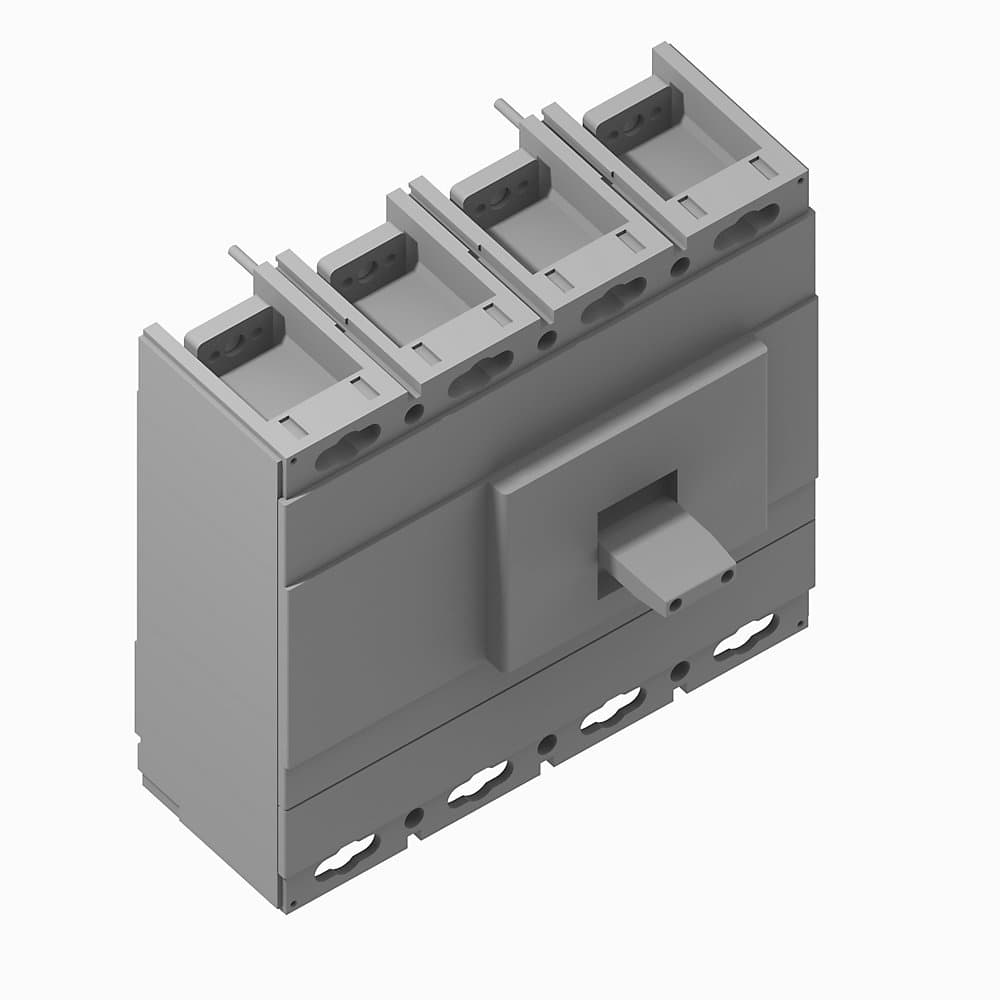

140G-M0F4-D60-AA
Key Features
- 11. High-Performance Design The Allen-Bradley 140G-M0F4-D60-AA is engineered to provide reliable and efficient power distribution, ensuring your industrial systems run smoothly.;
- 22. Thermal-Magnetic Protection Equipped with thermal-magnetic protection, this circuit breaker offers robust protection against overloads and short circuits, safeguarding your equipment and personnel.;
- 33. 800A Frame Capacity Designed for 800A frames, this breaker can handle high current levels, making it suitable for demanding industrial applications.;
- 44. 3-Pole Configuration The 3-pole configuration allows for balanced and efficient power distribution, ensuring that your system operates at optimal levels.;
- 55. IEC 600 V DC Interrupting Rating With an interrupting rating of 50kA at 600V DC, this breaker provides exceptional performance in high-voltage DC systems, ensuring reliable operation even in challenging environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | NON_STOCKED | Dimension Length | 29.6 |
| Dimension Width | 37.2 | Lead Time | 15 |
| Dimension Height | 31.0 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | NOT_REPAIRABLE |
| Ambient temperature without derating | 104 °F | Rated uninterrupted current (Iu) | 98% of current rating @ 3000 m (9840 ft) altitude |
| Operational voltage (Ue) | 90% of voltage rating @ 3000 m (9840 ft) altitude | Wire temperature rating | Al or Cu 75 °C |
| Storage temperature | -40 °F | Depth | 103.5 mm |
| Width | 280 mm | Device construction | Built-in device fixed built-in technique |
| Height | 268 mm | Factory option | 1 NO/NC auxiliary + 1 alarm, 250V AC/DC |
| Vibration | 2...13.2 Hz ±1 mm, 13.2...100 Hz ±0.7 G | Mechanical life operations | 20000 /h |
| Weight | 12.136 | Degree of protection (IP) | IP40 |
| DIN rail (top hat rail) mounting optional | True | Suitable for DIN rail (top hat rail) mounting | False |
| Type of electrical connection of main circuit | Screw connection | Position of connection for main current circuit | Front side |
| Motor drive optional | True | With switched-off indicator | False |
| Motor drive integrated | False | Protection type | T/M-adjustable thermal/adjustable magnetic TMA |
| Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 75% Icu @ 750V DC, 3-poles in series, thermal-magnetic trip units only | Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 80kA @ 440V AC, 50/60 Hz |
| Interrupting rating | 50kA @ 600V DC, 3-pole in series, thermal-magnetic trip only per NEMA, UL, CSA | Electrical life cycle | 7000 (600...630 A)/5000 (800 A) @ 415V AC |
| Thermal trip rating, max | 600 A @ ambient temperature 40 °C | Insulation voltage (Ui) | Rated 1000V per IEC |
| Watt loss | Thermal magnetic type: 120 W | Voltage for reverse-fed circuit breaker, max | 690V AC per IEC |
| Magnetic trip current (Im) | 3000 A | Thermal trip current (Ir) | 420 A |
| Current range | 80% MCCB | Frame size | 800 A |
| Rated impulse withstand voltage (Uimp) | 8 kV | Type of control element | Toggle |
| Rated permanent current Iu | 600 A | Complete device with protection unit | True |
| Integrated earth fault protection | False | With integrated under voltage release | False |
| Number of auxiliary contacts as change-over contact | 1 | Number of poles | 4 |
Specifications may be subject to change without notice
