Product Model

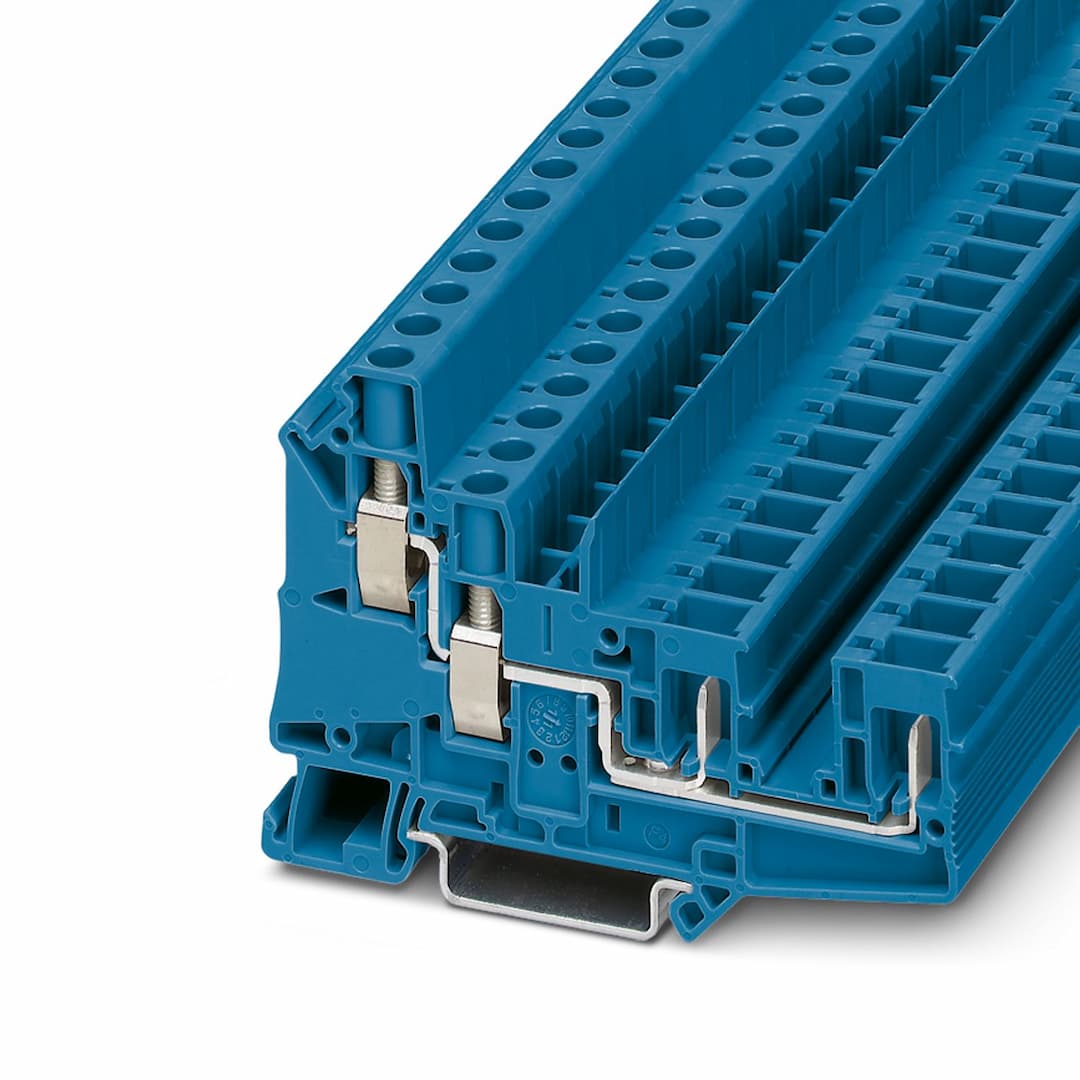

UT 6-QUATTRO/2P BU
Key Features
- 1Handles up to 41A with a 10mm² conductor cross section.
- 2Supports nominal voltage of 1000V.
- 3Made with PA material, rated for UL 94 V0 flammability.
- 4Screw/plug-in connection method for quick setup.
- 5Measures 8.2mm in width, perfect for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| General | The max. load current must not be exceeded by the total current of all connected conductors. | Product type | Plug-in terminal block |
| Number of connections | 4 | Number of rows | 1 |
| Potentials | 1 | Article revision | 03 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 1.31 W |
| Number of connections per level | 4 | Nominal cross section | 6 mm² |
| Rated cross section AWG | 8 | Screw thread | M4 |
| Tightening torque | 1.5 ... 1.8 Nm | Stripping length | 10 mm |
| Internal cylindrical gage | A5 | Connection in acc. with standard | IEC 61984 |
| Conductor cross section rigid | 0.2 mm² ... 10 mm² | Cross section AWG | 24 ... 8 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 10 mm² | Conductor cross section, flexible [AWG] | 24 ... 8 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 6 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 6 mm² |
| 2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 2.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 4 mm² |
| Nominal current | 41 A | Maximum load current | 41 A (with 10 mm² conductor cross section) |
| Nominal voltage | 1000 V | Nominal cross section | 6 mm² |
| Width | 8.2 mm | End cover width | 2.2 mm |
| Height | 86.5 mm | Depth on NS 35/7,5 | 60 mm |
| Depth on NS 35/15 | 67.5 mm | Color | blue (RAL 5015) |
| Flammability rating according to UL 94 | V0 | Insulating material group | I |
| Insulating material | PA | Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Test voltage setpoint | 9.8 kV | Result | Test passed |
| Short-time withstand current 6 mm² | 0.72 kA | Result | Test passed |
| Test voltage setpoint | 2.2 kV | Result | Test passed |
| Open side panel | Yes | DIN rail/fixing support | NS 35 |
| Result | Test passed | Insertion/withdrawal cycles | 100 |
| Time of exposure | 30 s | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Spectrum | Service life test category 1, class B, body mounted |
| Frequency | f | ASD level | 0.964 (m/s²)²/Hz |
| Acceleration | 0.58g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Pulse shape | Half-sine |
| Acceleration | 5g | Shock duration | 30 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed | Ambient temperature (operation) | -60 °C (max. operating temperature see derating curve) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 61984 |
| Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
