Product Model

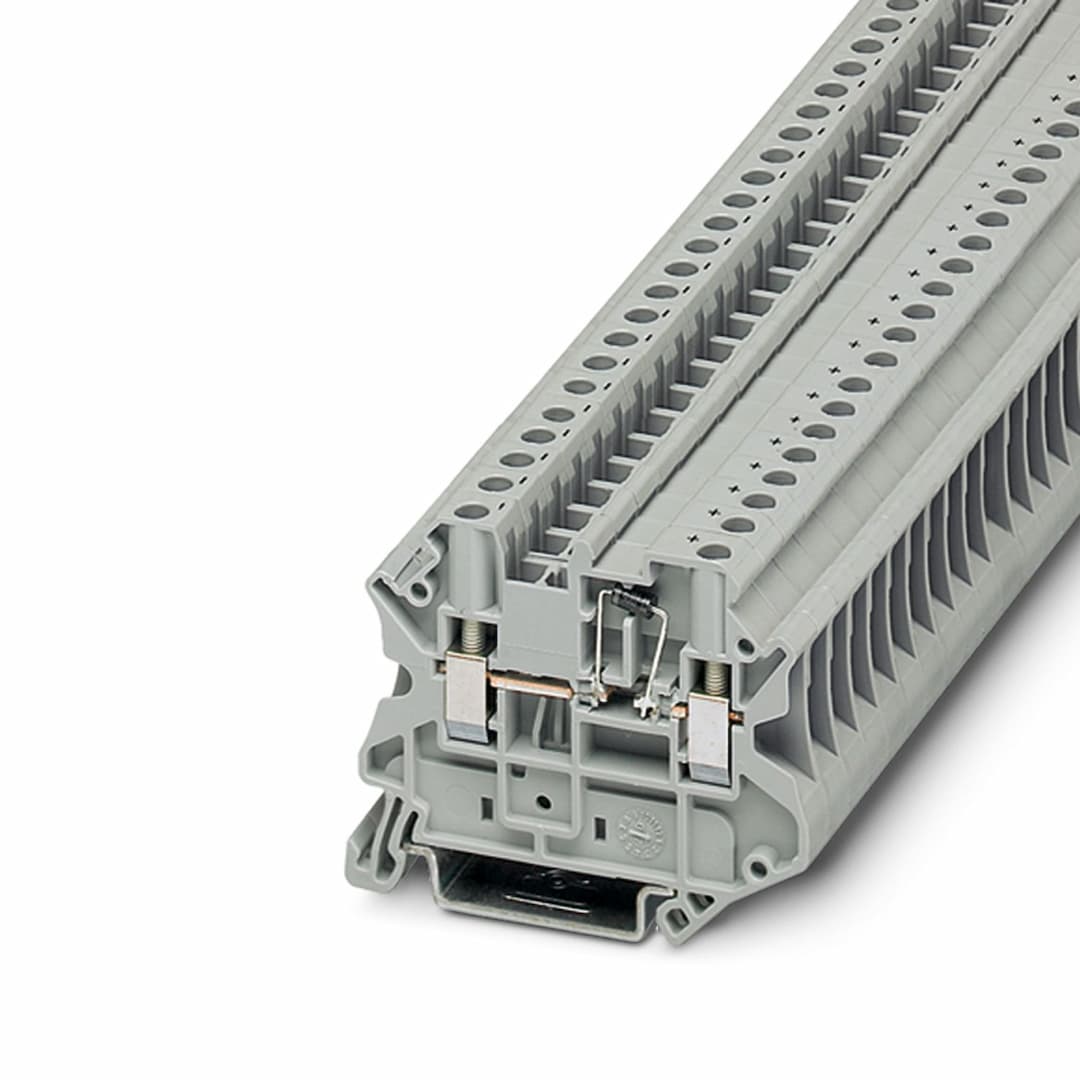

UT 4-MTD-DIO/R-L
Key Features
- 1Ensures maximum current handling with a reverse voltage of 1300 V and a maximum continuous current of 0.5 A.
- 2Easy and secure connection method for reliable electrical connections.
- 3Measuring 6.2 mm in width and 57.8 mm in length, perfect for space-constrained applications.
- 4Compliant with UL 94 V0 and DIN EN 50274 (VDE 0660-514) for enhanced safety and reliability.
- 5Suitable for various conductor cross sections from 0.14 mm² to 6 mm², accommodating different electrical needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| General | The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A. | Product type | Component terminal block |
| Number of connections | 2 | Number of rows | 1 |
| Potentials | 1 | Article revision | 11 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated insulation voltage | 800 V | Rated surge voltage | 8 kV |
| Number of connections per level | 2 | Nominal cross section | 4 mm² |
| Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
| Stripping length | 9 mm | Internal cylindrical gage | A4 |
| Conductor cross section rigid | 0.14 mm² ... 6 mm² | Cross section AWG | 26 ... 10 (converted acc. to IEC) |
| Conductor cross section flexible | 0.14 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 26 ... 10 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 4 mm² |
| 2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| Nominal current | 0.5 A | Maximum load current | 0.5 A |
| Nominal cross section | 4 mm² | Component type | Diode 1N4007 |
| Reverse voltage | 1300 V | Width | 6.2 mm |
| End cover width | 2.2 mm | Height | 57.8 mm |
| Depth on NS 35/7,5 | 47.5 mm | Depth on NS 35/15 | 55 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Test voltage setpoint | 9.8 kV |
| Result | Test passed | Test voltage setpoint | 2 kV |
| Result | Test passed | Open side panel | Yes |
| Result | Test passed | DIN rail/fixing support | NS 35 |
| Test force setpoint | 1 N | Result | Test passed |
| Rotation speed | 10 rpm | Revolutions | 135 |
| Conductor cross section/weight | 0.14 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg | Result | Test passed |
| Time of exposure | 30 s | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Spectrum | Service life test category 1, class B, body mounted |
| Frequency | f | ASD level | 0.02g²/Hz |
| Acceleration | 0.8g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Pulse shape | Half-sine |
| Acceleration | 5g | Shock duration | 30 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | NS 35/7,5
NS 35/15 |
