Product Model

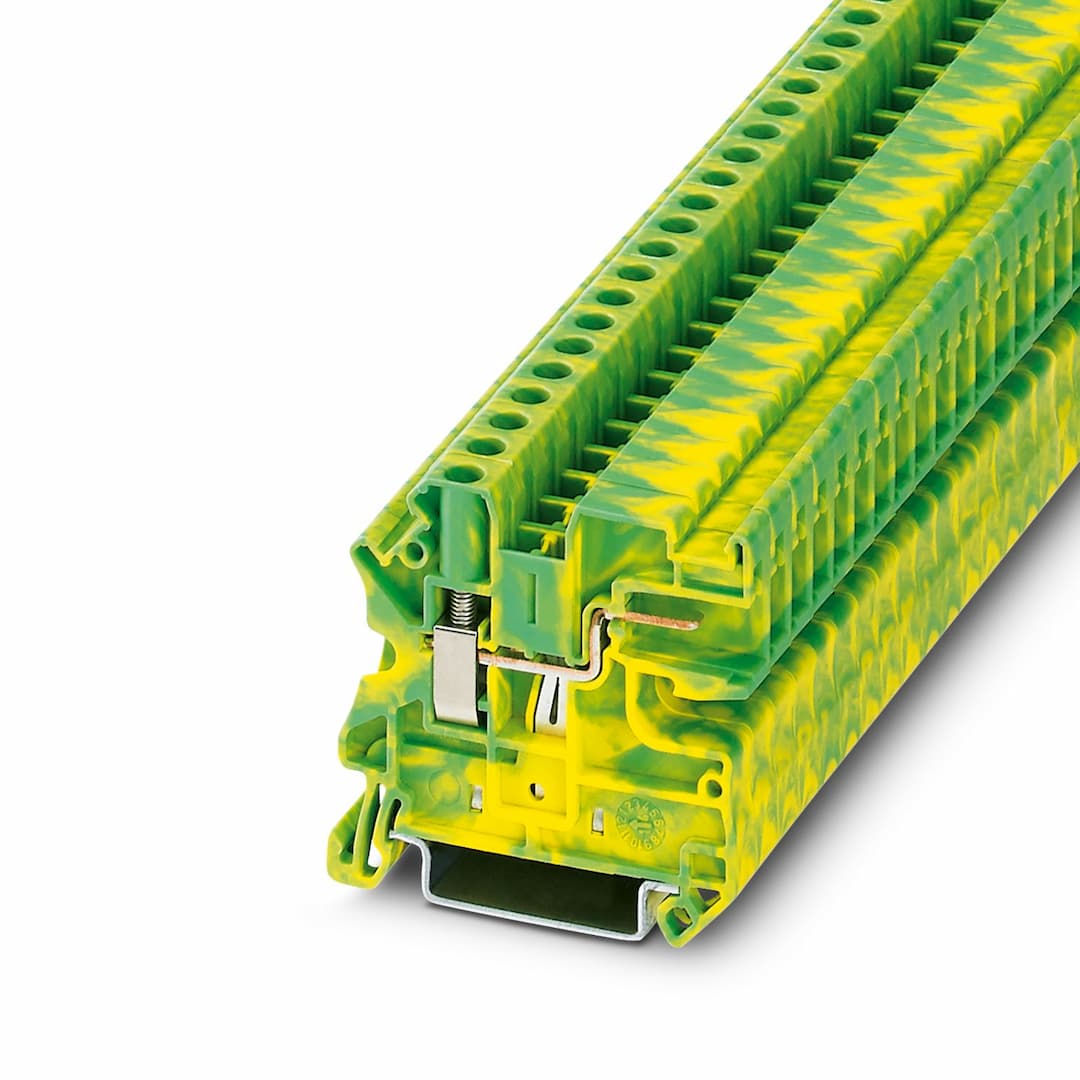

UT 4/ 1P-H-PE
Key Features
- 1High Amperage Rating: Handles up to 10 Amps for robust electrical connections.
- 2Compact Design: Measuring 6.2 mm in width, perfect for space-constrained applications.
- 3Push-in Connection: Easy to use with push-in connections for quick assembly.
- 4Fused for Safety: Equipped with a fuse terminal block for enhanced safety features.
- 5Versatile Applications: Suitable for various industries including machine building and process industry.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| General | Current and voltage are determined by the plug used. | Note | With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces. |
| Product type | Ground terminal block | Number of connections | 2 |
| Number of rows | 1 | Article revision | 03 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 1.02 W |
| Grounding foot | Yes | Number of connections per level | 2 |
| Nominal cross section | 4 mm² | Screw thread | M3 |
| Note | Please observe the current carrying capacity of the DIN rails. | Tightening torque | 0.6 ... 0.8 Nm |
| Stripping length | 9 mm | Internal cylindrical gage | A4 |
| Connection in acc. with standard | IEC 61984 | Conductor cross section rigid | 0.14 mm² ... 6 mm² |
| Cross section AWG | 26 ... 14 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 6 mm² |
| Conductor cross section, flexible [AWG] | 26 ... 10 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 4 mm² | Width | 6.2 mm |
| End cover width | 2.2 mm | Height | 49.8 mm |
| Depth on NS 35/7,5 | 47.5 mm | Depth on NS 35/15 | 55 mm |
| Color | green-yellow | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Open side panel | Yes |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Spectrum | Service life test category 1, class B, body mounted |
| Frequency | f | ASD level | 0.964 (m/s²)²/Hz |
| Acceleration | 0.58g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Pulse shape | Half-sine |
| Acceleration | 5g | Shock duration | 30 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed | Ambient temperature (operation) | -60 °C (max. operating temperature see derating curve) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 61984 |
| Mounting type | NS 35/7,5
NS 35/15 |
