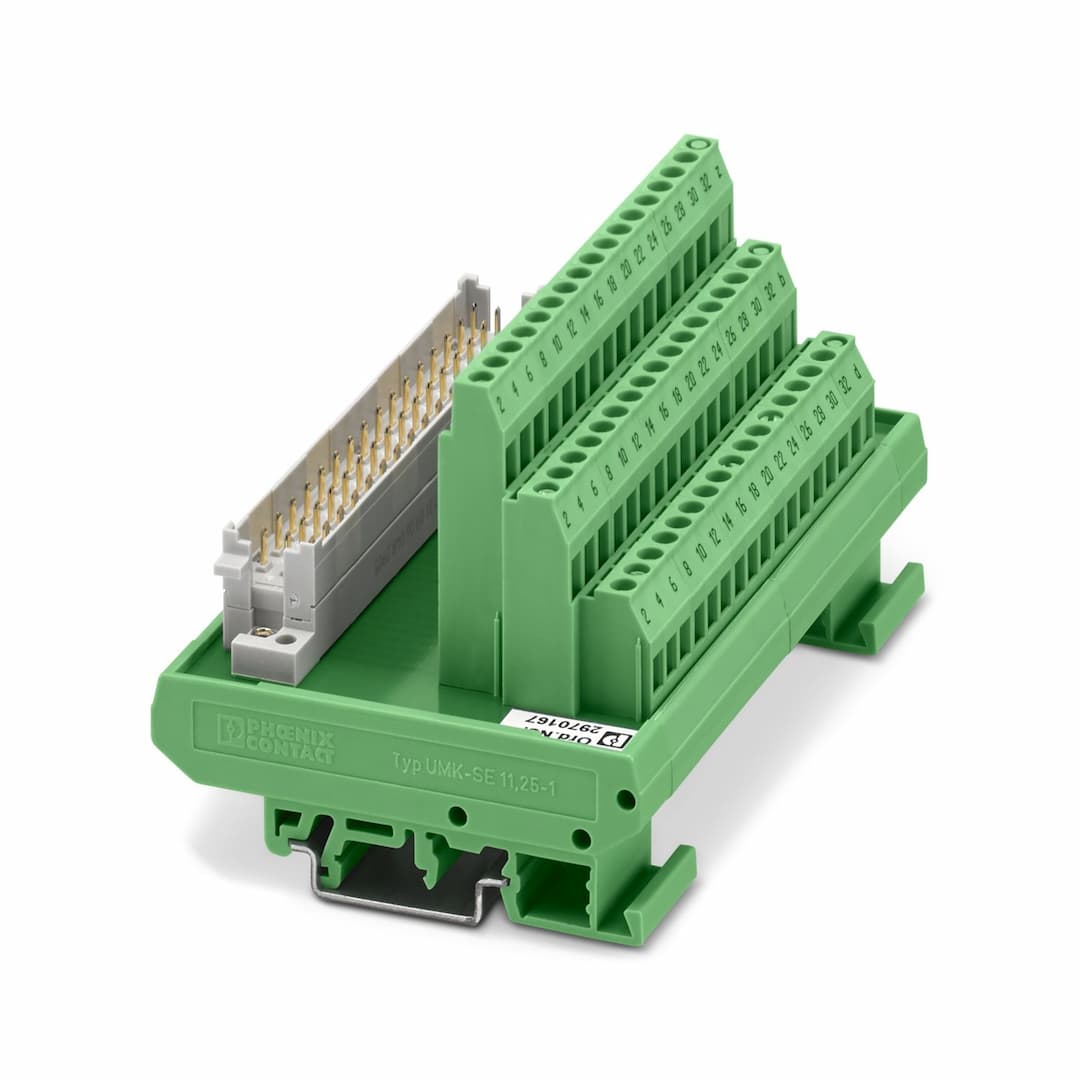

Product Model
UMKS- F48F-VS
Key Features
- 1High-voltage compatibility up to 250V AC.
- 248-position connector for versatile applications.
- 3Robust construction with screw interlock for secure cable housing.
- 4Compliant with WEEE/RoHS regulations since 2007.
- 5Suitable for ambient temperatures from -20°C to 45°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VARIOFACE |
| Number of positions | 48 | Nominal voltage U | 250 V AC |
| Max. current carrying capacity per branch | 2 A | Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Connection method | IEC 603/DIN 41612 connection | Number of connections | 1 |
| Number of positions | 48 | Status display present | No |
| Width | 123.8 mm | Height | 77 mm |
| Depth | 72 mm | Color | green (RAL 6021) |
| Housing insulation material | Polyamide PA non-reinforced | Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
| Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
