Product Model

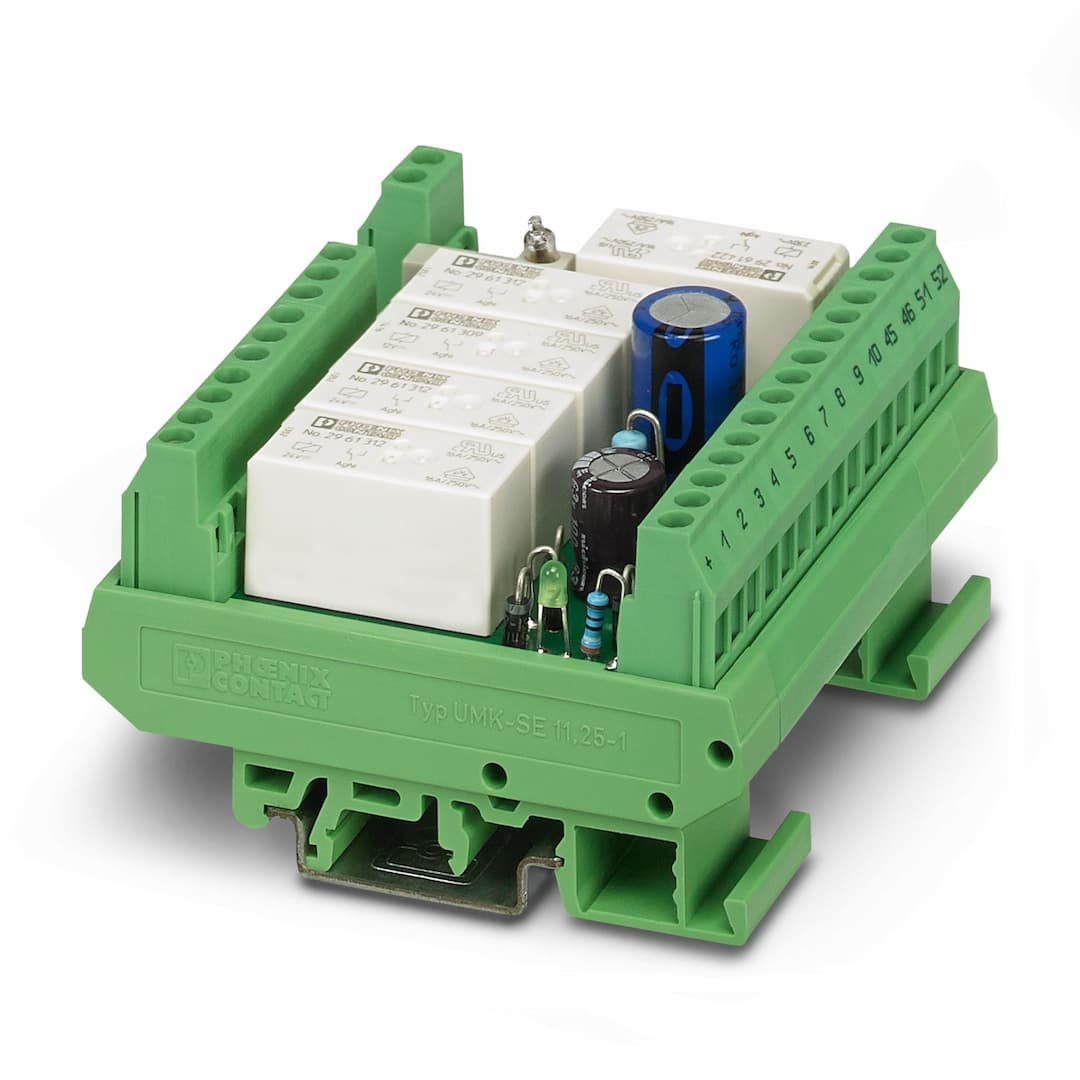

UMK- 5 REL/KSR- 24/230/KRK-5S
Key Features
- 1High-Performance Reliability: Designed for industrial use with robust construction and reliable operation.
- 2Multi-Channel Capability: Features 5 channels for versatile switching applications.
- 3High Insulation Voltage: Rated at 260V for safe and efficient operation.
- 4Surge Protection: Withstands up to 6kV surge voltage for added reliability.
- 5Comprehensive Specifications: Meets RoHS compliance and includes detailed datasheets for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay Module |
| Mechanical service life | 3x 10 | Insulation | Reinforced insulation |
| Overvoltage category | III | Pollution degree | 2 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Rated insulation voltage | 260 V |
| Rated surge voltage | 6 kV (1.2/50 μs) | Rated insulation voltage | 260 V |
| Rated surge voltage | 4 kV (1.2/50 μs) | Nominal input voltage U | 24 V DC |
| Input voltage range in reference to U | 0.9 ... 1.1 | Input voltage range | 21.6 V DC ... 26.4 V DC |
| Contact switching type | Single contact, 1 changeover contact | Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC | Limiting continuous current | 6 A (Limited by the width of the conductive paths in the output) |
| Minimum switching capacity | 3000 VA | Connection method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Connection method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Width | 79 mm |
| Height | 78 mm | Depth | 45 mm |
| Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient temperature (operation) | -20 °C ... 50 °C | Altitude | ≤ 2000 m |
| Standards/regulations | DIN EN 50178: 1998-04 | Standards/regulations | DIN EN 50178: 1998-04 |
| Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
