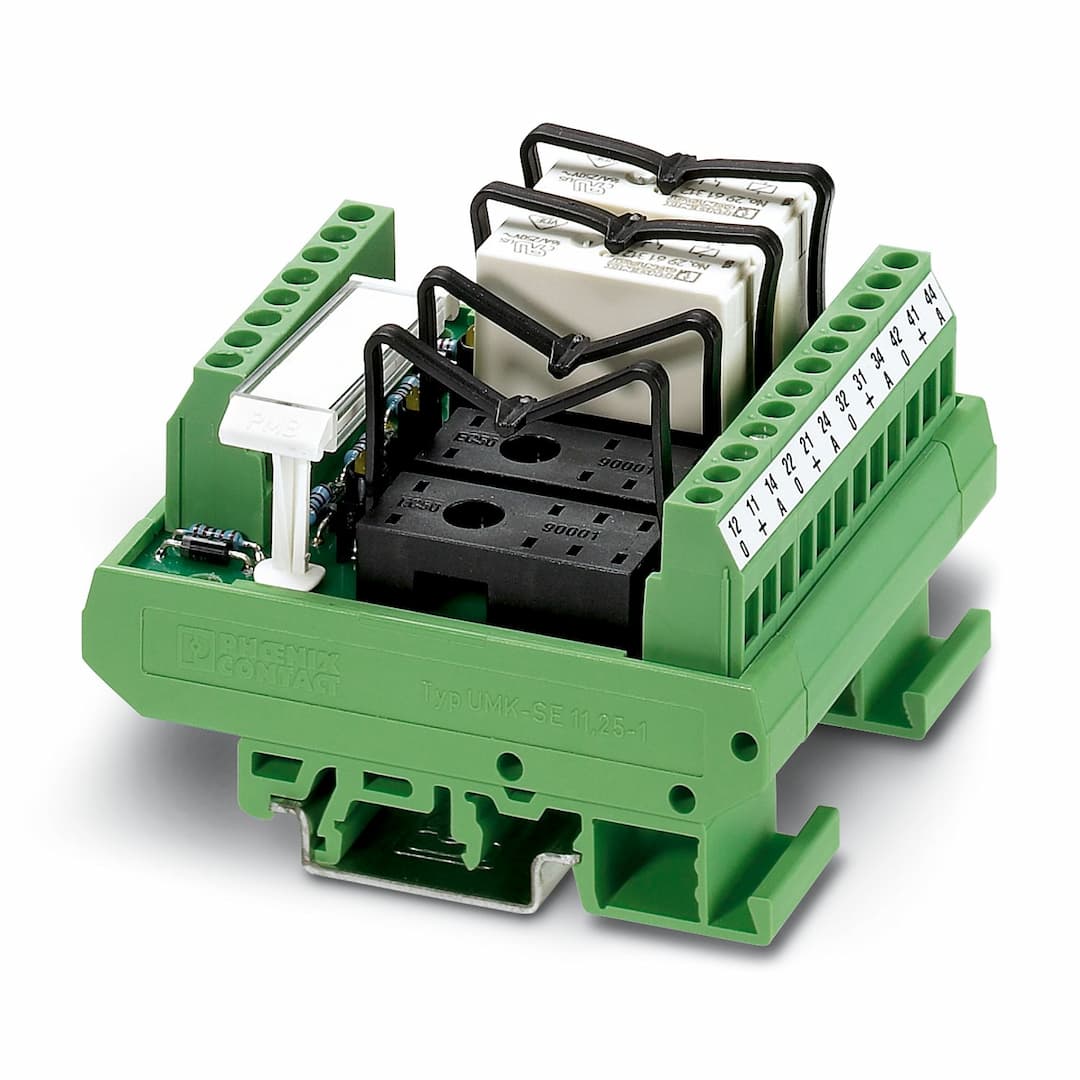

Product Model
UMK- 4 RM 12DC
Key Features
- 1Compact design with dimensions 67.5 mm x 77 mm x 59 mm.
- 2Compatible with 12 V DC input voltage and ±10% tolerance.
- 3Features yellow LED status display for channel status.
- 4Includes free-wheeling diode for protection against voltage spikes.
- 5Meets EMC class A standards and has IP20 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Multi-channel relay module |
| No. of channels | 4 | Compatible components | Miniature relays or miniature optocouplers |
| With components | no | Overvoltage category | III |
| Pollution degree | 2 | Rated insulation voltage | 260 V AC |
| Rated surge voltage | 4 kV (Basic insulation between output contact current paths)
6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths) | Nominal input voltage U | 12 V DC ±10 % |
| Protective circuit | Freewheeling diode; Freewheeling diode
Reverse polarity protection; Polarity protection diode | Operating voltage display | Yellow LED |
| Status display/channel | Yellow LED | Compatible components | Miniature relays or miniature optocouplers |
| Contact switching type | 1 changeover contact | Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 5 A | Nominal supply voltage | 250 V AC |
| Error detection (line break / short-circuit) | no | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Number of connections | 2 | Number of positions | 8 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Number of connections | 12 | Number of positions | 3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Status display present | Yes |
| Width | 67.5 mm | Height | 77 mm |
| Depth | 59 mm | Color | green (RAL 6021) |
| Degree of protection | IP00 | Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | DIN EN 50178
IEC 60664 |
| Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
