Product Model

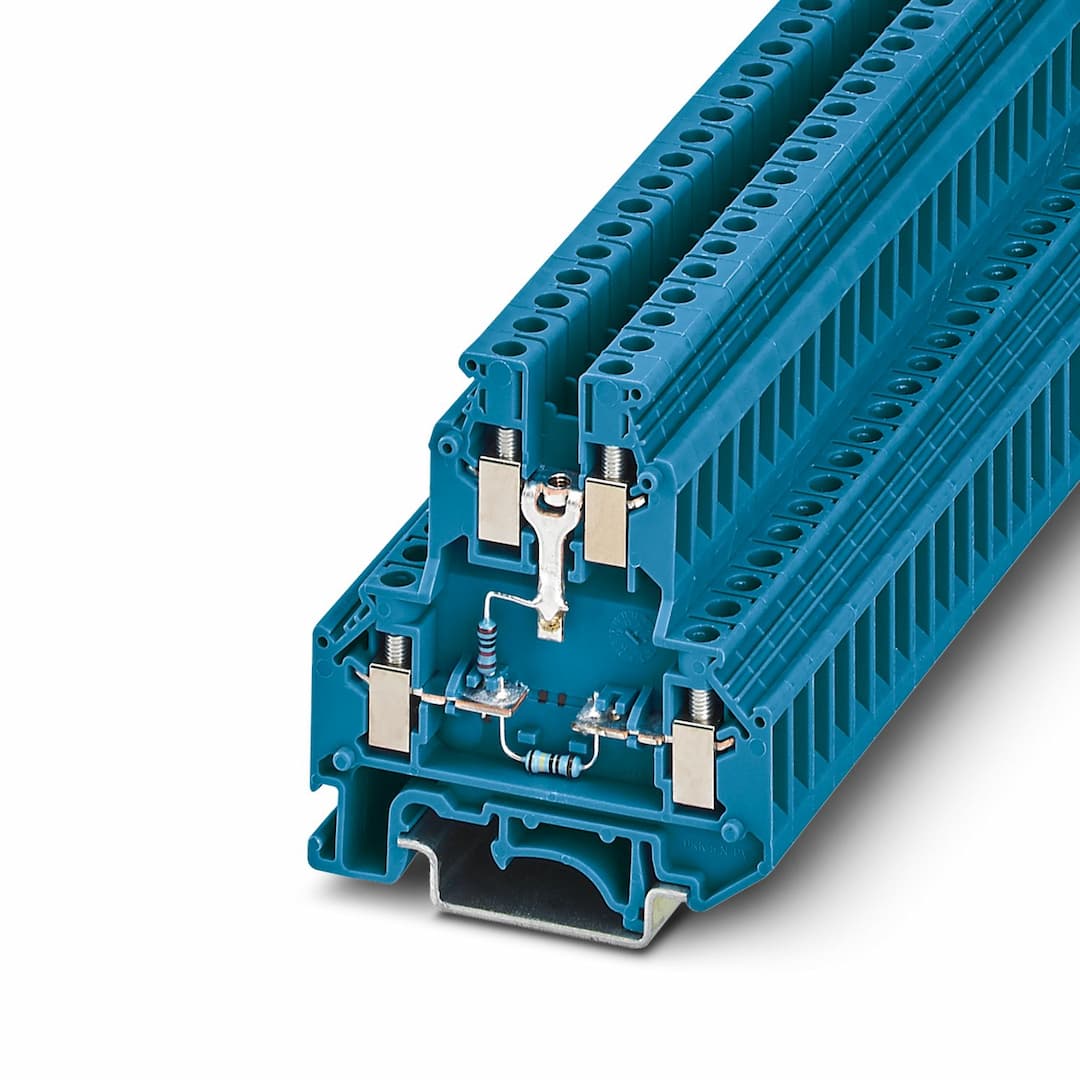

UKK 5-2R/1K4/UL-UR/10K/O-UL BU
Key Features
- 1Supports up to 500V nominal voltage.
- 2Handles nominal currents of up to 32A.
- 3Features two levels of screw connections for added flexibility.
- 4Includes two soldered-in resistors (1.4 kOhm and 10 kOhm).
- 5Made with high-quality materials, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Component terminal block | Number of connections | 4 |
| Number of rows | 2 | Potentials | 2 |
| Article revision | 08 | Overvoltage category | III |
| Degree of pollution | 3 | Rated surge voltage | 6 kV |
| Maximum power dissipation for nominal condition | 1.02 W | Number of connections per level | 2 |
| Nominal cross section | 4 mm² | Screw thread | M3 |
| Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 8 mm |
| Internal cylindrical gage | A4 | Connection in acc. with standard | IEC / EN |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Nominal current | 32 A | Maximum load current | 32 A (with 4 mm² conductor cross section) |
| Nominal voltage | 500 V (Data is based on the dielectric strength of adjacent terminal blocks or of the DINg rail.) | Nominal cross section | 4 mm² |
| Cross-section with insertion bridge, rigid | 4 mm² | Cross-section with insertion bridge, flexible | 2.5 mm² |
| Width | 6.2 mm | End cover width | 2.5 mm |
| Color | blue (RAL 5015) | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Open side panel | Yes | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC / EN |
| Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
