Product Model

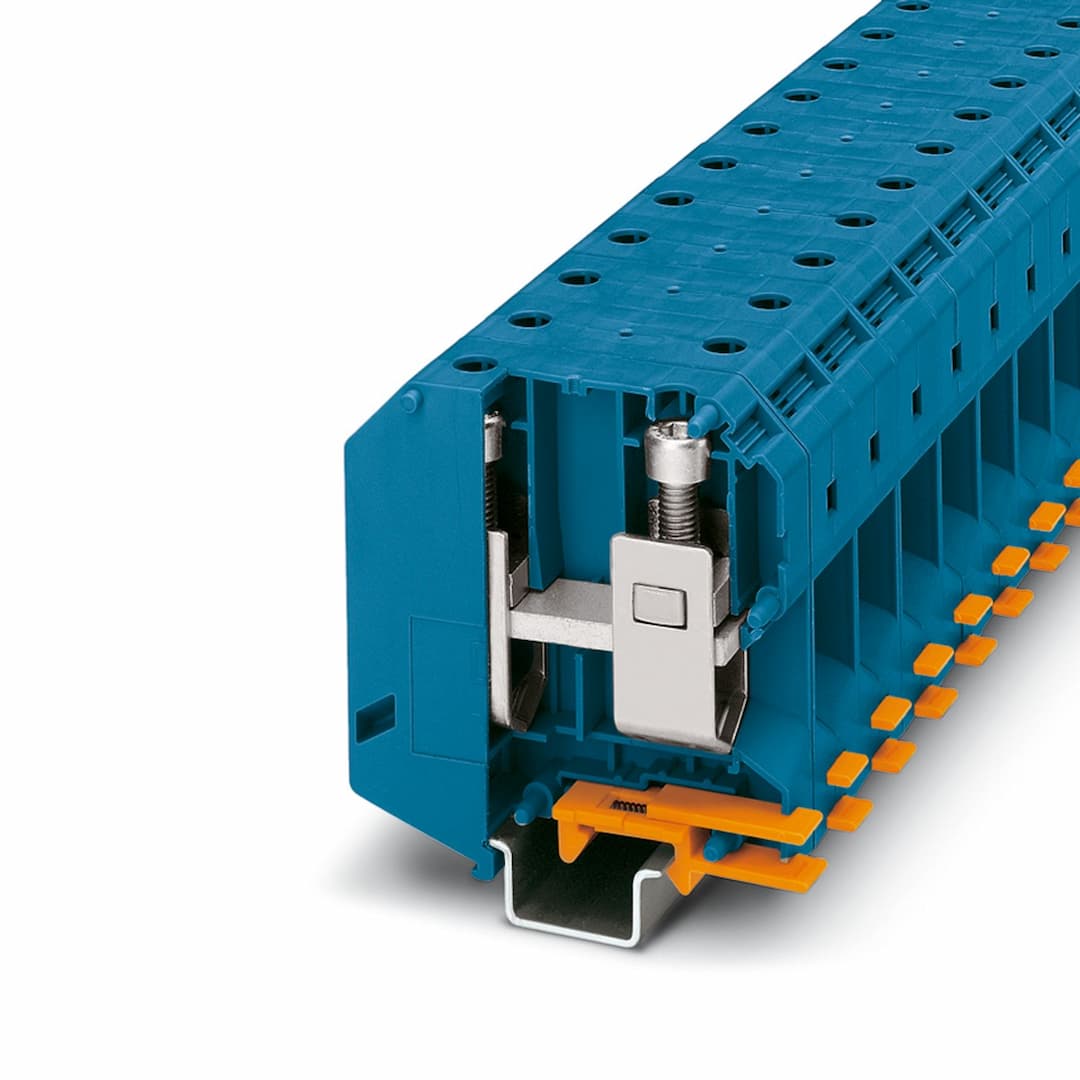

UKH 95 BU
Key Features
- 1Reliable cable connection ensured by three-point centering of the conductor in the prismatic sleeve base.
- 2Low contact resistance due to ribbing on the contact surface.
- 3Robust screw locking by means of spring-loaded elements in the clamping part.
- 4High voltage rating of 1000 V and maximum current rating of 232 A.
- 5Compatible with DIN rails (NS 35/15, NS 32) for easy mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| General | Screws with hexagonal socket | Product type | High current terminal block |
| Number of positions | 1 | Number of connections | 2 |
| Number of rows | 1 | Potentials | 1 |
| Article revision | 13 | Overvoltage category | III |
| Degree of pollution | 3 | Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 7.54 W | Number of connections per level | 2 |
| Nominal cross section | 95 mm² | Screw thread | M8 |
| Note | Screws with hexagonal socket | Tightening torque | 15 ... 20 Nm |
| Stripping length | 33 mm | Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 25 mm² ... 95 mm² | Cross section AWG | 2 ... 3/0 (converted acc. to IEC) |
| Conductor cross section flexible | 35 mm² ... 95 mm² | Conductor cross section, flexible [AWG] | 1/0 ... 3/0 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 35 mm² ... 95 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 35 mm² ... 95 mm² |
| Cross-section with insertion bridge, rigid | 95 mm² | Cross-section with insertion bridge, flexible | 70 mm² |
| 2 conductors with same cross section, solid | 25 mm² ... 35 mm² | 2 conductors with same cross section, flexible | 25 mm² ... 35 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 16 mm² ... 35 mm² | Nominal current | 232 A |
| Maximum load current | 232 A | Nominal voltage | 1000 V |
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. | Nominal cross section | 95 mm² |
| Identification | II 2 GD Ex eb IIC Gb | Operating temperature range | -60 °C ... 110 °C |
| Ex-certified accessories | 1201934 VDE-ISS 6
1201659 E/AL-NS 32
1201662 E/AL-NS 35 | List of bridges | Insertion bridge / EB 2-25/UKH / 0201362
Insertion bridge / EB 3-25/UKH / 0201375 |
| Bridge data | 177 A / 95 mm² | Ex temperature increase | 40 K (238.1 A / 95 mm²) |
| Rated voltage | 880 V | at bridging with insertion bridge | 690 V |
| Rated insulation voltage | 800 V | output | (Permanent) |
| Rated current | 216 A | Maximum load current | 216 A |
| Contact resistance | 0.06 mΩ | Torque range | 15 Nm ... 20 Nm |
| Nominal cross section | 95 mm² | Rated cross section AWG | 3/0 |
| Connection capacity rigid | 25 mm² ... 95 mm² | Connection capacity AWG | 4 ... 3/0 |
| Connection capacity flexible | 35 mm² ... 95 mm² | Connection capacity AWG | 2 ... 3/0 |
| 2 conductors with same cross section, solid | 25 mm² ... 35 mm² | 2 conductors with the same cross-section AWG rigid | 4 ... 2 |
| 2 conductors with same cross section, stranded | 25 mm² ... 35 mm² | 2 conductors with the same cross-section AWG flexible | 4 ... 2 |
| Width | 25 mm | Height | 83 mm |
| Depth | 90 mm | Depth on NS 32 | 95 mm |
| Depth on NS 35/15 | 97.5 mm | Color | blue (RAL 5015) |
| Flammability rating according to UL 94 | V0 | Insulating material group | I |
| Insulating material | PA | Result | Test passed |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K | Result | Test passed |
| Short-time withstand current 95 mm² | 11.4 kA | Result | Test passed |
| Test voltage setpoint | 2.2 kV | Result | Test passed |
| Open side panel | No | Result | Test passed |
| DIN rail/fixing support | NS 32/NS 35 | Result | Test passed |
| Rotation speed | 10 (+/- 2) rpm | Revolutions | 135 |
| Conductor cross section/weight | 25 mm² / 4.5 kg
35 mm² / 6.8 kg
95 mm²/14 kg | Result | Test passed |
| Time of exposure | 30 s | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Spectrum | Service life test category 2, bogie-mounted |
| Frequency | f | ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Pulse shape | Half-sine |
| Acceleration | 5g | Shock duration | 30 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
| Mounting type | NS 35/15
NS 32
NS 35/15-2,3 |
Specifications may be subject to change without notice
