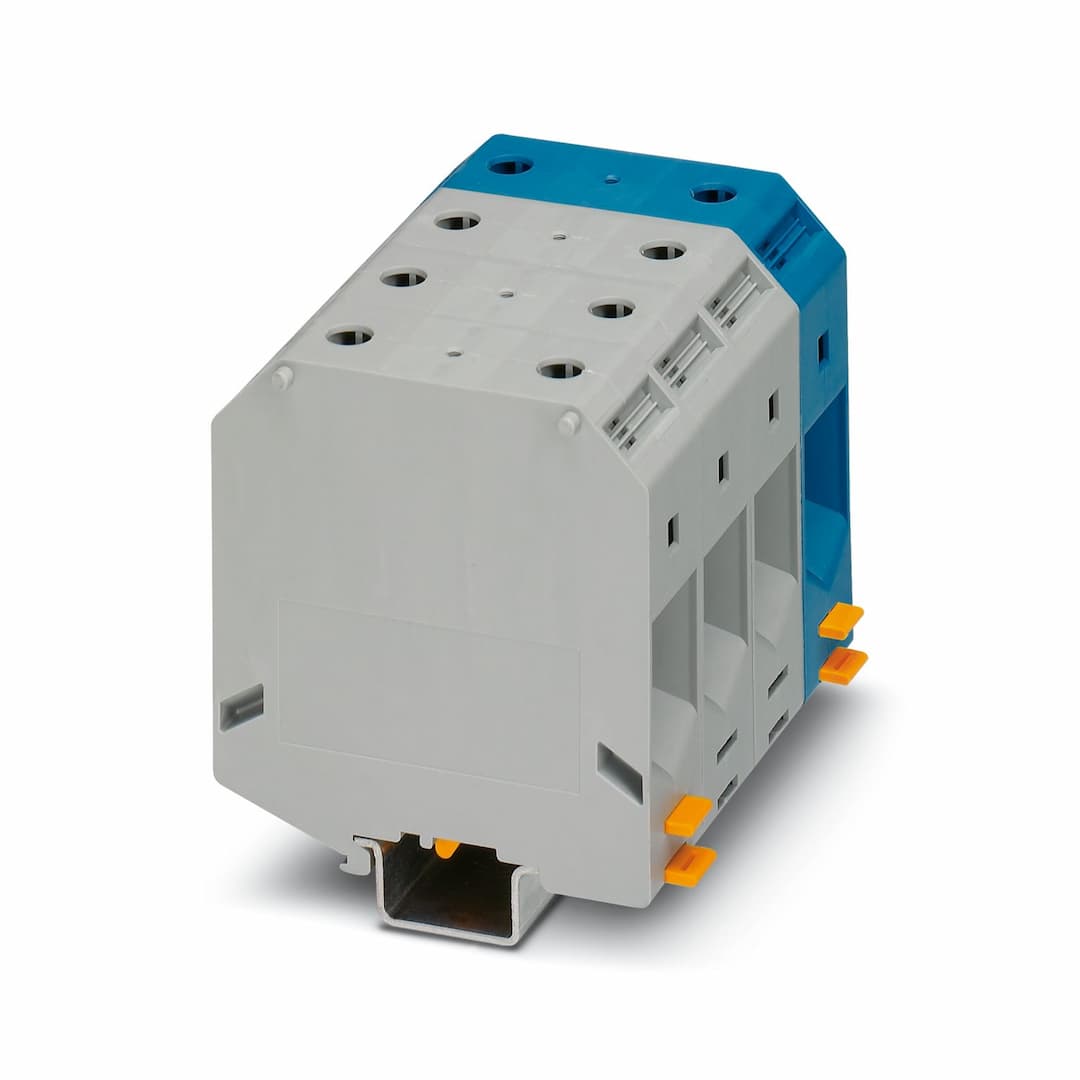

Product Model
UKH 95-3L/N
Key Features
- 1Reliable cable connection ensured by three-point centering of the conductor in the prismatic sleeve base.
- 2Low contact resistance due to ribbing on the contact surface for optimal performance.
- 3Screw locking by means of spring-loaded elements in the clamping part for secure connections.
- 4Compatible with various conductor cross sections from 25 mm² to 95 mm² and AWG 3 to 3/0.
- 5Meets high standards with a rated surge voltage of 8 kV and insulation material group I for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| General | Screws with hexagonal socket | Product type | High current terminal block |
| Number of positions | 4 | Number of connections | 8 |
| Number of rows | 1 | Potentials | 4 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 8 kV | Number of connections per level | 8 |
| Nominal cross section | 95 mm² | Screw thread | M8 |
| Note | Screws with hexagonal socket | Tightening torque | 15 ... 20 Nm |
| Stripping length | 33 mm | Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 25 mm² ... 95 mm² | Cross section AWG | 3 ... 3/0 (converted acc. to IEC) |
| Conductor cross section flexible | 35 mm² ... 95 mm² | Conductor cross section, flexible [AWG] | 2 ... 2/0 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 35 mm² ... 95 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 35 mm² ... 95 mm² |
| Cross-section with insertion bridge, rigid | 95 mm² | Cross-section with insertion bridge, flexible | 70 mm² |
| 2 conductors with same cross section, solid | 25 mm² ... 35 mm² | 2 conductors with same cross section, flexible | 25 mm² ... 35 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 16 mm² ... 35 mm² | Nominal current | 232 A |
| Maximum load current | 232 A | Nominal voltage | 1000 V |
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. | Nominal cross section | 95 mm² |
| Width | 100 mm | Height | 89.8 mm |
| Color | gray/blue | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Open side panel | No |
| Connection in acc. with standard | IEC 60947-7-1 | Mounting type | NS 35/15
NS 32 |
Specifications may be subject to change without notice
