Product Model

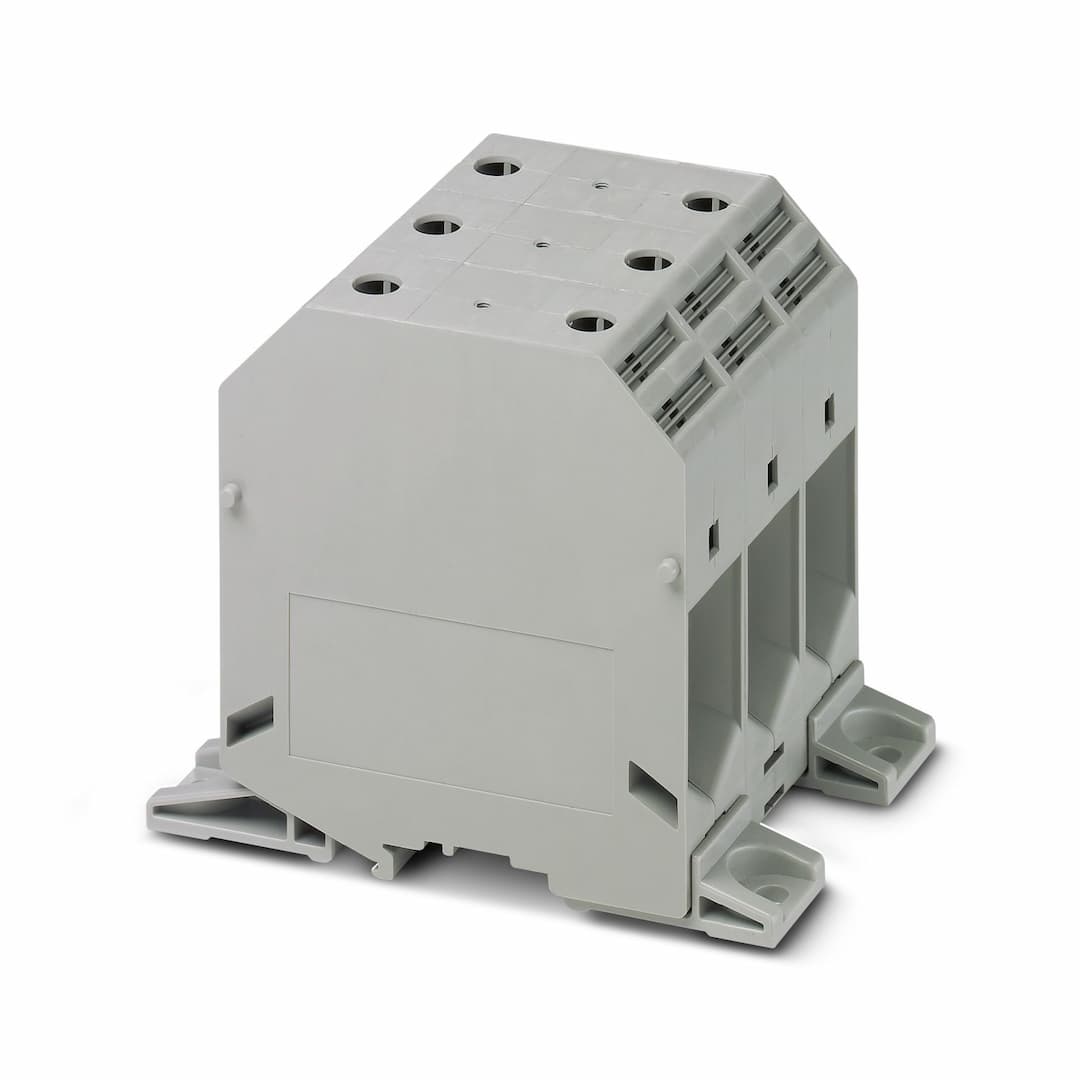

UKH 150-3L-F
Key Features
- 1High Current Handling: Supports up to 309 A with a 150 mm² conductor cross section.
- 2Durable Design: Ensures reliable cable connection with three-point centering and low contact resistance.
- 3Easy Installation: Features screw connection method with M10 screws and a tightening torque range of 25-30 Nm.
- 4Fire Protection: Meets fire protection standards for rail vehicles (DIN EN 45545-2) with a flammability rating of UL 94 V0.
- 5Versatile Compatibility: Compatible with conductors from 35 mm² to 150 mm² and AWG 2 to 300 kcmil.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | High current terminal block | Number of positions | 3 |
| Number of connections | 6 | Number of rows | 1 |
| Potentials | 3 | Overvoltage category | III |
| Degree of pollution | 3 | Rated surge voltage | 8 kV |
| Number of connections per level | 6 | Nominal cross section | 150 mm² |
| Screw thread | M10 | Note | Screws with hexagonal socket |
| Tightening torque | 25 ... 30 Nm | Stripping length | 40 mm |
| Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 35 mm² ... 150 mm² |
| Cross section AWG | 2 ... 300 kcmil (converted acc. to IEC) | Conductor cross section flexible | 50 mm² ... 150 mm² |
| Conductor cross section, flexible [AWG] | 1/0 ... 300 kcmil (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 50 mm² ... 150 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 50 mm² ... 150 mm² | Cross-section with insertion bridge, rigid | 150 mm² |
| Cross-section with insertion bridge, flexible | 120 mm² | 2 conductors with same cross section, solid | 25 mm² ... 50 mm² |
| 2 conductors with same cross section, flexible | 35 mm² ... 50 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 25 mm² ... 50 mm² |
| Nominal current | 309 A | Maximum load current | 309 A (with 150 mm² conductor cross section) |
| Nominal voltage | 1000 V | Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| Nominal cross section | 150 mm² | Width | 93 mm |
| Height | 111 mm | Color | gray |
| Flammability rating according to UL 94 | V0 | Insulating material group | I |
| Insulating material | PA | Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Open side panel | No | Connection in acc. with standard | IEC 60947-7-1 |
| Mounting type | direct screw connection |
