Phoenix ContactFeed-through terminal blocks, multi-conductor terminal blocks, and multi-level terminal blocks
Product Model

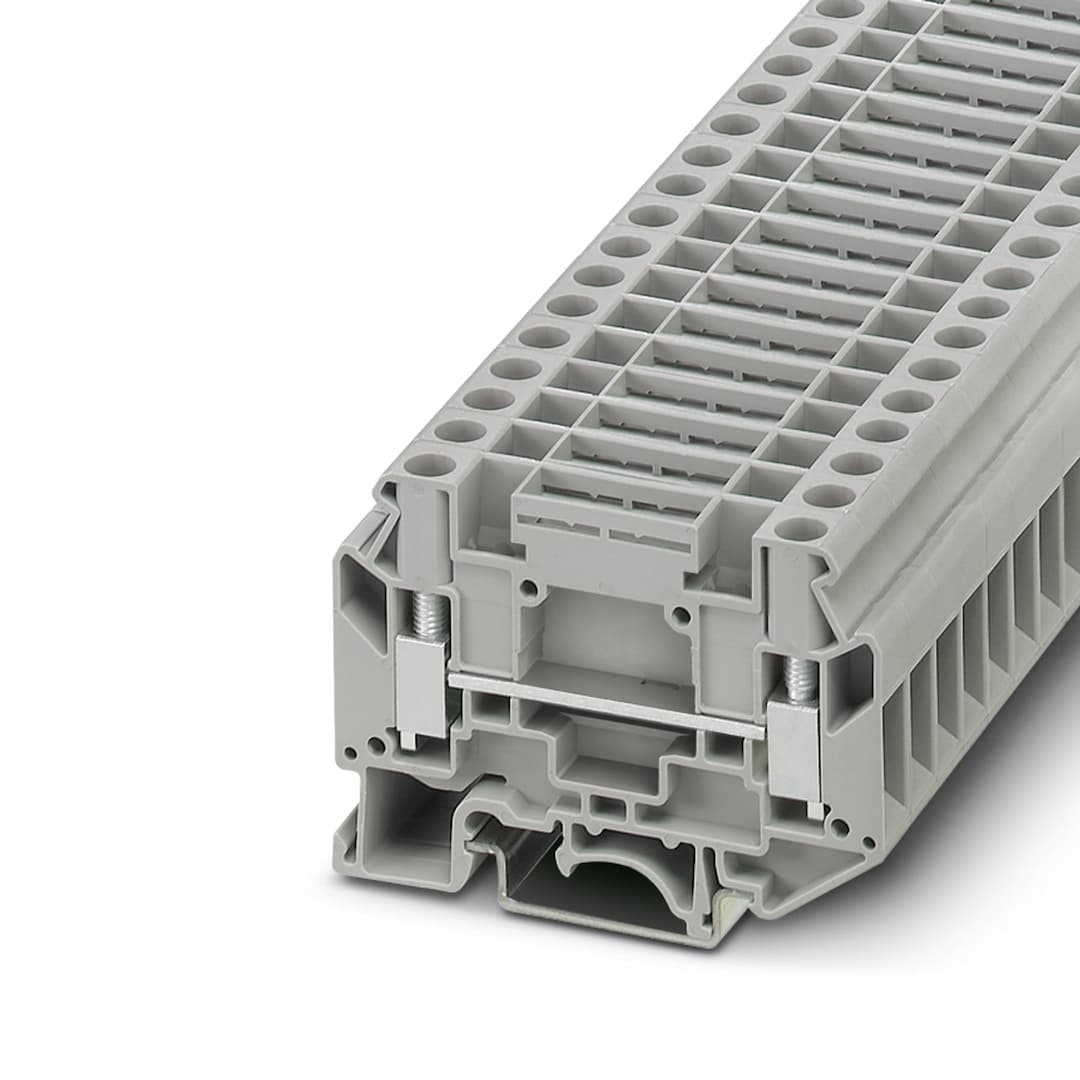

UKD 6
Key Features
- 1Durable Construction - Built with high-quality materials for long-lasting performance.
- 2Versatile Connectivity - Supports 24-8 AWG wire size and 2 positions for flexible configurations.
- 3High Current Rating - Rated for 57A, suitable for demanding industrial applications.
- 4Easy Installation - Features screw wire connection method for quick and secure setup.
- 5Compliance and Safety - RoHS compliant and lead-free, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Feed-through terminal block | Product family | UKD |
| Number of connections | 2 | Number of rows | 1 |
| Potentials | 1 | Article revision | 07 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 1.31 W |
| Number of connections per level | 2 | Nominal cross section | 6 mm² |
| Test socket torque | 0.6 | Screw thread | M4 |
| Tightening torque | 1.5 ... 1.6 Nm | Stripping length | 10 mm |
| Internal cylindrical gage | A5 | Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.5 mm² ... 10 mm² | Cross section AWG | 20 ... 8 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 20 ... 10 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 6 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 6 mm² |
| 2 conductors with same cross section, solid | 0.5 mm² ... 2.5 mm² | 2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 2.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 4 mm² |
| Nominal current | 41 A | Maximum load current | 57 A (with 10 mm² conductor cross section) |
| Nominal voltage | 800 V | Nominal cross section | 6 mm² |
| Width | 8.2 mm | End cover width | 2.2 mm |
| Height | 66.5 mm | Depth on NS 32 | 53 mm |
| Depth on NS 35/7,5 | 48 mm | Depth on NS 35/15 | 55.5 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Result | Test passed |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K | Result | Test passed |
| Short-time withstand current 6 mm² | 0.72 kA | Result | Test passed |
| Test voltage setpoint | 2 kV | Result | Test passed |
| Open side panel | Yes | Result | Test passed |
| DIN rail/fixing support | NS 32/NS 35 | Result | Test passed |
| Rotation speed | 10 rpm | Revolutions | 135 |
| Conductor cross section/weight | 0.5 mm² / 0.3 kg
6 mm² / 1.4 kg
10 mm² / 2 kg | Result | Test passed |
| Time of exposure | 30 s | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 | Spectrum | Service life test category 2, bogie-mounted |
| Frequency | f | ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Pulse shape | Half-sine |
| Acceleration | 30g | Shock duration | 18 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Connection in acc. with standard | IEC 60947-7-1 | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
