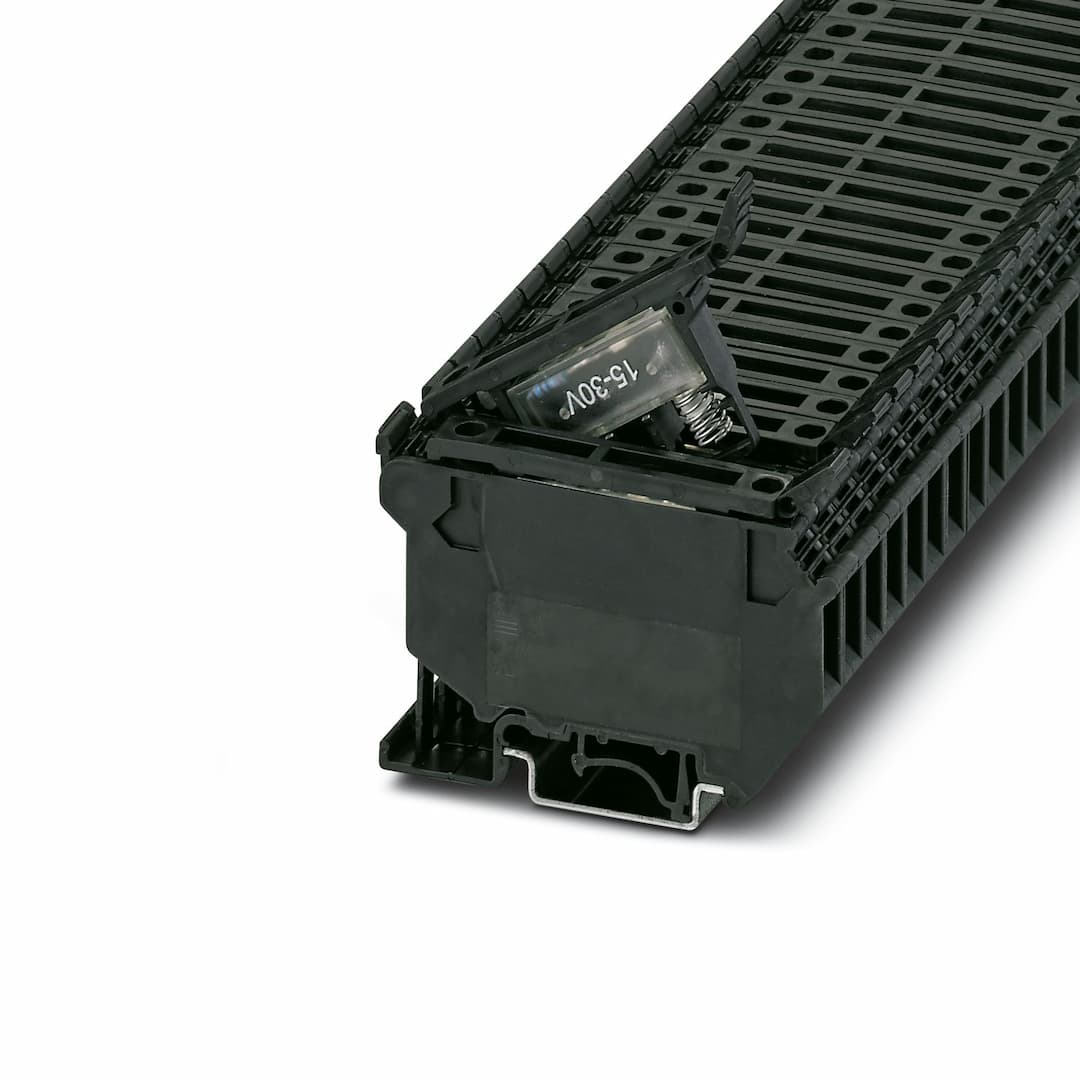

Product Model
UK 5-HESILED 24
Key Features
- 1Ensures reliable and safe electrical connections.
- 2Meets UL 94 V0 inflammability class for added safety.
- 3Simplifies installation with standard IEC 60947-7-3 compliance.
- 4Suitable for a wide range of electrical projects and systems.
- 5Built to withstand surge voltages up to 6 kV and pollution degree 3.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note regarding marking | For terminal marking, please use marking material with 8.2 mm pitch. | Note regarding marking | For lever marking, please use marking material with 6.2 mm pitch. |
| Notes on operation | The current is determined by the fuse used, the voltage by the selected LED. | Product type | Fuse terminal block |
| Number of positions | 1 | Number of connections | 2 |
| Number of rows | 1 | Potentials | 1 |
| Article revision | 12 | Overvoltage category | III |
| Degree of pollution | 3 | Fuse type | Glass / ceramics / ... |
| Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 1.02 W |
| Fuse | G / 5 x 20 / 5 x 25 / 5 x 30 | LED voltage range | 15 V AC/DC ... 30 V AC/DC |
| LED current range | 3.5 mA ... 8.1 mA | LED voltage range | 15 V AC/DC ... 30 V AC/DC |
| Number of connections per level | 2 | Nominal cross section | 4 mm² |
| Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
| Stripping length | 8 mm | Internal cylindrical gage | A4 |
| Connection in acc. with standard | IEC 60947-7-3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 4 mm² | Cross-section with insertion bridge, rigid | 4 mm² |
| Cross-section with insertion bridge, flexible | 4 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² | Nominal current | 6.3 A |
| Maximum load current | 6.3 A (the current is determined by the fuse used) | Nominal voltage | 24 V |
| Nominal cross section | 1 mm² | Connection in acc. with standard | IEC 60947-7-3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 4 mm² | Cross-section with insertion bridge, rigid | 4 mm² |
| Cross-section with insertion bridge, flexible | 4 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² | Nominal current | 6.3 A |
| Maximum load current | 6.3 A | Nominal voltage | 800 V (As a disconnect terminal block) |
| Width | 8.2 mm | Height | 72.5 mm |
| Depth on NS 32 | 61.5 mm | Depth on NS 35/7,5 | 56.5 mm |
| Depth on NS 35/15 | 64 mm | Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 | Insulating material group | I |
| Insulating material | PA | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C | Open side panel | No |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Spectrum | Service life test category 1, class B, body mounted |
| Frequency | f | ASD level | 1.857 (m/s²)²/Hz |
| Acceleration | 0.8g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Pulse shape | Half-sine |
| Acceleration | 5g | Shock duration | 30 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-3
IEC 60947-7-3 |
| Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
