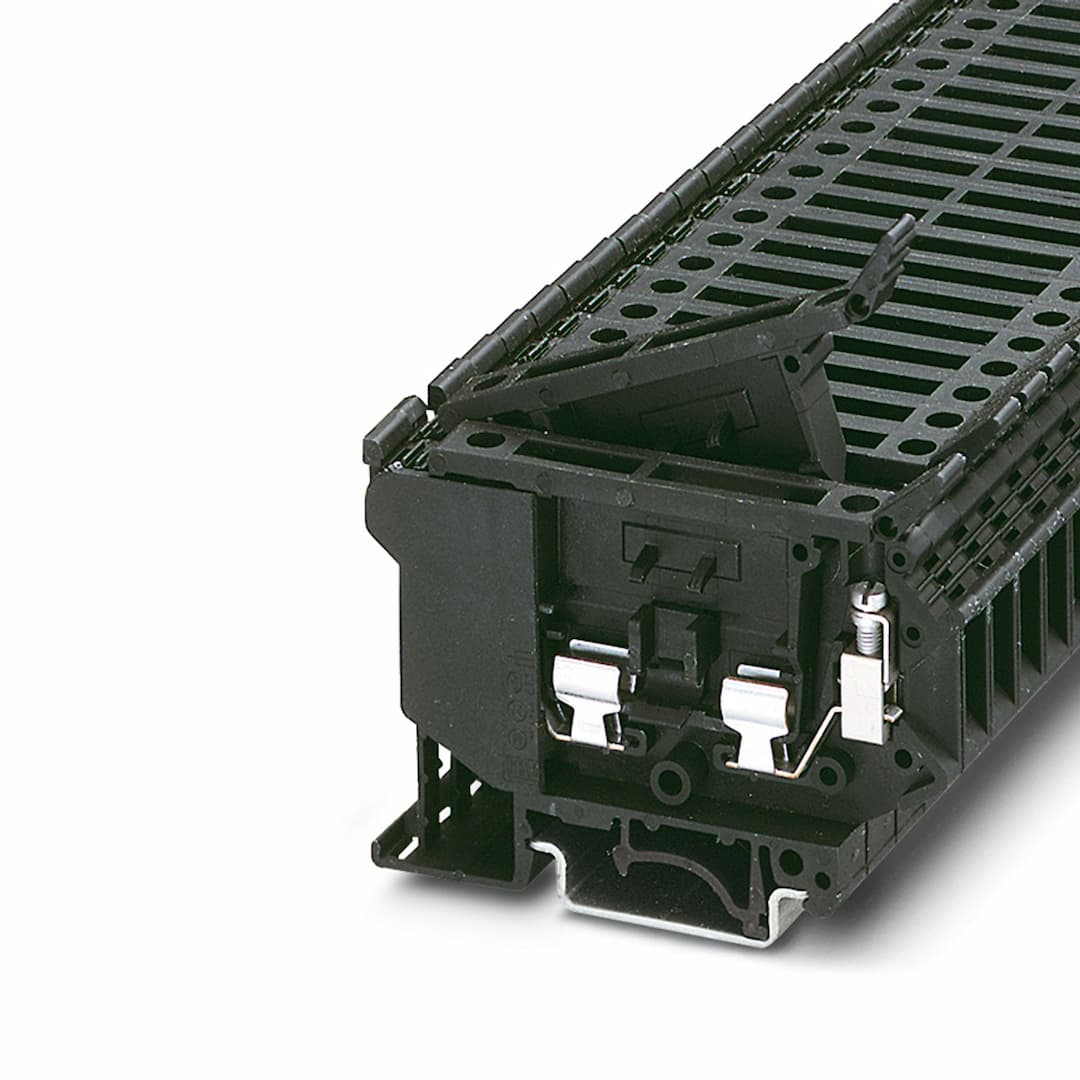

Product Model
UK 5-HESI GY
Key Features
- 1High-Quality DIN Rail Mounting: Designed for easy installation on DIN rails.
- 2Screw Termination: Securely connects cables with screw termination.
- 3Fused for Safety: Ensures electrical safety with a built-in fuse.
- 4Voltage Rating: Supports up to 500V for reliable operation.
- 5Current Rating: Handles a maximum current of 6.3A for efficient power distribution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note regarding marking | For terminal marking, please use marking material with 8.2 mm pitch. | Note regarding marking | For lever marking, please use marking material with 6.2 mm pitch. |
| Product type | Fuse terminal block | Number of positions | 1 |
| Number of connections | 2 | Number of rows | 1 |
| Potentials | 1 | Article revision | 08 |
| Overvoltage category | III | Degree of pollution | 3 |
| Fuse type | Glass / ceramics / ... | Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.02 W | Fuse | G / 5 x 20 / 5 x 25 / 5 x 30 |
| Number of connections per level | 2 | Nominal cross section | 4 mm² |
| Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
| Stripping length | 8 mm | Internal cylindrical gage | A4 |
| Connection in acc. with standard | IEC 60947-7-3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 4 mm² | Cross-section with insertion bridge, rigid | 4 mm² |
| Cross-section with insertion bridge, flexible | 4 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² | Nominal current | 6.3 A |
| Maximum load current | 6.3 A | Nominal voltage | 800 V (As a fuse terminal block) |
| Nominal cross section | 1 mm² | Connection in acc. with standard | IEC 60947-7-3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 4 mm² | Cross-section with insertion bridge, rigid | 4 mm² |
| Cross-section with insertion bridge, flexible | 4 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² | Nominal current | 6.3 A |
| Maximum load current | 6.3 A | Nominal voltage | 800 V (As a disconnect terminal block) |
| Nominal cross section | 1 mm² | Width | 8.2 mm |
| Height | 72.5 mm | Depth on NS 32 | 61.5 mm |
| Depth on NS 35/7,5 | 56.5 mm | Depth on NS 35/15 | 64 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Open side panel | No |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Spectrum | Service life test category 1, class B, body mounted |
| Frequency | f | ASD level | 1.857 (m/s²)²/Hz |
| Acceleration | 0.8g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Pulse shape | Half-sine |
| Acceleration | 5g | Shock duration | 30 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-3
IEC 60947-7-3 |
| Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
