Product Model
UK 3-RETURN
Key Features

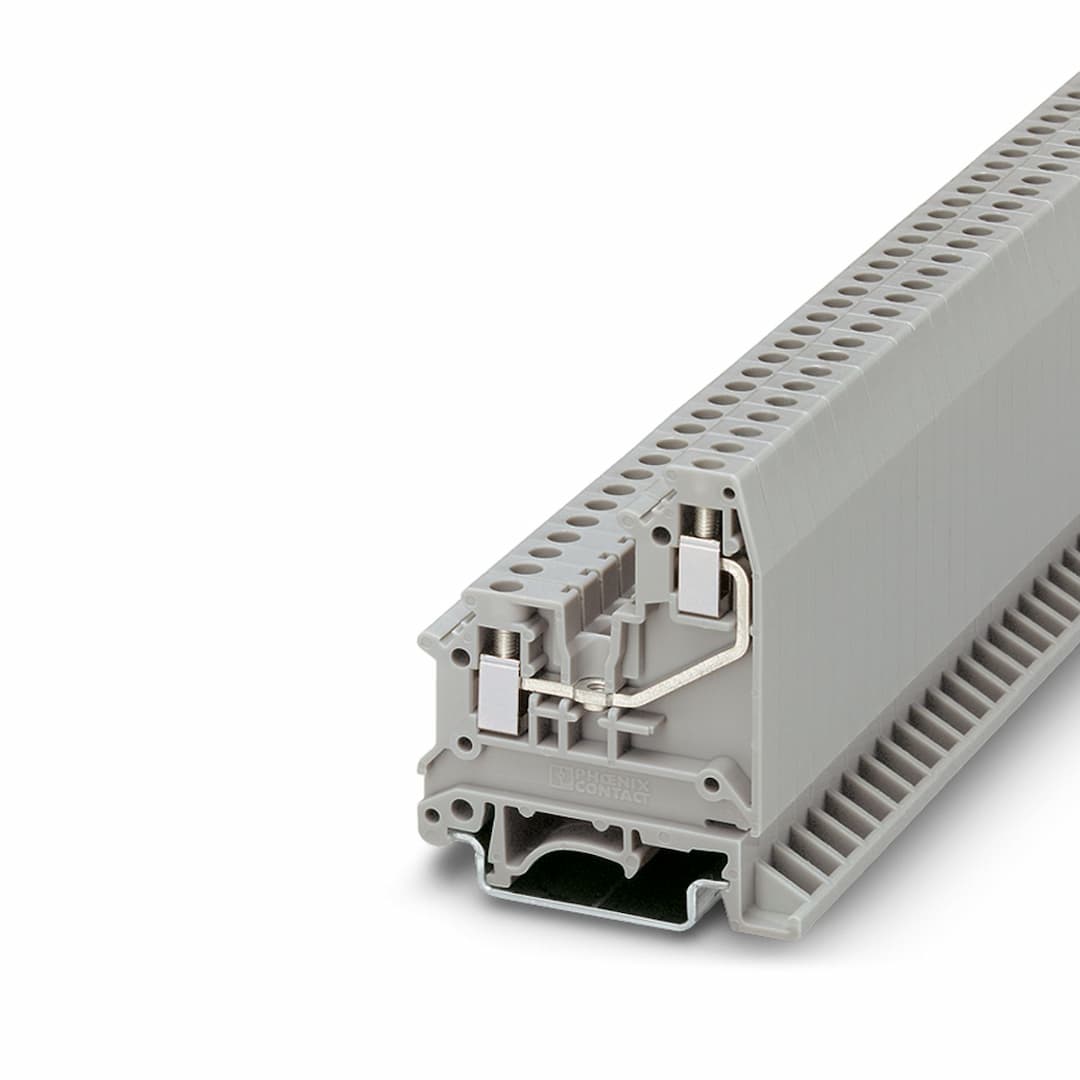

- 1New and Not Grounded: The Phoenix Contact 3002513 is a new, non-grounded feed-through terminal block.
- 2High Voltage Rating: Designed for 500V with a maximum rating of 32A.
- 3Compact Design: Features a compact screw connection with 2 levels at 5.2 mm.
- 4Easy Installation: Ideal for applications requiring quick and secure connections.
- 5Affordable Pricing: Available at a discounted price of $3.90 per unit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Feed-through terminal block | Number of connections | 2 |
| Number of rows | 2 | Potentials | 1 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 6 kV | Number of connections per level | 2 |
| Nominal cross section | 2.5 mm² | Rated cross section AWG | 12 |
| Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
| Stripping length | 8 mm | Connection in acc. with standard | IEC / EN |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 1.5 mm² | Cross-section with insertion bridge, rigid | 4 mm² |
| Cross-section with insertion bridge, flexible | 2.5 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² | Nominal current | 32 A |
| Maximum load current | 32 A (with 4 mm² conductor cross section) | Nominal voltage | 500 V |
| Connection in acc. with standard | UL | Cross section AWG | 30 ... 12 (converted acc. to IEC) |
| Nominal current | 20 A | Nominal voltage | 300 V |
| Connection in acc. with standard | CSA | Nominal current | 25 A |
| Nominal voltage | 300 V | Width | 5.2 mm |
| Color | gray | Flammability rating according to UL 94 | V2 |
| Insulating material group | I | Insulating material | PA |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Test voltage setpoint | 7.3 kV | Result | Test passed |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K | Result | Test passed |
| Short-time withstand current 2.5 mm² | 0.3 kA | Short-time withstand current 4 mm² | 0.48 kA |
| Result | Test passed | Result | Test passed |
| Open side panel | Yes | Result | Test passed |
| DIN rail/fixing support | NS 32/NS 35 | Test force setpoint | 1 N |
| Result | Test passed | Rotation speed | 10 rpm |
| Revolutions | 135 | Conductor cross section/weight | 0.2 mm² / 0.2 kg
2.5 mm² / 0.7 kg
4 mm² / 0.9 kg |
| Result | Test passed | Time of exposure | 30 s |
| Result | Test passed | Connection in acc. with standard | IEC / EN
UL
CSA |
| Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
