Phoenix ContactFeed-through terminal blocks, multi-conductor terminal blocks, and multi-level terminal blocks
Product Model

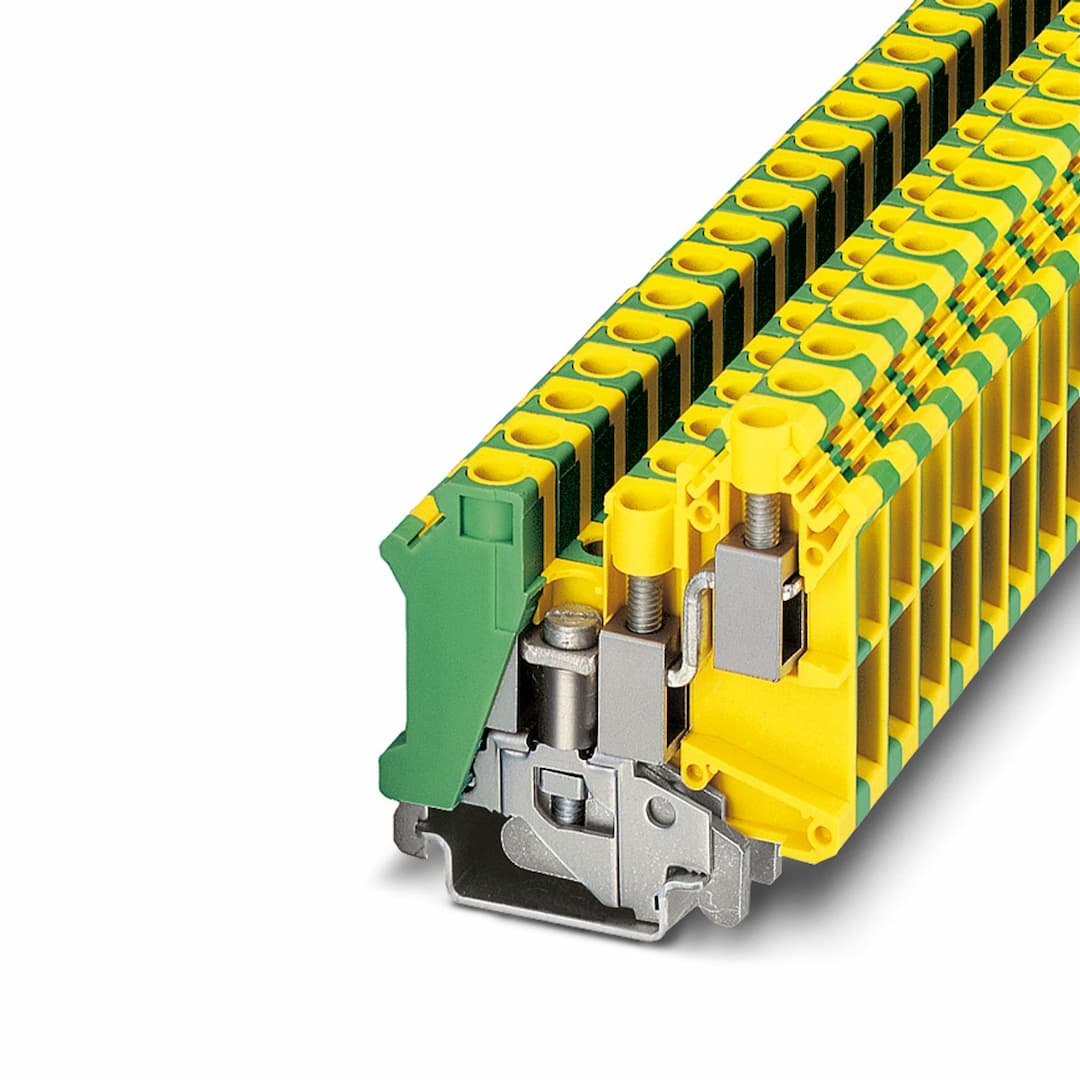

UK 10-TWIN-PE
Key Features
- 1High-quality construction: Durable and reliable for long-term use.
- 2Easy installation: Screw connection for quick and simple setup.
- 3Grounded and fused: Green-yellow color indicates grounding, ensuring safety.
- 4Versatile design: Double-level terminal block for multiple connection options.
- 5Compliant with standards: Meets industry standards for electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | The max. load current must not be exceeded by the total current of all connected conductors. | Product type | Ground terminal block |
| Number of connections | 3 | Number of rows | 2 |
| Article revision | 11 | Overvoltage category | III |
| Degree of pollution | 3 | Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.82 W | Grounding foot | Yes |
| Number of connections per level | 3 | Nominal cross section | 10 mm² |
| Screw thread | M4 | Note | Please observe the current carrying capacity of the DIN rails. |
| Tightening torque | 1.5 ... 1.8 Nm | Stripping length | 11 mm |
| Internal cylindrical gage | A6 | Connection in acc. with standard | IEC 60947-7-2 |
| Conductor cross section rigid | 0.5 mm² ... 16 mm² | Cross section AWG | 20 ... 6 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 10 mm² | Conductor cross section, flexible [AWG] | 20 ... 8 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 6 mm² |
| Nominal cross section | 10 mm² | Width | 10.2 mm |
| Height | 56.5 mm | Depth on NS 32 | 64 mm |
| Depth on NS 35/7,5 | 59 mm | Depth on NS 35/15 | 66.5 mm |
| Color | green-yellow | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Terminal block mounting | 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) |
| Open side panel | No | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
| Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
| ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
| Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
| Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
| Pulse shape | Half-sine | Acceleration | 5g |
| Shock duration | 30 ms | Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) | Result | Test passed |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Connection in acc. with standard | IEC 60947-7-2 | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
| Terminal block mounting | 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) |
Specifications may be subject to change without notice
