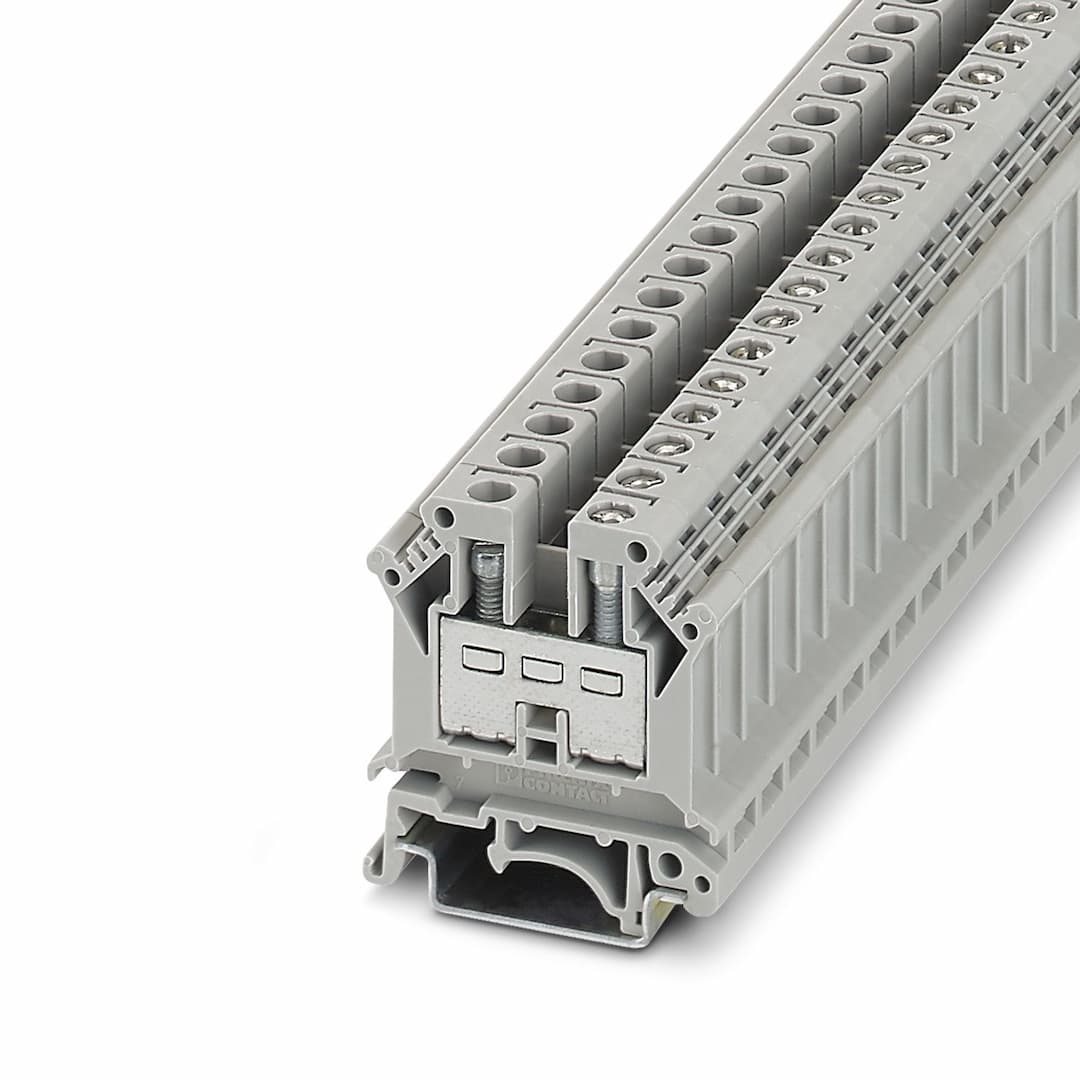

UK 10-PR

Manufacturer

Phoenix Contact

Key Features

1Compact and efficient design for easy installation.
2Secure and reliable screw termination method.
3Supports up to 800V, suitable for demanding industrial environments.
4Handles up to 57A, ensuring reliable power distribution.
5Made from high-quality PA insulating material for long-lasting performance.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Feed-through terminal block	Number of connections	2
Number of rows	1	Article revision	02
Overvoltage category	III	Degree of pollution	3
Rated surge voltage	5 kV	Maximum power dissipation for nominal condition	1.31 W
Number of connections per level	2	Screw thread	M4
Tightening torque	1.5 ... 1.8 Nm	Stripping length	10 mm
Internal cylindrical gage	A5	Connection in acc. with standard	IEC / EN
Conductor cross section rigid	0.5 mm² ... 10 mm²	Cross section AWG	20 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.5 mm² ... 6 mm²	Conductor cross section, flexible [AWG]	20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 6 mm²	Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 4 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)	0.5 mm² ... 4 mm²	Cross-section with insertion bridge, rigid	6 mm²
Cross-section with insertion bridge, flexible	6 mm²	2 conductors with same cross section, solid	0.5 mm² ... 2.5 mm²
2 conductors with same cross section, flexible	0.5 mm² ... 2.5 mm²	2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.5 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 4 mm²	Nominal current	41 A
Maximum load current	57 A (with 10 mm² conductor cross section)	Nominal voltage	400 V
Nominal cross section	6 mm²	Width	8.2 mm
End cover width	1.8 mm	Height	42.5 mm
Depth on NS 32	52 mm	Depth on NS 35/7,5	47 mm
Depth on NS 35/15	54.5 mm	Color	gray (RAL 7042)
Flammability rating according to UL 94	V0	Insulating material group	I
Insulating material	PA	Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C	Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3	Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3	Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg	Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed	Smoke gas toxicity NFPA 130 (SMP 800C)	passed
Result	Test passed	Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed	Short-time withstand current 6 mm²	0.72 kA
Result	Test passed	Test voltage setpoint	1.89 kV
Result	Test passed	Open side panel	Yes
Result	Test passed	DIN rail/fixing support	NS 32/NS 35
Test force setpoint	5 N	Result	Test passed
Rotation speed	10 (+/- 2) rpm	Revolutions	135
Conductor cross section/weight	0.5 mm² / 0.3 kg 6 mm² / 1.4 kg 10 mm² / 2 kg	Result	Test passed
Time of exposure	30 s	Result	Test passed
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)	Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C	Permissible humidity (storage/transport)	30 % ... 70 %
Connection in acc. with standard	IEC / EN	Mounting type	NS 32 NS 35/7,5 NS 35/15

Specifications may be subject to change without notice
