Product Model

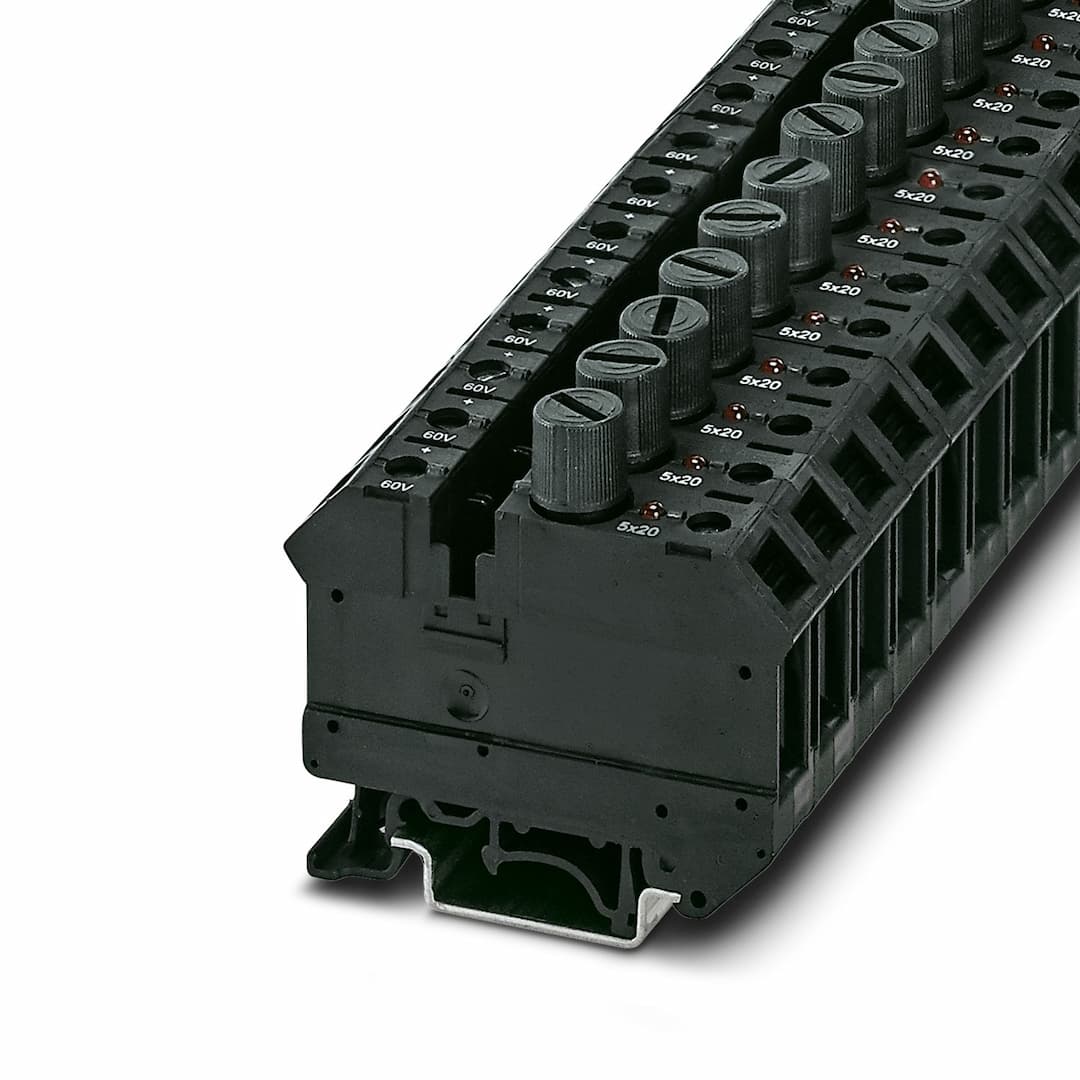

UK 10-DREHSILED 60 (5X20)
Key Features
- 1Built with durable materials for long-lasting performance.
- 2Screw termination for quick and secure connections.
- 3Provides an additional layer of safety with integrated fuses.
- 4Measuring 12 mm in width and 62 mm in height, perfect for DIN rail mounting.
- 5Suitable for a variety of electrical applications, including industrial and commercial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Fuse terminal block | Number of connections | 2 |
| Number of rows | 1 | Potentials | 1 |
| Article revision | 11 | Overvoltage category | III |
| Degree of pollution | 3 | Fuse type | Glass / ceramics / ... |
| Rated surge voltage | 4 kV | Maximum power dissipation for nominal condition | 2.43 W |
| Fuse | G / 5 x 20 | LED voltage range | 30 V AC/DC ... 60 V AC/DC |
| LED current range | 0.8 mA ... 2 mA | LED voltage range | 30 V AC/DC ... 60 V AC/DC |
| Number of connections per level | 2 | Nominal cross section | 16 mm² |
| Screw thread | M4 | Tightening torque | 1.5 ... 1.8 Nm |
| Stripping length | 11 mm | Internal cylindrical gage | B6 |
| Connection in acc. with standard | IEC 60947-7-3 | Conductor cross section rigid | 0.5 mm² ... 16 mm² |
| Cross section AWG | 20 ... 6 (converted acc. to IEC) | Conductor cross section flexible | 0.5 mm² ... 16 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 6 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² | Cross-section with insertion bridge, rigid | 10 mm² |
| Cross-section with insertion bridge, flexible | 10 mm² | 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 10 mm² | Nominal current | 10 A |
| Maximum load current | 10 A | Nominal voltage | 500 V
800 V (As a disconnect terminal block) |
| Nominal cross section | 1.5 mm² | Width | 12 mm |
| Height | 62 mm | Depth on NS 32 | 62.2 mm |
| Depth on NS 35/7,5 | 57.2 mm | Depth on NS 35/15 | 64.7 mm |
| Color | black (RAL 9005) | Flammability rating according to UL 94 | V2 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Open side panel | No |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Spectrum | Service life test category 1, class B, body mounted |
| Frequency | f | ASD level | 1.857 (m/s²)²/Hz |
| Acceleration | 0.8g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Pulse shape | Half-sine |
| Acceleration | 5g | Shock duration | 30 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-3 |
| Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
