Product Model

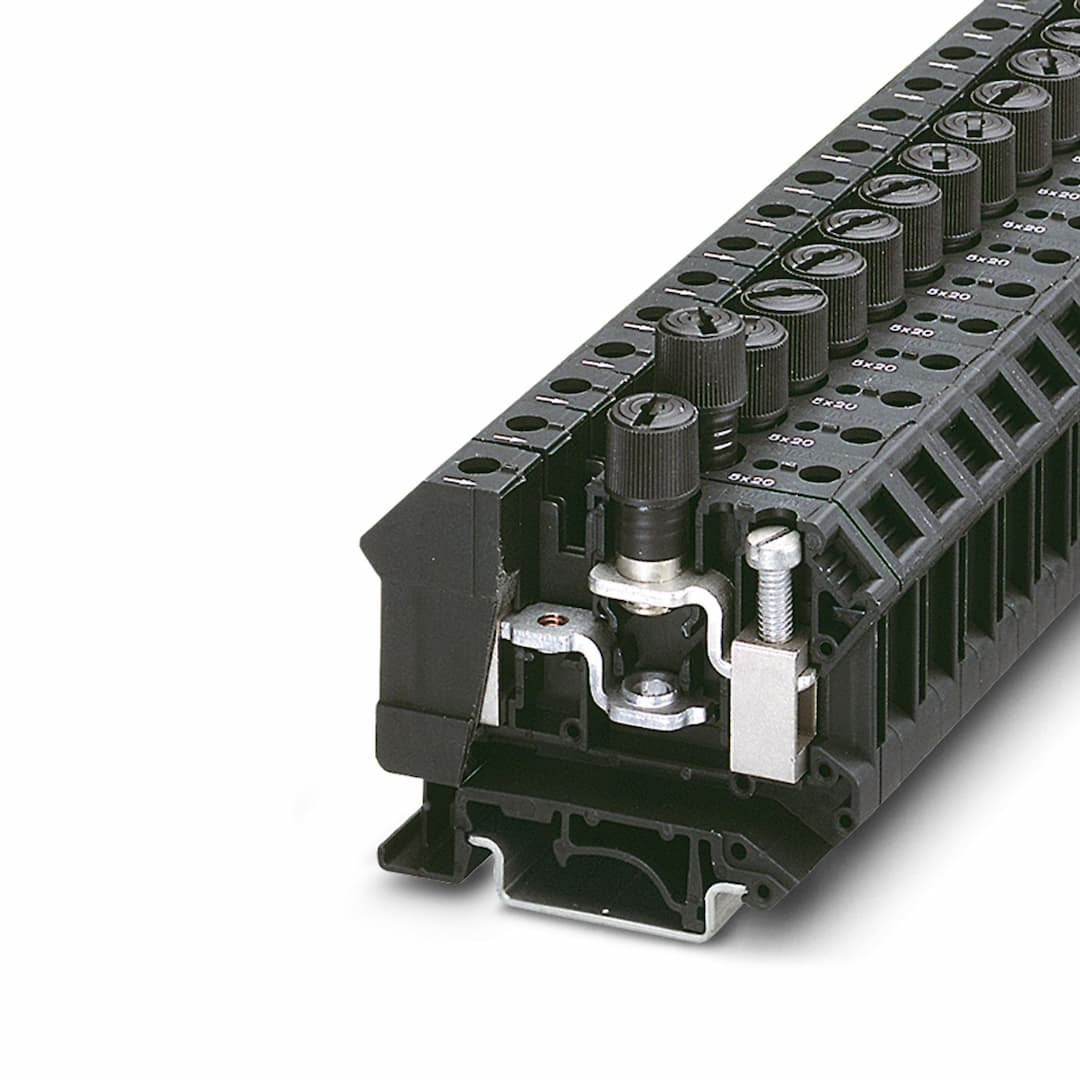

UK 10-DREHSI-EX (6,3X32)
Key Features
- 1Highly Versatile: Suitable for various conductor cross sections from 0.5 to 16 mm².
- 2Durable Construction: Made with PA insulating material and meets UL 94 V2 flammability rating.
- 3Robust Connectivity: Features screw connection with a stripping length of 11 mm and internal cylindrical gage B6.
- 4Comprehensive Certifications: Meets CSA, cULus, EAC, and REACH standards for global compatibility.
- 5Easy Installation: Snap-in design with a mounting rail for secure placement on DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Fuse terminal block | Number of connections | 2 |
| Number of rows | 1 | Potentials | 1 |
| Article revision | 08 | Overvoltage category | III |
| Degree of pollution | 3 | Fuse type | Glass / ceramics / ... |
| Rated surge voltage | 4 kV | Maximum power dissipation for nominal condition | 2.43 W |
| Fuse | G / 6,3 x 32 | Number of connections per level | 2 |
| Nominal cross section | 16 mm² | Screw thread | M4 |
| Tightening torque | 1.5 ... 1.8 Nm | Stripping length | 11 mm |
| Internal cylindrical gage | B6 | Connection in acc. with standard | IEC 60947-7-3 |
| Conductor cross section rigid | 0.5 mm² ... 16 mm² | Cross section AWG | 20 ... 6 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 16 mm² | Conductor cross section, flexible [AWG] | 20 ... 6 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² |
| Cross-section with insertion bridge, rigid | 10 mm² | Cross-section with insertion bridge, flexible | 10 mm² |
| 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 4 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 10 mm² |
| Nominal current | 10 A | Maximum load current | 10 A |
| Nominal voltage | 400 V
800 V (As a disconnect terminal block) | Nominal cross section | 1.5 mm² |
| Identification | II 3 G Ex ec IIC Gc | Operating temperature range | -50 °C ... 125 °C |
| Ex-certified accessories | 1205066 SZS 1,0X4,0 VDE
1201442 E/UK | Rated voltage | 275 V |
| Rated insulation voltage | 250 V | output | (Permanent) |
| Rated current | 10 A | Maximum load current | 10 A |
| Torque range | 1.5 Nm ... 1.8 Nm | Nominal cross section | 16 mm² |
| Rated cross section AWG | 6 | Connection capacity rigid | 0.5 mm² ... 16 mm² |
| Connection capacity AWG | 20 ... 6 | Connection capacity flexible | 0.5 mm² ... 16 mm² |
| Connection capacity AWG | 20 ... 6 | 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² |
| 2 conductors with the same cross-section AWG rigid | 20 ... 10 | 2 conductors with same cross section, stranded | 0.5 mm² ... 4 mm² |
| 2 conductors with the same cross-section AWG flexible | 20 ... 10 | Width | 12 mm |
| Height | 62 mm | Depth on NS 32 | 62.2 mm |
| Depth on NS 35/7,5 | 57.2 mm | Depth on NS 35/15 | 64.7 mm |
| Color | black (RAL 9005) | Flammability rating according to UL 94 | V2 |
| Insulating material group | I | Insulating material | PA |
| Open side panel | No | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-3 |
| Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
