Product Model

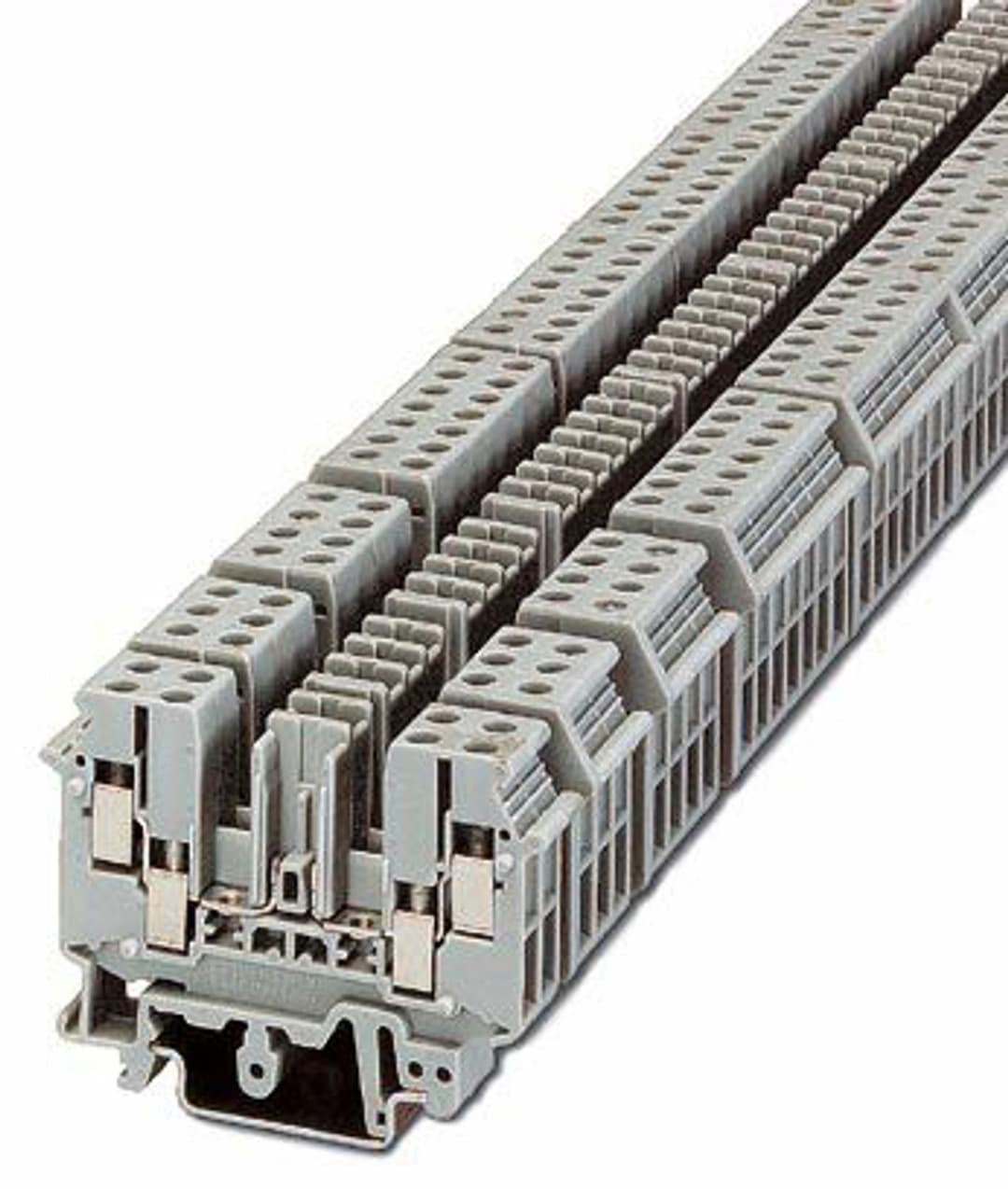

UDK-RELG 3
Key Features
- 1Constructed with high-quality PA insulating material for long-lasting performance.
- 2Supports test connections on both sides and double connections with the same potential for NS 32 and NS 35/7.5 DIN rail.
- 3Meets CUL and REACh SVHC standards, ensuring environmental product compliance.
- 4Handles nominal current up to 16 A, determined by the coupling connector.
- 5Features screw connection method with a stripping length of 7 mm for straightforward mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay socket | Number of positions | 3 |
| Article revision | 03 | Nominal voltage U | 400 V (voltage is determined by the coupling connector.) |
| Nominal current I | 16 A (current is determined by the coupling connector.) | Connection method | Screw connection |
| Stripping length | 7 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 | Width | 20.8 mm (with cover) |
| Height | 63.6 mm | Depth | 113 mm |
| Color | gray (RAL 7042) | Insulating material | PA |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Specifications may be subject to change without notice
